| Prod Model: |
D2N-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
400ton |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

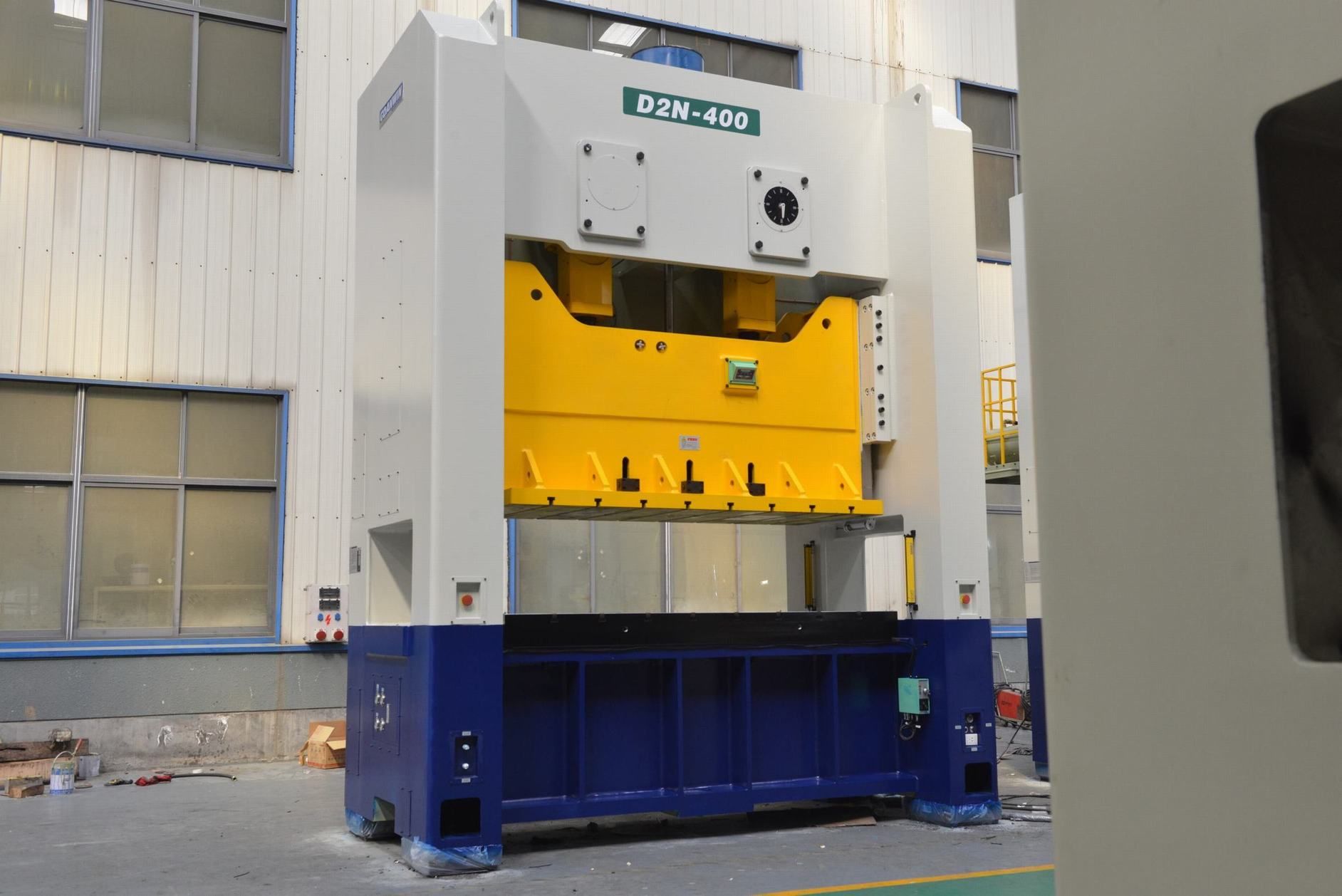

400ton H-Type Double Crank Power Press are widely used in precision electronics, communications, computers, household appliances, auto parts, motors and other small precision parts stamping.
Features:·The super rigid steel frame minimizes deflection, prolongs die life.
·Low noise & vibration
·Hydraulic overload protector is equiped as a standard feature to cause emergency stop instantly to ensure maximum protection for the press and die.
·Excellent resistant capacity for offset load to the slide.
·Six-point long guiding gibs, ensuring high precision.
·Multi-function micro-computer control system.
Standard accessories:Inverter
Touch pad
Preset counter
Electrical cam
Hydraulic over-load protectort
Silde adjust device
Die height indicatot
Balance device
Crank angle indicator
Electric stroke counter
Air source receptacle
Against over-run safety device
Misfeed detection consent
Power supply
Maintenance tool box
Operation Manual
Optional accessories:Electrical automatic lubrication system
pneumatic die cushion device
Foot switch
Quick die change device(die lifter, clamp and die arm sepjes)
Slide knock-out device
Die room light
Anti vibration press mount
Photo-electronic safety device
Feeder
Uncoiler
Leveler
Mechanism hand

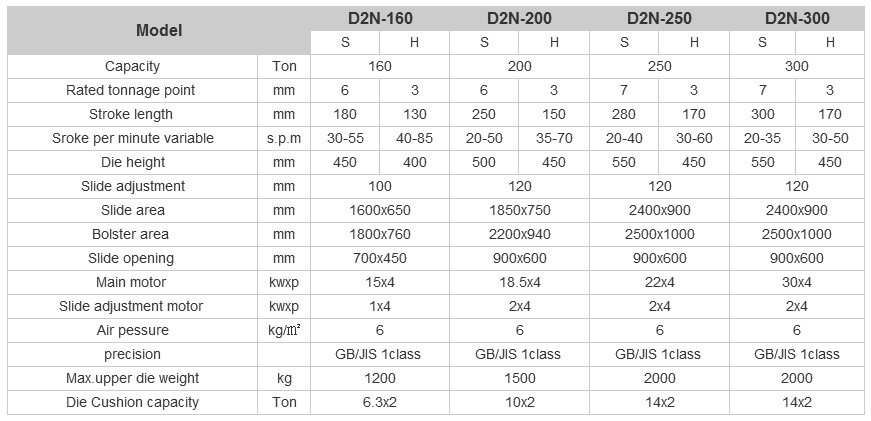

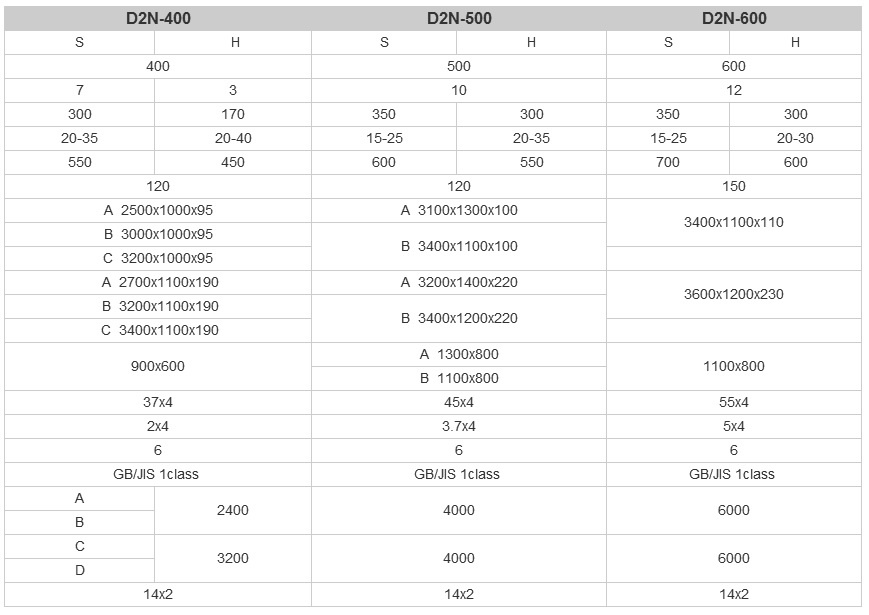

Specification

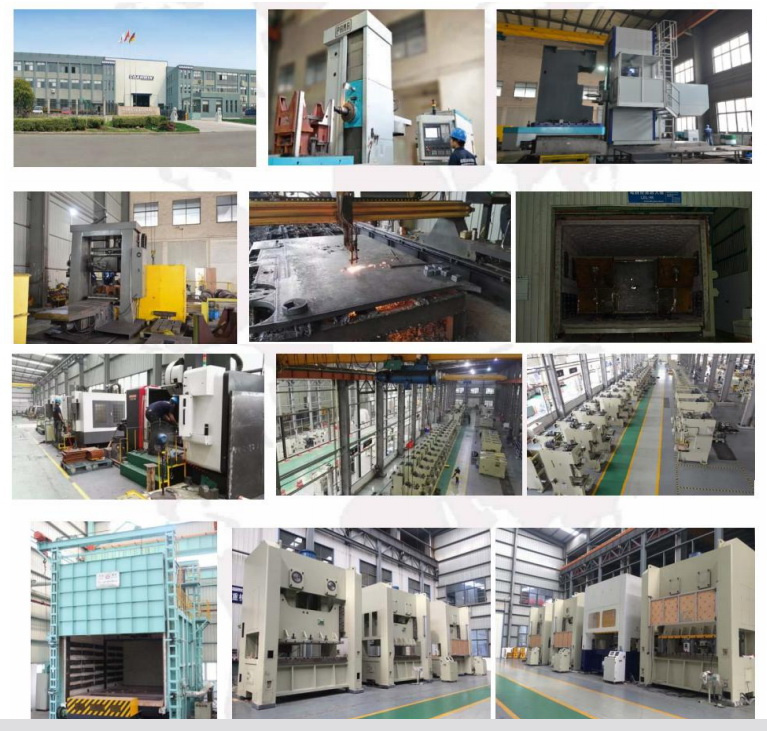

Workshop

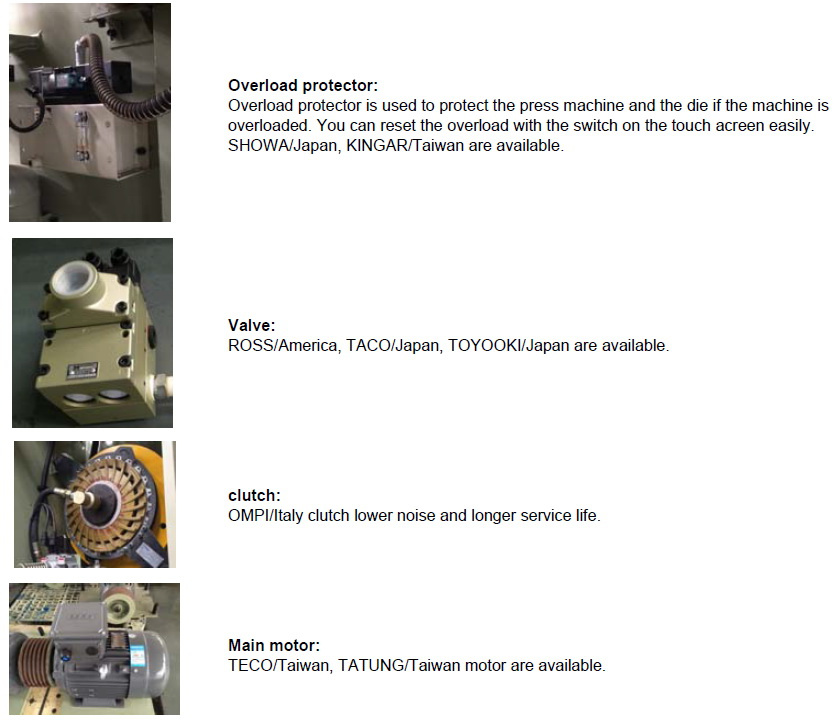

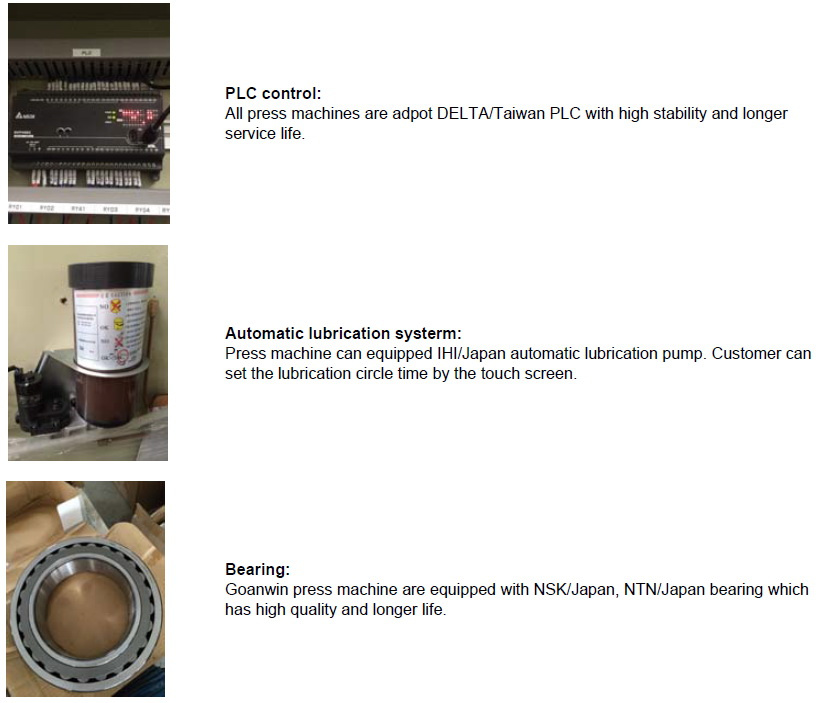

Main components
Certificates
Guaranty & Service
1. Guaranty period
One year
2. Guaranty covers
Main parts of the machine, wearing parts excluded.
3. Parts delivery
Within 3working days by TNT
4. Technical support
Technical support via email or video, technicians available for overseas service with reasonable additional costs
5. Installation & commissioning
Seller can dispatch technicians to do installation & commissioning, technician costs will be on buyer's sideContact GoanwinNingBo Goanwin Machinery Manufacturing Co., Ltd.
