| Prod Model: |
JW36-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity Range: |
400ton |
| Power: |
380V/50Hz/3phase |
| Clutch Type: |
Oil Bath Wet Type Pneumatic Clutch |
| Overload Protected System: |
Hydraulic Pump |
| Lubircation System: |
Auto Grease Center Lubrication |
| Control: |
PLC |
| Frame: |
H Frame Steel Welded |
| Slide Guide: |
8 Faces Higher Precision |
| Options: |
Light Curtain, Inverter, Uncoiler, Feeder |
| Warranty: |
One Year |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

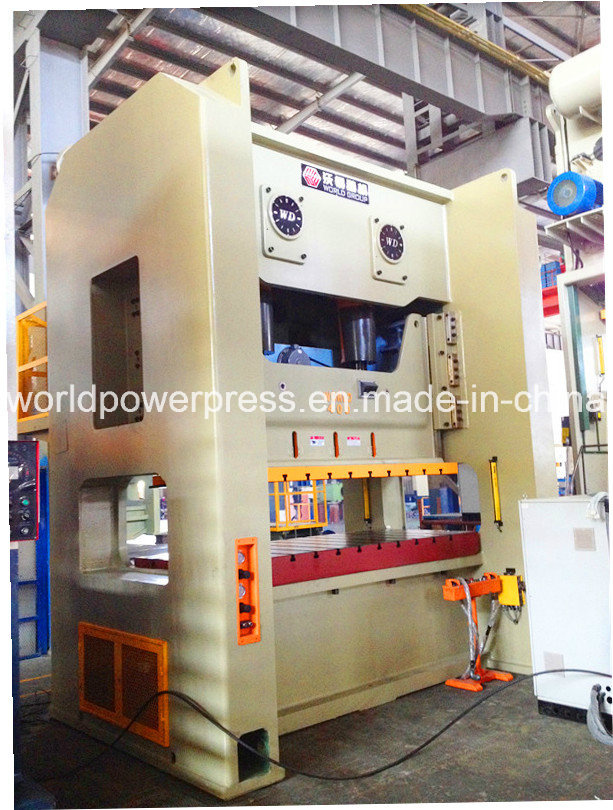

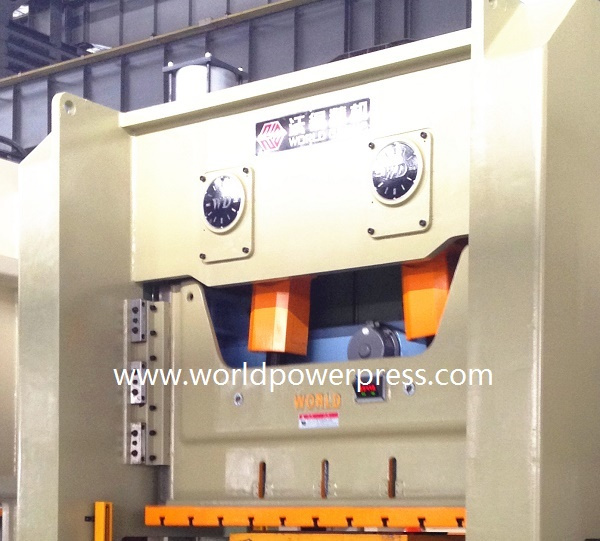

400ton straight side h frame metal forming power press
Features:
1. Steel welded body, heat treatment;
2. Wet clutch, hydraulic overload protector;
3. Double crankshaft,
4. Quadranglar eight surfaces guideway;
5. Auto lubrication, electric die adjustment;
6. PLC control.
Details

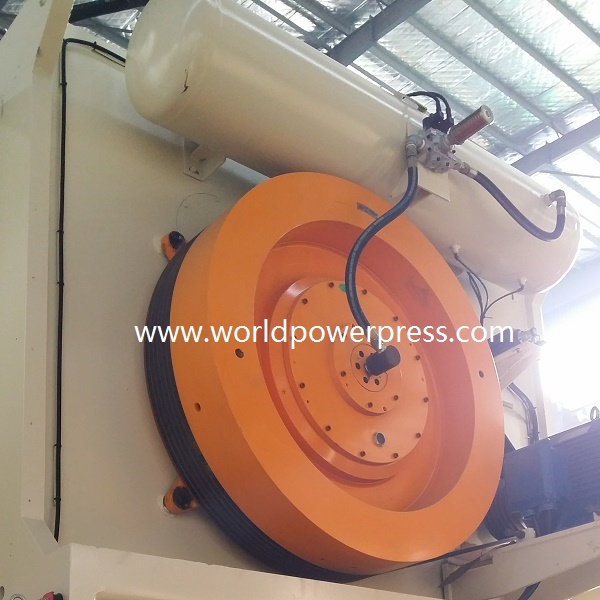

1) Wet type pneumatic clutch and brake, lower noise and longer service life. High quality seals ensure to prohibit the oil leak problem.

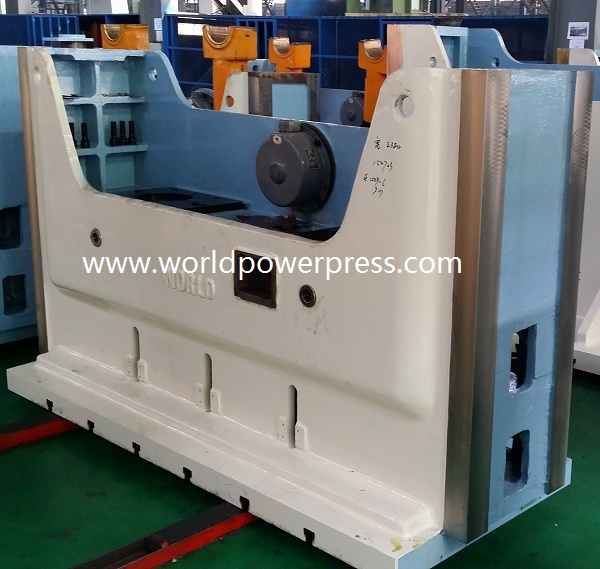

2) Double crankshafts pitmen totally eliminating side forces by reverse rotation. Welded steel plate framework with high intensity of machine body.
3) Eight side lengthened guide with high precision. Hydraulic overload protection system.
Parameters:
ITEM | UNIT | JW36-110 | JW36-160 | JW36-200 | JW36-250 | JW36-315 | JW36-400 | JW36-500 |
| Nominal Capacity | KN | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
| Slide Stroke | mm | 180 | 200 | 250 | 280 | 300 | 300 | 350 |
| Slide Strokes | Fixed | Times/min | 65 | 55 | 45 | 35 | 35 | 25 | 20 |
| Variable | Times/min | 35-65 | 30-55 | 25-45 | 25-35 | 25-35 | 20-25 | 15-20 |
| Max.Die Height | mm | 400 | 450 | 500 | 550 | 550 | 600 | 650 |
| Die Height Adjustment | mm | 90 | 100 | 110 | 120 | 120 | 120 | 120 |
| Slide Hole Size | Forward-Rear | mm | 700 | 780 | 860 | 940 | 1020 | 1120 | 1380 |
| Height | mm | 350 | 400 | 450 | 460 | 460 | 550 | 600 |
| Distance Between Uprights | mm | 1770 | 1970 | 2370 | 2470 | 2570 | 2670 | 3150 |
| Bolster Size | Forward-Rear | mm | 680 | 760 | 840 | 920 | 1000 | 1100 | 1200 |
| Left-Right | mm | 1700 | 1900 | 2300 | 2400 | 2500 | 2600 | 3000 |
| Thickness | mm | 155 | 165 | 170 | 180 | 190 | 200 | 210 |
| Slide Bottom Size | Forward-Rear | mm | 580 | 660 | 740 | 820 | 900 | 1000 | 1000 |
| Left-Right | mm | 1400 | 1600 | 2000 | 2100 | 2200 | 2400 | 2700 |
| Bolster Surface Height | mm | 900 | 900 | 1000 | 1100 | 1100 | 1100 | 1100 |
| Overall Dimensions | Forward-Rear | mm | 2050 | 2380 | 2630 | 2920 | 3100 | 3250 | 3400 |
| Left-Right | mm | 2670 | 2890 | 3310 | 3430 | 3550 | 3670 | 4500 |
| Height | mm | 3100 | 3340 | 3730 | 4110 | 4220 | 4300 | 4690 |
| Motor Power | KW | 11 | 18.5 | 22 | 30 | 37 | 45 | 55 |
| Weight(approximate) | kg | 19000 | 25000 | 33000 | 41000 | 45000 | 50000 | 63000 |
