| Prod Model: |
40mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
Low-pressure Gauge |
| Accuracy: |
0.5 |
| Display: |
Pointer |
| Application: |
Civil |
| Structure: |
Spring Pressure Gauge |
| Connection Type: |
Axial |
| Function: |
Electric Signal-controlled |
| Indicating Pressure Reference: |
General Pressure Gauge |
Product Description

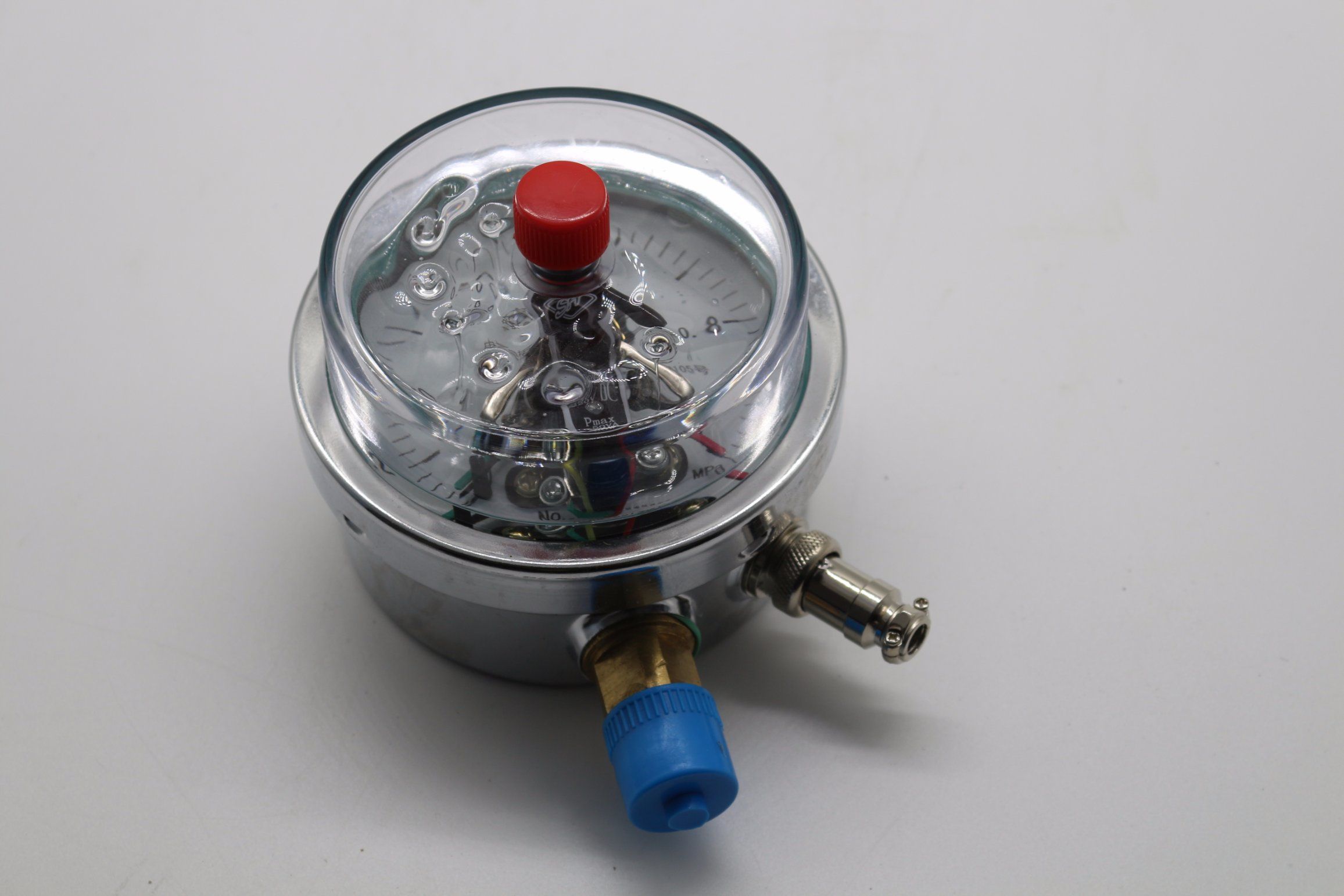

High Quality and best-selling stainless steel vibration-proof pressure gauge
Application
Main technical parameters
Nominal diameter: 60mm, 100mm, 150mm.
Static load with a measurement upper limit of 3/4, alternating load.
Working pressure: use up to 2/3 of the upper limit of the measurement.
Measured upper limit
Coupling nut
M14 x 1.5, M20 x 1.5
A quarter of the PF (PT, NPT)
PF (PT, NPT) 1/2
Spring tube
SUS304,SUS316L
Connector material SUS304,SUS316
movement
SUS304
The trim SUS304
Gauge glass Ordinary glass, tempered glass
We produce all types of pressure gauges, welcome to consult and purchase.
Use guide
Protective devices should be added to the environment where there is a sharp pressure change or vibration and pulsation.
Pressure gauges should be installed horizontally or vertically.
Do not use the hand to pull the meter case when mounting or disassembling. Use a special wrench.
The measurement of explosion hazard, easy crystallization, easy solidification, corrosion resistance, please select a special quality measuring instrument.
A pressure gauge with an oil seal shall be used to measure oxygen, acetylene or other combustible gases.
Normal working environment temperature of 40 ºC ~ + 70 ºC, relative to the degree is not more than 85%
We are the specialized manufacturer and supplier of pressure gauges.
During our 25 years in the industry,we have managed to earn over 100 patents in mainland
China, setting our products apart from those of the competition.
Top oc equipment from South Korea and innovative designs help us create more durable andreliable products.
The JK quality assurance management system has been certified in accordance with ISO9001 since1998.The quality and safety standardsof our company meet the standard systems of
several countries.
Based on our accumulated and advanced technology in this feild, we have been actively
exporting our quality products to 10 or more countries such as Korea, New Zealand, Australia,Japan and Canada and we have obtained very good reputation from them who are satisfied with our high quality,competitive price,shortest dilivery,etc. Some remarks for price:
1.Price Clause: FOB Qingdao USD
2.Minimum order quantity: We don't have MOQ requirements.
3.Time of Shipment :Due to your ordered quantity.
4.Terms of payment: L/C, T/T in advance.
5.Package: Strong seaworthy packing for export
6.Note: We also can customize due to your requirements.
If you are interested in our products,please send us inquiry,thanks.
