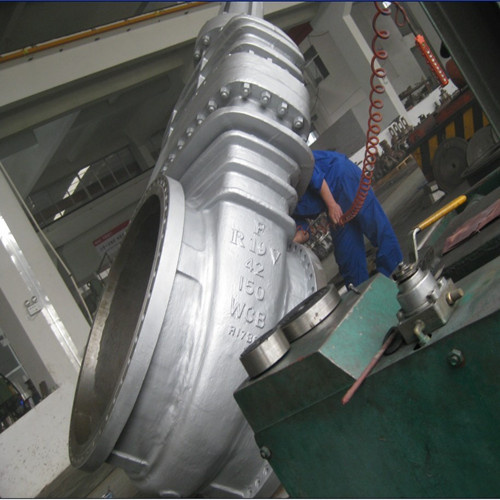

42"150lb Large-Diameter Cast Steel Gate Valves (Z540(1))
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Z540(1) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve: |
Gate Valve |
| Size: |
1'-42" |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
Product Description
Specifications| Standard or Nonstandard: | API 600 | Structure: | API 600 cast steel gear operated gate valve | Pressure: | 150LB | | Power: | Gear Operated | Material: | A216 WCB | Temperature of Media: | -29 Deg. C ~ 200 Deg. C | | Media: | Crude Oil, Natural Gas, etc | Port Size: | 16" Raised Face RF Flange | Place of Origin: | Zhejiang, China (Mainland) | | Model Number: | Z540Y-150Lb-42" | Brand Name: | TFC China | OEM: | We offer OEM service | | Special Requirement: | Tailor made can be provided | Description: | API 600 cast steel gear operated gate valve |
Packaging & Delivery| Packaging Details: | Seaworthy Plywood Cases | | Delivery Detail: | 5 days ~ 30 days |
Specifications
Product Range: 1. Size: from 2" ~ 48" 2. Pressure: from 150Lb ~ 2500Lb 3. Working temperature: from -50 Deg. C ~ 550 Deg. C Description of Goods:
API 600 cast steel gear operated gate valve
Applicable Standards: Design & Manufacture according to : API 600 Face to Face according to : ASME B16.10 Flange Dimensions according to : ASME B16.5 Pressure & Temperature according to : ASME B16.34 Test & Inspection according to : API 6D / API 598 Visual Inspection according to : MSS SP-55 Marking according to : MSS SP-25
Main features: Body structure: Bolted bonnet Construction: Flexible wedge disc Bore: Full bore Connection: Raised face RF flange Seat: Welded to body, or renewable seat Stem: Rising stem Handwheel: Non rising handwheel Packing: changable under pressure
Material Option: | Carbon steel | A216 Gr. WCB , WCC , WCA , etc | | Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc | | Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc | | Stainless Steel | A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc | | Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc | | Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc | | Aluminum bronze | B148 C95500 , C95600 , C95800 , etc | | Monel | M30C , M35-1 , CZ100 , etc | | Inconel | CY40 inconel 600 , etc | | Hastelloy | CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc | | Incoloy | CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
FAQ 1.Q: What is your main market? A: Our main market is North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe.
2.Q: Are there products standard?
A: Our model is standard, if you have specific demand, pls tell us.
3.Q: Do you have interest to do our own design items?
A: Absolutely! It's our pleasure.
Our Services
1)Our advantage:
We are the manufacturer with almost 20 years experience on valves. Best price,quality and service, Also we can control the production status. Shanghai YI CHEN team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Gurantee: One year since delivery.

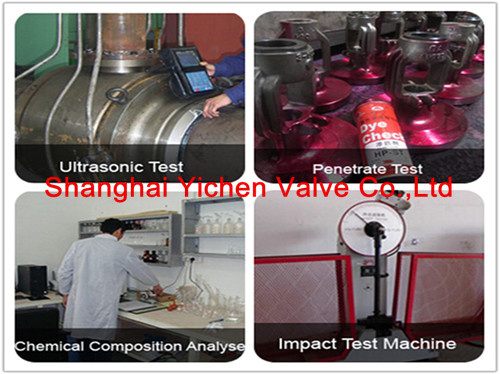

6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose SHANG HAI YI CHEN , we are always ready! |
Shanghai Yi Chen Valve Co. Ltd. Is a professional research, development, production and sales of various types of valves of high-tech enterprises, in strict accordance with the ISO9001 API international quality system to organize production, testing, sales and service. Continuous innovation for his company's products and efficient service system, set up the instrument's fine product image, the application of new technologies, new materials, new technology, develop new products of high quality, high-tech, high-grade.
All products are in accordance with GB, ANSI, API, JIS, DIN, BS and other standards for the design, manufacture, processing, product size from DN3-3000mm (1/8 - 40//), the working pressure from 0.6 42.0MPa (150 2500LB), while the user can use the different medium carbon steel, alloy steel, stainless steel etc. The material to meet the technological requirements, strong corrosion medium, Qiang Chongshua can choose channel fluorine lining, lining ceramic products to satisfy, suitable temperature of the product is -196 - 850 ºC, drive users of the products can be based on actual use conditions using manual, pneumatic, electric, hydraulic, electric hydraulic, pneumatic and hydraulic etc...Petroleum, chemical industry, power plant, metallurgy, environmental protection, light industry, urban construction, water treatment system, the products of the company are widely used in home and abroad in the vapor, liquid, gas and other process control system. And to provide products with the best quality of fluid system solutions for many industries such as chemical industry, metallurgy, power generation, oil and gas production, chemical processing, bio pharmaceutical, research, semiconductor manufacturing, products exported to Europe, Southeast Asia, the Middle East and other countries. The company to high-quality products, first-class service to win the majority of customers.
Our company has and the use of rich design experience in serious condition, a variety of demanding occasions has profound understanding. Based on the field experience the past, we experienced engineering and technical development of creative and selection of personnel, to provide more than rival quality product for you.
Our company is a global leader in the design and manufacture of valves. We use the extraordinary quality and reliability in all sectors of the user has established a good reputation. From the general to the most complex conditions, instrument his company can provide solutions to process your.
We wholeheartedly welcome the community sincere cooperation, seek common development.
