42.5m3/Min Flow Biteman Heat Modular Desiccant Air Dryer

Prod Model:	Heated BTGMXD425-A, 42.5m3/min and -40C pdp
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flow Range:	42.5m3/Min, 1500cfm
Purge Air Control:	Automatically Control
Modular Units Desiccant Chamber:	Replace with Factory Filled Desiccant
Pressure Dew Point:	-40 Centigrade ,Optional -70c
Heat Or Heatless:	Heat

Product Description

BITEMAN Modular units heated desiccant air dryer

Unique features
-Less than 2% purge air with only 0.4kw to 4.4kw power consumption,no auxiliary blower and vacuum motor
-Pressure and inlet temperature is digital readout on screen,purge air gauge allows manually control regeneration air according to the wanted pressure dew point
-Small desiccan chambers' group,each chamber unit is independent and detachable
-Replace with factory filled desiccant chamber ,ease of maintenance and constant pressure dew point -40C (-40F) is ensured
-The lowest operation cost,user could recoup  dryer investment in three years by saving huge air and electricity
-1/3 size to traditional dryer
-The shortest downtime
-Using Molecular sieve as desiccant

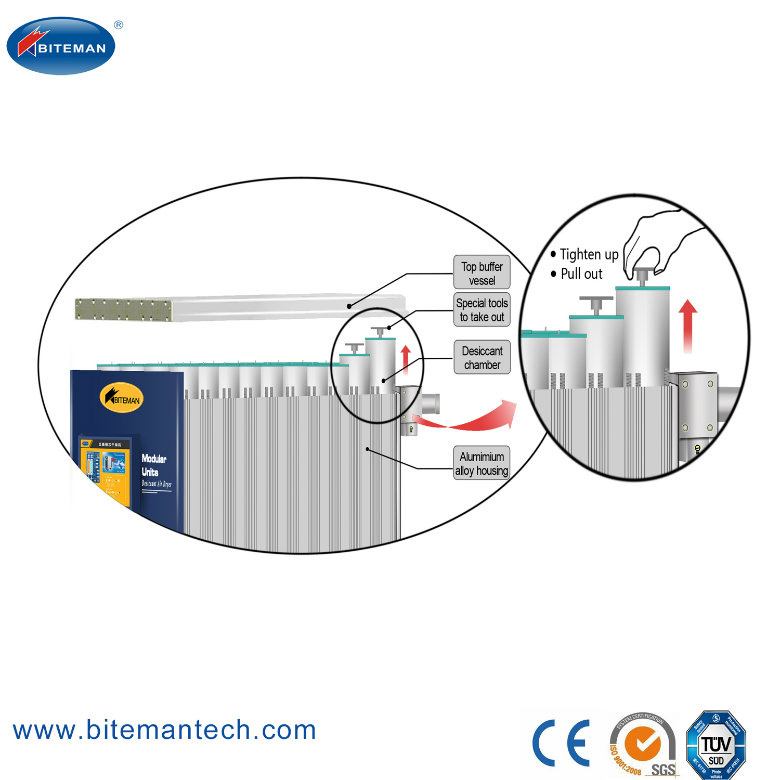

Ease of replacement of desiccant chambers,it can't be more simpler comparing to exchange of desiccant,only one wrench it is done.Further more,needn't worry the desiccant density after refilling because it is filled in our factory to keep constant and stable pressure dew point,just like new dryer from factory

Technical data
A-series       Heatless           (-40ºC dew point)

MODEL	Port (inch)	Flow rate (m³/min)			Dimension (mm)
		@5~6bar	@6~7bar	@7~10bar	L	W	H
BTGMXW065-A	G2	4.8	5.8	6.5	451	240	1628
BTGMXW085- A	G2	6	7.4	8.5	560	240	1628
BTGMXW106- A	G2	7.4	9.1	10.6	668	240	1628
BTGMXW146- A	G2	9.8	12	14.6	885	240	1628
BTGMXW165- A	G2	11.6	14.2	16.5	994	240	1628
BTGMXW206- A	G3	14.6	17.8	20.6	763	480	1628
BTGMXW248- A	G3	16.7	20.5	24.8	794	480	1628
BTGMXW295- A	G3	21.5	26.3	29.5	903	480	1628
BTGMXW336- A	G3	24.1	29.5	33.6	1012	480	1628
BTGMXW385- A	G3	26.8	32.8	38.5	1121	480	1628
BTGMXW425- A	G3	29.7	36.4	42.5	1230	480	1628
BTGMXW465- A	G4	32.7	40.1	46.5	1339	480	1628

Marks
Standard working condition:Inlet pressure 0.7MPa≤P<1.0MPa,Temperature T≤35ºC;
Working condition:Pressure 0.4MPa≤P<1.0MPa,Temperature 2ºC≤T≤40ºC;
Technical date:Pressure dew point≤-40ºC
         Purge air≤ 5%
            Pressure drop≤0.012MP
         Noise≤75dB(average);

A-series         Heat                (-40ºC dew point)

MODEL	Port (inch)	Flow rate (m³/min)			Dimension (mm)			Max Power
		@5~6bar	@6~7bar	@7~10bar	L	W	H	Kw/1 Ph
BTGMXD065-A	G2	4.8	5.8	6.5	451	240	1628	0.8
BTGMXD085- A	G2	6	7.4	8.5	560	240	1628	1
BTGMXD106- A	G2	7.4	9.1	10.6	668	240	1628	1
BTGMXD146- A	G2	9.8	12	14.6	885	240	1628	1.4
BTGMXD165- A	G2	11.6	14.2	16.5	994	240	1628	1.6
BTGMXD206- A	G3	14.6	17.8	20.6	763	480	1628	2
BTGMXD248- A	G3	16.7	20.5	24.8	794	480	1628	2.4
BTGMXD295- A	G3	21.5	26.3	29.5	903	480	1628	2.8
BTGMXD336- A	G3	24.1	29.5	33.6	1012	480	1628	3.2
BTGMXD385- A	G3	26.8	32.8	38.5	1121	480	1628	3.6
BTGMXD425- A	G3	29.7	36.4	42.5	1230	480	1628	4
BTGMXD465- A	G4	32.7	40.1	46.5	1339	480	1628	4.4

Marks
Standard working condition:Inlet pressure 0.7MPa≤P<1.0MPa,Temperature T≤35ºC;
Working condition:Pressure 0.4MPa≤P<1.0MPa,Temperature 2ºC≤T≤40ºC;
Technical date:Pressure dew point≤-40ºC
         Purge air: ≤2%
         Pressure drop≤0.012MP
         Noise≤75dB(average);


Package
