| Prod Model: |
F15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
450W 8ohms 15inch Factory Directly Square Speaker |
| Rated Power: |
450W |
| System Type: |
2-Way Full Range |
| Driver: |
Lf:15''*1;Hf:1.73''*1 Neodymium |
| Enclosure: |
15mm Birch Plywood |
| Surface Treatment: |
Black Catalyzed Polyurethane Paint |
| Business Type: |
Factory |
| Delivery Time: |
for Sample,1 to 3 Working Days for Batch Order,5 T |
| Warranty: |
Three Years |
| Customized: |
Yes |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Stage,Project,Sports Field,Big Area |
| Certification: |
ISO,SGS |
| THD: |
<0.005% |
Product Description

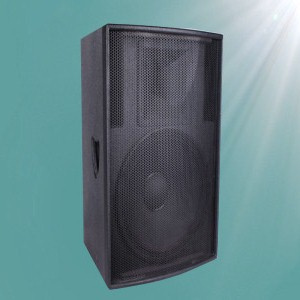

450W 8ohms 15inch Factory Directly Square Speaker Home Theater F15
| Model | F215 | F15 | F12 | F10 | F8 |
| System | 2-WAY FULL RANGE | 2-WAY FULL RANGE | 2-WAY FULL RANGE | 2-WAY FULL RANGE | 2-WAY FULL RANGE |
| Frequency response | 35Hz-18KHz | 43Hz-18KHz | 50Hz-18KHz | 57Hz-18KHz | 60Hz-18KHz |
| Driver(neodymium) | LF:15"×2(170magnet Φ75mm) | LF:15"×1(170magnet Φ75mm) | LF:12"×1(170magnet Φ65mm) | LF:10"×1(140magnet Φ51mm) | LF:8"×1 |
| HF:1.73"×1(120magnet Φ44mm) | HF:1.73"×1 | HF:1.73"×1 | HF:1.34"×1(90magnet Φ34mm) | HF:1.34"×1 |
| Nomina limpedance | 4 Ohms | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| System sensitivity | 101dB | 98dB | 97dB | 95dB | 94dB |
| Rated power | 800W | 450W | 300W | 200W | 150W |
| Peak power | 3200W | 1800W | 1200W | 800W | 600W |
| Maximum SPL | 136dB | 131dB | 128dB | 124dB | 122dB |
| Coverage angle | horizon80°,verticality50° | horizon80°,verticality50° | horizon80°,verticality50° | horizon80°,verticality50° | horizon80°,verticality50° |
| Crossover mode | Inside crossovers | Inside crossovers | Inside crossovers | Inside crossovers | Inside crossovers |
| Suspension | with flying points | with flying points | with flying points | with flying points | with flying points |
| Net weight | 52KG | 26.5KG | 20kg | 15kg | 14kg |
| Size(mm) | 560W×500D×1216H | 475W×445D×685H | 396W×368D×575H | 351W×320D×533H | 299W×269D×435H |
| Package size(mm) | 625W×560D×1300H | 530W×505D×750H | 460W×425D×635H | 390W×360D×610H | 375W×343D×518H |

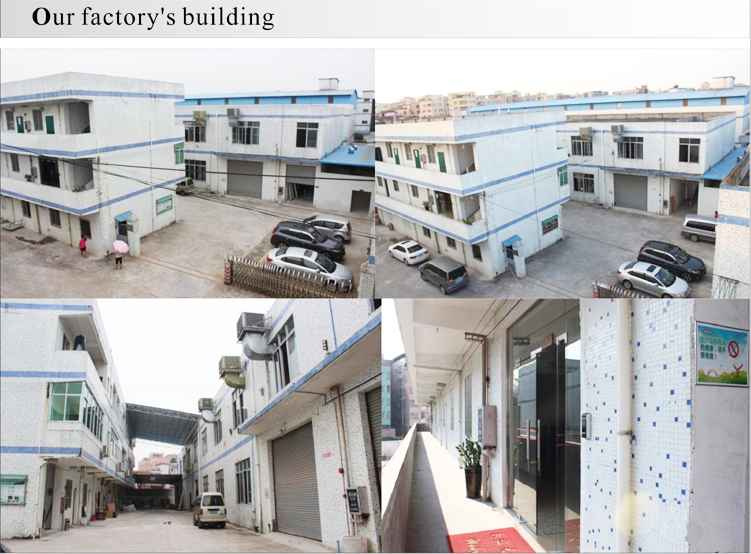

Our company:Area: 10000 square meter
Worker: more than 200 rich experienced technicians
History: more than 8 years ----------- We are a global marketing factory
Certificates: ISO9001(2008), RoHS ,CCC, FCC, CE,SGS
Market: western European,north American,middle-east Australia, east-south Asian , etc.
Our promise:pay more attention to product quality than you
We will reply you any question within 24 hours
1>. What's your warranty period?All our products have three years warranty on free charge, in case the amplifier is burned in the future, please tell me issue describe, then give us your repair instruction with picture, please just ask your technician to replace burned components, then solve problem.Of course, we willprovide technician support for over three years products, but you should pay for spare parts and shipping cost at that time.
2>. What's your payment term? For the sample order, we can accept T/T, Western Union, MoneyGram,Paypal and other.
But for the Batch order, we support Payment term by T/T,Western Union and other.
( 30% deposit in advance, balance 70% before shipment ).
3>. How many days you could deliver?For the sample order, we could send by Express upon receipt of this funds. You could receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as soon as possible.
4>. What's mode of transportation?For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EMS.
Of course, it is more economical by sea for batch order.
5>. How to contact us?Send your inquiry detail to get the sample, click "send" now!
About Us:Guangzhou Yunqiang Electronics Limited is a developing amplifier, speaker,stage lighting factory in Guangzhou,China. Based in the interenational andmanufactures innovative,High quality Amplifier, Speaker, Stage Light products for the professional Club Play and stage show Entertainment&leisure.
Our purpose:Quality first,Credit first Customer first, First-rate service.
We insist in "honest business and high quality service" as our business ideal, with a powerful R&D team and a group of skilled workers in the factory as the strong backup and support,
we always work on this ideal to serve all customers with good quality and reasonable price.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.

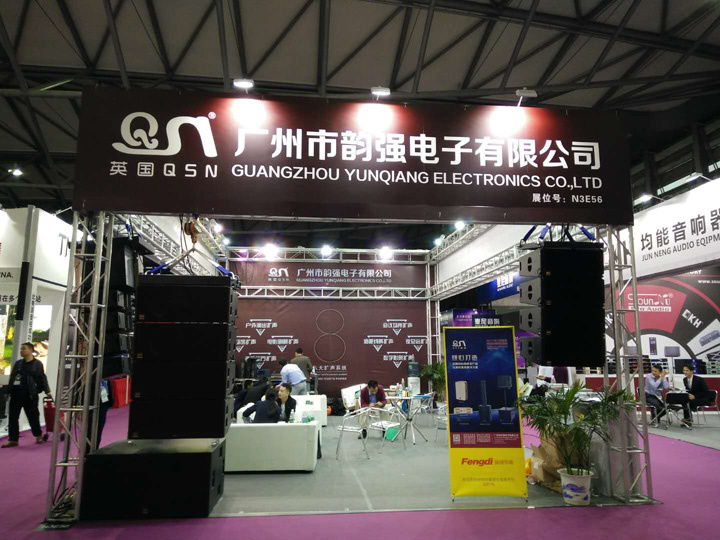

2017 Prolight + Sound Guangzhou
Our booth is C22 2.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 22th~25th February, 2017
