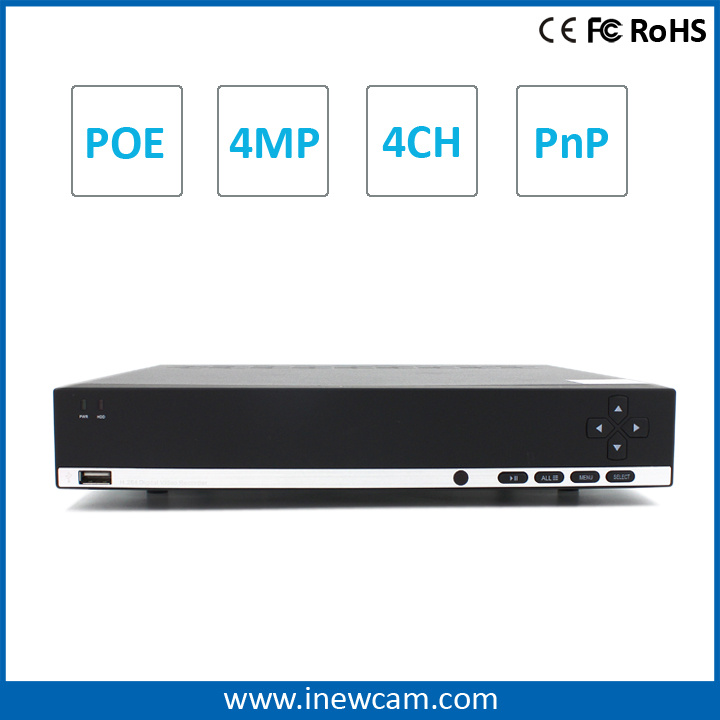

4CH 4MP Home Alarm Security Poe NVR
| Price: |
US $ 65-70/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
NVR-6304 |
| Application: |
Commercial DVR |
| Interface Type: |
BNC/VGA/Hdim |
| Operating System: |
Linux |
| Compressed Format: |
H.264 |
| Video Compression: |
M-JPEG |
| Audio Input/Output: |
4 Channel |
| Remote Control: |
with Remote Control |
Product Description
4CH 4MP Home Alarm Security POE NVR* 4 CH 4M/3MP/1080P/720P IP camera input;
* 1CH playback;
* Supports dual stream;

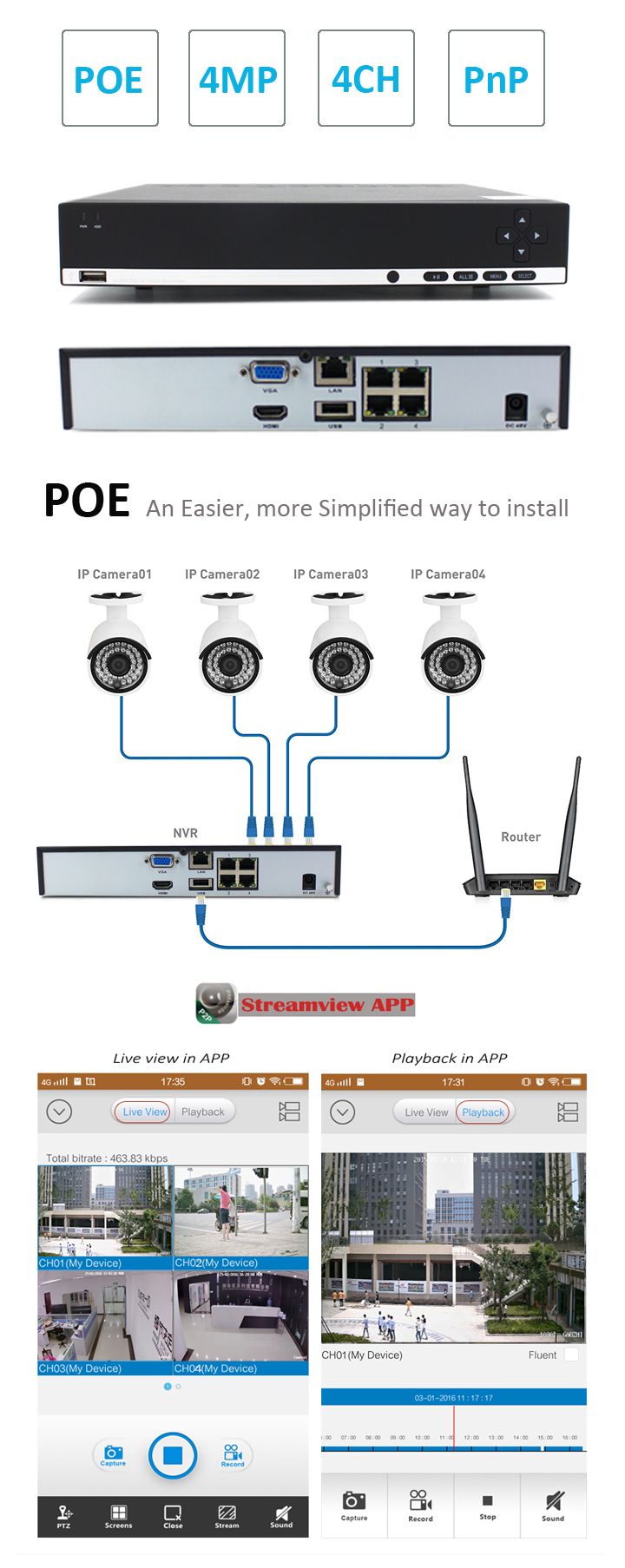

* embeded 4 PoE Network ports;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 2 USB2.0 ports, 1 SATA 2.0 HDD port(up to 4000G);
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P | System | GUI | 16-bit True Color |
| Operating System | Embedded Linux OS |
| Password security | Multi-level users management, 1 Admin + 19 Users |
| A/V Input | Video Input | IP Camera x4 POE |
| Audio Input | NO |
| A/V Output | Decoding resolution | 4MP/3MP/1080P/720P |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,
1440*900,1920*1080P (1080P) |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,
1440*900,1920*1080P (1080P) |
| Audio output | 1CH RCA (Linear, 1kΩ) |
| Playback resolution | 4MP/3MP/1080P/720P |
| Synchronous playback | 1CH |
| HDD | SATA Devices | 1 x SATA HDD |
| Maximum capacity | 4TB |
| External HDD | 1 x Esata, e-sata as storange function. |
| External Interface | USB Connector | 2 x USB2.0 |
| Serial Interface | NO |
| 2 way audio (voice talk) | NO |
| Alarm input/output | Optional |
| Network Interface | RJ 45,10M/100 M Ethernet, 4 Network ports
for IP camera, 1 Giga network port for LAN/WAN |
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP,
DDNS,UPnP,FTP,RTSP,Onvif,P2P |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad |
| System Upgrade | Supports USB update |
| Remote Software | StreamView APP, IE Browser,
Google Chrome Browser,Firefox Browser |
| General | Power Supply | Input 100~240V, 48V 1.25A |
| Consumption | <10W without HDD&PoE |
| Working temperature | -10ºC~+55ºC(14°F~131°F) |
| Working humidity | 10%~90% |
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) |
| Weight ( w/o HDD/DVD±RW ) | 2.0 kg |
About us
Hunan Gaozhi Science and Technology Co., Limited is a High technology company with registered capital of 4 million USD, offers satisfactory ODM,OEM service in Security & Surveillance Field.
1. R&D Team
With 80 R&D engineers, key members are from Huawei. Gaozhi persists in technology innovation and invests about 10% of annual sales revenue in R&D. New products come out continuously with new feature& good performance.
2. Main products
AHD Camera and DVR, HVR, 720P, 960P,1080P...
POE IP Camera and NVR, 2MP, 4MP, 6MP,8MP...
WIFI IP Camera and NVR, 2MP,4MP...
NVR Kits, WIFI NVR Kits
Smart Home WIFI Cameras, 720P, 1080P... (key features: auto tracking, plug and play, motion detection...)
Smart camera kits and doorbell...
3. Primary Advantage
* Excellent & stable quality approved by famous distributor
* Big capital-supported by government
* Strong R&D team, customized service
4. Delivery time
Sample order: 1-3 days
Mass production: 2-4 weeks
5. Certifications
Comes with CE, ROHS, FCC and RED certification.

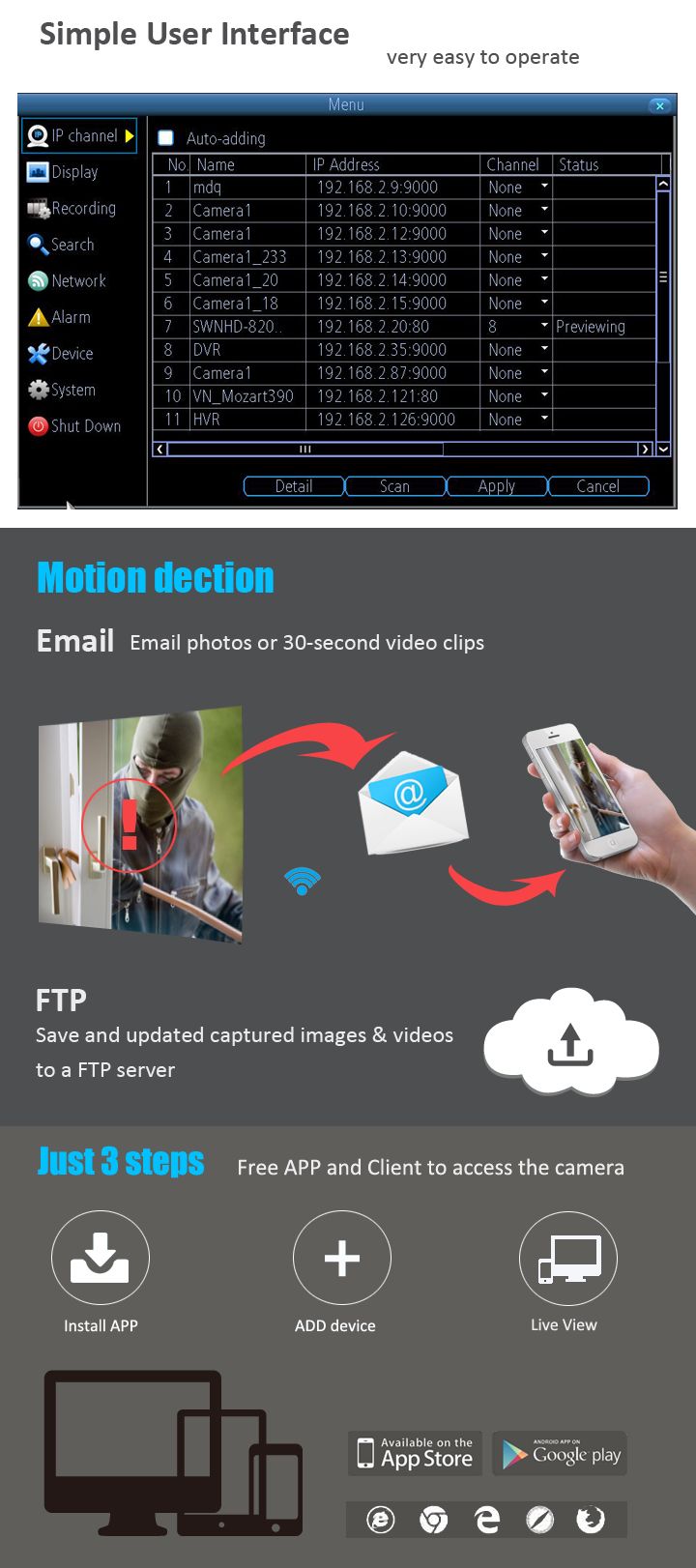

6. APP & Software
PC software is SmartClient and phone APP is StreamView,
they are developed by ourself and free, welcome to download it.
7. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
8. Warranty
2 years free repair warranty. For the confirmed defective products, will send free replacement in the next shipment.
9. OEM/ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package.
10. Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m-20m
C. 6mm lens : 30m-50 m
(We have 2.8-12 mm auto-Focus camera for long distance & special condition.)
Gaozhi Technology is a high-tech innovative company with strong government support. It aims to be a trusted provider of full range of security products and smart home solutions in global market.
With 80 experienced R&D engineers in hardware and software, team members of our R&D department are all from top universities in China. Taking fulll of outstanding tech advantages from the experienced universities, we have various security product lines covering from engineering, home to outlets. In the smart home filed, we launched the unique "Security Shield" with high protected-privacy.
Gaozhi persists in technology innovation and much competitive in ODM/OEM service with very low MOQ and one-stop easy of mind service. Top famous brand appointed us as long-term OEM factory due to the very stable system & reliable quality. All of our products are compliant with CE, FCC and RoHS standards.
We provide a full range of 2MP/4MP/6MP POE IP cameras, 1080P WiFi Kits, POE NVR and DVR. Also we are launching unique new products, like smart camera kits and doorbell to change people's life. It enable a deeper connection with the world and the loved ones.
