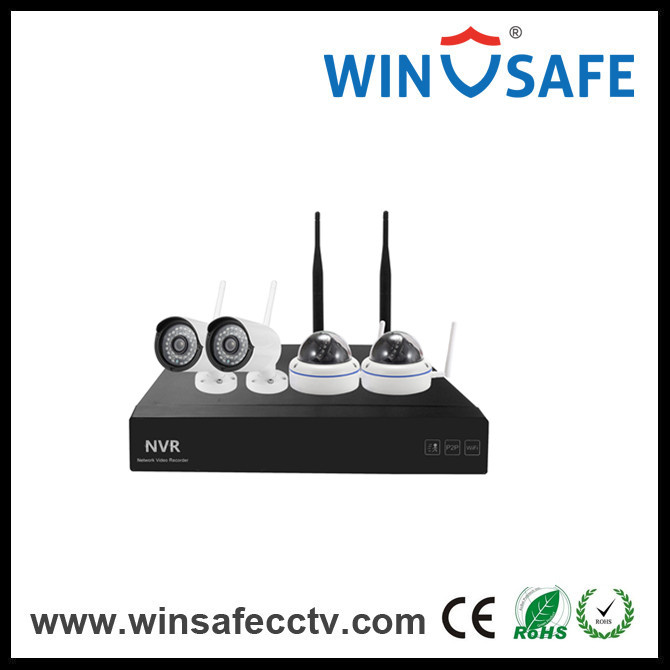

4CH WiFi NVR with 4 PCS WiFi IP Camera Home NVR Kits
| Price: |
US $ 150-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
WS-NVK412-10 |
| Network Video Input: |
4CH NVR |
| 1.0MP WiFi IP Camera: |
4PCS |
| NVR: |
Support WiFi |
| USB Port: |
One USB 2.0 Port |
| LED: |
15PCS IR Ledand 36PCS IR LED |
| Lens: |
4.0mm 2.0MP HD Lens |
| IR Distance: |
20-30m |
| Video Streams: |
1280*720 |
| Sensor: |
1/4" Ov0130 CMOS Sensor |
| Carton Size (L*W*H(Cm)): |
50*34*35cm |
Product Description
4CH WIFI NVR with 4 PCS WIFI IP camera Home nvr kits | Model No. | WS-NVK412-10 |
| Video & audio input | |
| Network video input | 4CH NVR |
| Video & audio output | |
| HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| VGA output | 800x600,1024x768 |
| Mobile phone | Support Android /Apple System |
| Audio output | NO |
| Video & audio code and decode parameters |
| Record resolution | D1/HD1/CIF/720P/960P/1080P |
| Playback resolution | 720P 100/120FPS 1080P 50/64FPS |
| Motion detection | Motion Detection |
| Synchronously playback channels | 1/4CH |
| Record management |
| Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
| Playback mode | regular playback,alarm playback,motion detection playback,events playback |
| Backup mode | regular backup, events backup, manual backup |
| Hard driver |
| Mode | 1*SATA |
| HDD capacity | each port support max 4TB HDD |
| External port |
| Voice intercom | NO |
| Internet port | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| USB port | 1*USB2.0 |
| WIFI port | Built-in wireless router,With 2pcs Antenna |
| WIFI Distance | 100M(Open area),Wall:20-30M |
| Network Management |
| Network protocol | Built-in wireless router,With 2pcs Antenna,The image is automatically |
| Other |
| Power supply | DC12V |
| Power consumtion(without HDD | ≤16W |
| Work temperature | (-10ºC--+55ºC) |
| Work humidity | 10%--90% |
| Case | 0.8U |
| Size(W*L*H(cm)) | 280*230*57mm |
| Net weight(without HDD) | 1.6kg |
| Gross weight(without HDD) | 2.39kg |
| Color box size(L*W*H(cm)) | 330*320*98mm |
| Packing(pcs/carton) | 5 |
| Carton size (L*W*H(cm)) | 50*34*35cm |
| Gross weight(kg) | 12.46kg |
| WIFI IP CAMERA Parameter |
| Model No. | WS-IPC-412-10 |
| Program | HI3518E+OV9712 |
| System structure | Embedded RTOS design,Dual-Core 32-bit DSP,Pure hardware compression, watchdog; |
| Sensor | 1/4" OV9712 CMOS sensor |
| Led | 36PCS IR LED+15PCS IR LED |
| Lens | 4.0MM 2.0MP HD Lens |
| IR Distance | 20-30M |
| Minimum illumination | Colo [email protected]; |
| Video Processing | H.264 coding,MJPEG coding
AVI format;Support Stream 0.1M~16Mpbs Adjustable; |
| Image Frame Rate | PAL:1~25 Frame/second,NTSC:1~30 Frame/second;Adjustable |
| Video Streams | Main stream:1280*720 |
| Sub-stream:704*576,640*480,352*288 |
| Audio Processing | N/A |
| Network Interface | 1PCS RJ45 Ethernet port, 10m / 100M Adaptive;Support WIFI,Automatic code, automatic image |
| WIFI Port | Support WIFI, With 1pcs Antenna |
| WIFI Distance | 100M(Open area),Wall:20-30M |
| Reset Interface | N/A |
| TF card interface | N/A |
| Auto Iris Interface | N/A |
| Signal Interface | Support photoresistor input signal and the IR-CUT, infrared light linkage; |
| POE | N/A |
| Phone monitoring | N/A |
| Lightning Protection | Power, network, POE comprehensive lightning,In line with national standards GB / T17626.5,
International standard IEC61000-4-5. |
| Working environment | (-10ºC~+60ºC) |
| Power supply | DC12V power input(12V/1A) |
| Weight | 0.5KG |
