| Prod Model: |
4X4 Winch PS9500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| V: |
12V |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Applicable Environment: |
Swamp |
| Certification: |
CE |
| Brand: |
Zhme |
Product Description

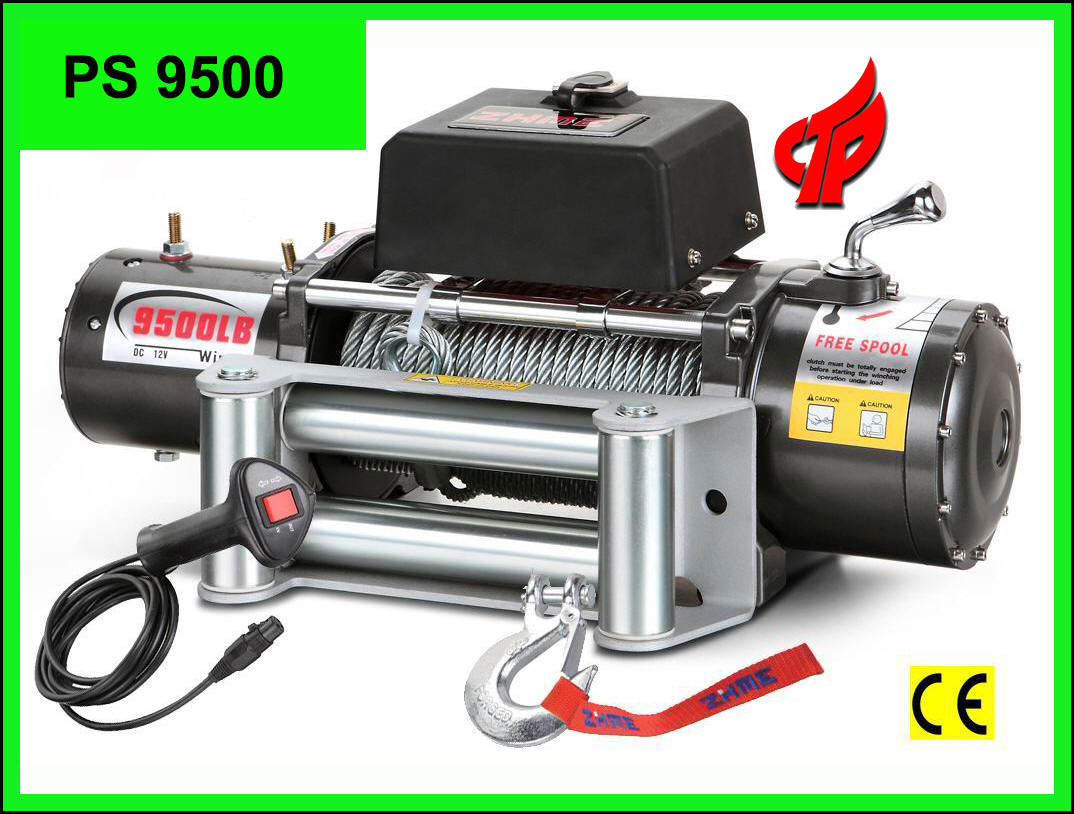

4X4 Winch PS9500

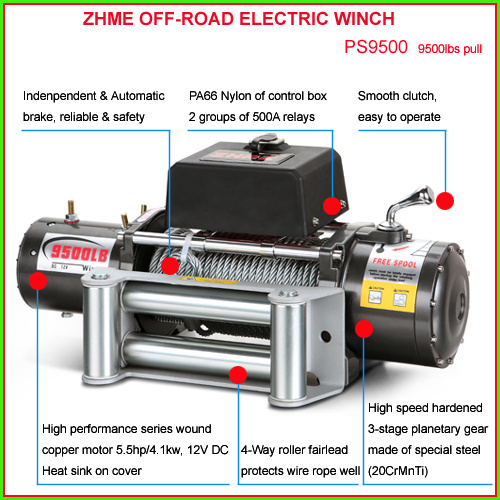

Specifications
Rated line pull: 9500 Lbs (4310kgs) single line.
Motor: Series wound 5.5 HP /4.1kw 12V DC 7.4 HP /5.4kw 24V DC
Gear Train: 3 stage planetary
Gear ratio: 218: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2, 72(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 5/16"× 92'( 8.3mm × 28m)
Drum size: 2.5"× 8.8"( 64mm× 226mm)
Dimensions: 21.5"× 6.3"× 8.6"( 548mm× 160mm× 218mm)
Mounting bolt pattern: 10"× 4.5"(254mm× 114.3mm)
N. W: 38 kg (84Lbs)
Packing: 620mmx360mmx260mm (420PCS per 20" container)
| Line speed and motor current (first layer) |
| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 9500 |
| Kgs | 0 | 907 | 1814 | 2722 | 4310 |
| Line speed | FPM | 25.6 | 16 | 11.9 | 9.79 | 7.2 |
| MPM | 7.8 | 4.88 | 3.63 | 2.98 | 2.2 |
| Motor current | Amps | 80 | 130 | 190 | 240 | 350 |
| Line pull and cable capacity | |
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 9500 | 8000 | 7200 | 6600 | |
| Kgs | 4310 | 3629 | 3266 | 2994 | |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 | |
| M | 6 | 13.2 | 22 | 28 | |
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.
Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009
Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
