Product Description

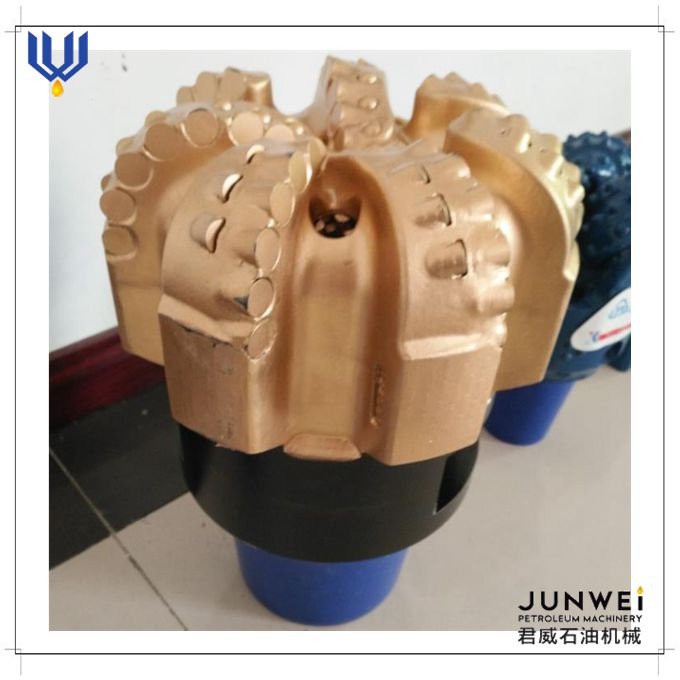

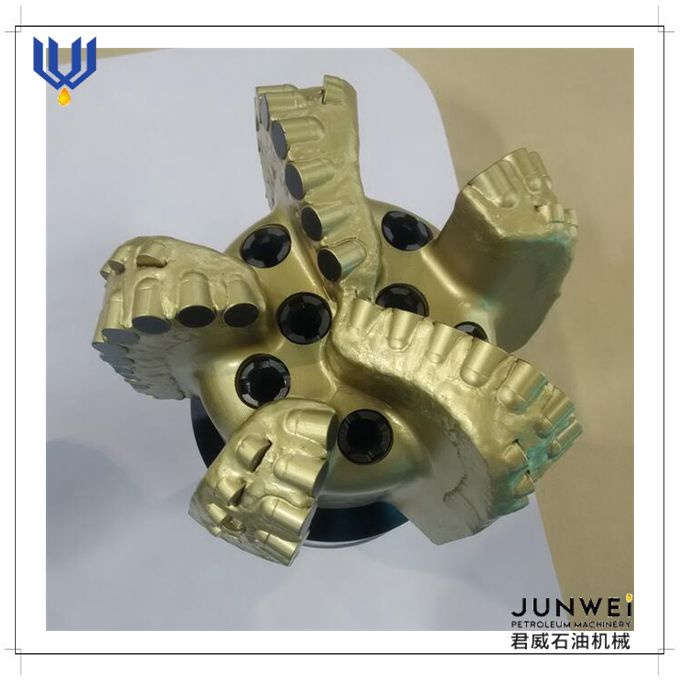

5 1/2'' hard rock cutting tools PDC drill bit / diamond PDC bitsMatrix PDC bit with six blades of parabola crown profile and with middle cutter density.
With interchangeable screw nozzles.
Asymmetrical blades arrangement and special load-balanced cutter arrangement design improve bit stability and therefore higher ROP.
Non-plane interfaced diamond/carbide cutters absorb effectively high stress and minimize cutter fracturing and wearing.
Both tilted and cauterized nozzles design improves bit cleaning and prevents bit balling, thus to improve ROP.
Can be used on rotary or down hole motor drilling.
Suitable for soft to medium hard formation.
High HIS is recommended.
| Bit Specifications | Recommended Operation Parameters |
| size | No of blades | Size of cutters | No of Nozzles | Gauge Length | Connection | Rotation Speed | Weight on Bit | Flow Rate |
| inch | pcs | mm | pcs | in | API | RPM | KN | L/S |
| 5 7/8" | 6 | 16 | 3--6 | 2--3 | 3 1/2" | 60--350 | 20--100 | 20--30 |
| 6" | 6 | 16 | 3--6 | 2--3 | 3 1/2" | 60--350 | 20--100 | 20--30 |
| 8 1/2" | 6 | 16 | 5--7 | 2--3 | 4 1/2" | 60--350 | 25--120 | 25--38 |
| 9 1/2" | 6 | 16 | 5--7 | 2--3 | 6 5/8" | 60--350 | 25--120 | 30--40 |
| 12 1/4" | 6 | 16 | 5--7 | 2--4 | 6 5/8" | 60--350 | 30--140 | 40--60 |
| 16" | 6 | 16 | 6--8 | 2--4 | 7 5/8" | 60--300 | 30--200 | 40--70 |
| 17 1/2" | 6 | 16 | 7--10 | 2--4 | 7 5/8" | 60--300 | 30--200 | 40--70 |
| | | | | | | | | |
1 FM Series PDC Bit(Matrix PDC bit)
Name: Matrix Body PDC bit
Application: Oil, Gas , Water well drilling

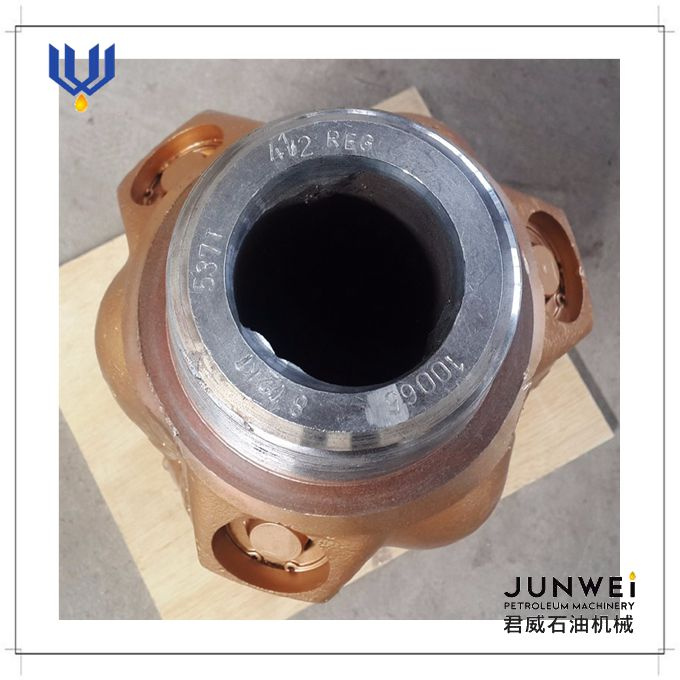

Structure: Bit body, PDC cutter, nozzle, gauge protection and joint
Bit body:Matrix body, with standing high compressive loads and great resistance to abrasion and erosion
Standard: API7-1
Advantages:High efficiency, high drilling speed,long working life,high drilling depth,Self-sharpening.It is used for homogenous medium soft to medium hard formations
Application equipment: High rotation speed turbo-drilling
Operation: Low bit pressure and high rotation speed.
2 FS Series PDC bit (Steel body PDC bit)
Name: Steel body PDC bit
Application: Oil, Gas , Water well drilling
Structure: Bit body, PDC cutter, nozzle, gauge protection and joint
Bit body:Steel body, high resistance to impact loading and replaceable cutter
Standard: API 7-1
Advantages:High efficiency, high drilling speed, long working life high drilling depth and Self-sharpening
Application formations: Homogenous medium soft to medium hard formations
Application equipment: High rotation speed turbo-drilling
Our Services
pdc bit for water oil well drilling
Delivery Time: Based on order quantity, normally it takes 10-15 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
Packing &Logistic Packing:wooden case(standard export packing)
Transportation type:by sea,by air,by train ect as your requirement
