0.5-1000A Clamp on CT 100mv/a
| Price: |
US $ 78.60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GWTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Advantage: |
Clamp on Current Transformer |
| Accuracy: |
1% |
| Primary Current: |
0.1-1000A |
| Useable Frequency: |
10Hz to 100kHz |
| Window Size: |
Check Specification Below |
| Maximum Voltage: |
600VAC |
| Output Signal: |
Ma/a or Mv/a |
| Operating Temp: |
-10c to +50c |
| Maximum Non-Destructive Current: |
2000A |
| Export Markets: |
Global |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single or Three |
| Operation Condition: |
Electronic, Instrument, Lighting |
Product Description

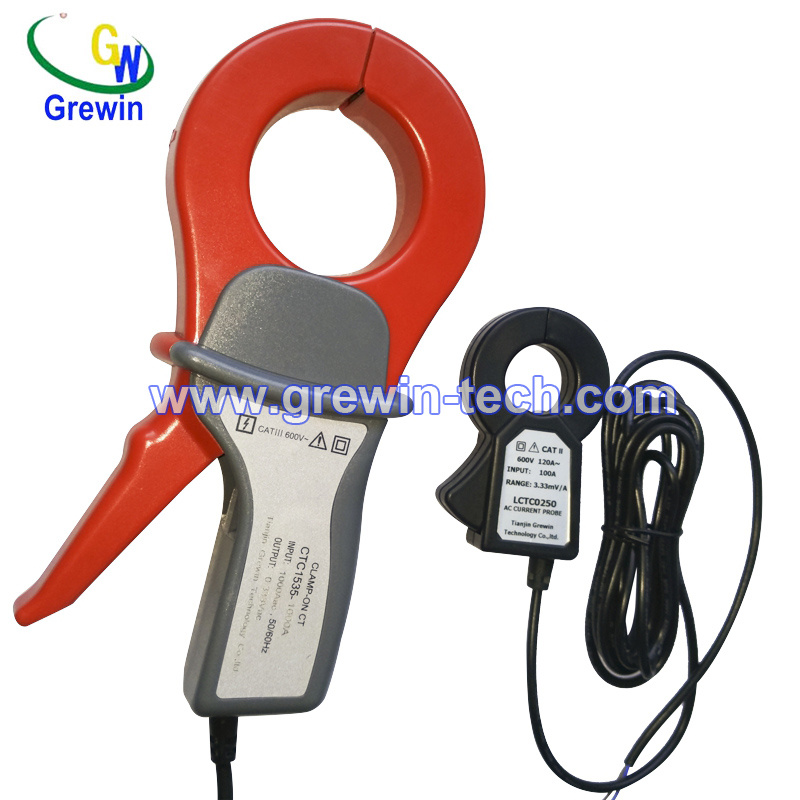

0.5-1000A clamp on ct 100mV/A
Our main product are Miniature votage transformer ,Miniature current transformer ,Instrument current transformer , Split Core Current Transformer, clamp on current transformer ,zero-flux current transformer ,three phase current transformer ,hall sensors .
Current probe(specifications)
|
| Rated Primary current | 0.1A-1000A |
| Output signal | mA/A or mV/A |
| Maximum Non-Destructive Current | 2000A |
| Basic Accuracy | 1% |
| Safety | CAT III 600V |
| Dielectric Resistance | 1000MOhms @ 500 Vdc |
| Case Material | Polypropylene resinUL flame retardant rating 94-V0 |
| Voltage rank | 600Vac(isolated condition), 30Vac(bareness condition) |
| Maximum voltage | 600Vac |
| Useable frequency | 10Hz - 100kHz |
| Maximum Cable Diameter | 2.05 inches (52 mm) |
| Dimensions | 4.37x8.5 x1.77 in. (111x216x45 mm) |
| Operating Temperature | -10ºC to +50ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
Current probe(features) |
| Good appearance |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
| Current or three specs voltage output signal |
Current probe(applications)
|
| Current, power energy,monitoring devices |
| Power Factor Correction devices |
| Oscilloscope and harmonic waves analyzer |
Part number | Input current | Rated Output | Frequency
(Hz) | Secondary
Burden
Resistance | Accuracy
Class |
| GWCTC1535 | 0.5-1000A | 1mA/A | 40-1KHZ | ≤10 Ohms | 1% |
| 400-1000A | 5A,1A | 50/60HZ | ≤2VA | 1% |
| 0.1-10A | 100mV/A | 10-1000K | ≥100KOhms | 3%±10mV |
| 0.1-100A | 10mV/A | 2%±5mV |
| 1-1000A | 1mV/A | 1%±1mV |
| 0.5-1000A | 4-20mA | 50/60HZ | ≤100 Ohms | 1% |

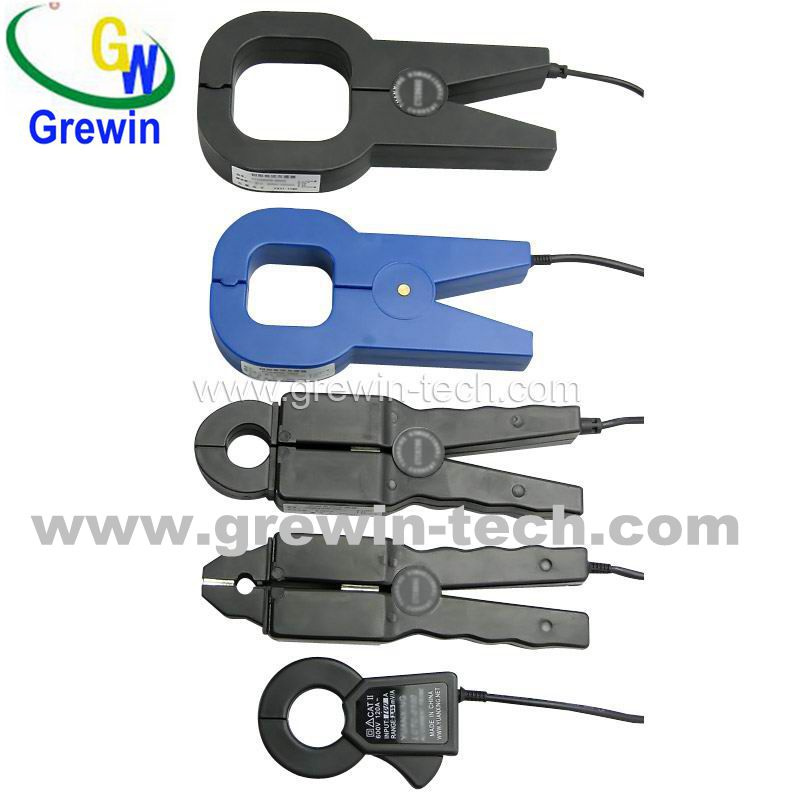

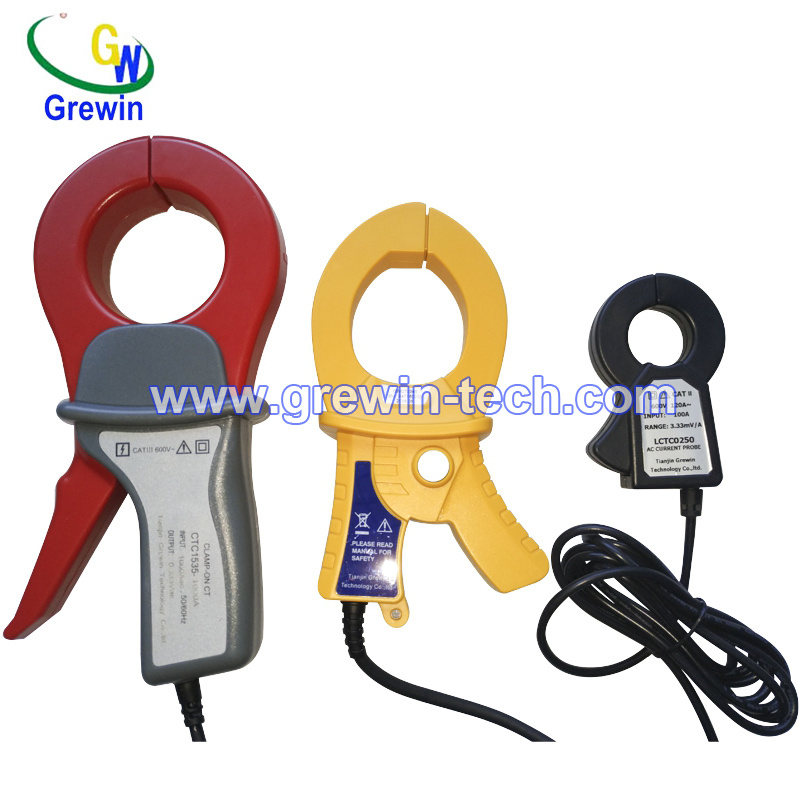

We can produce following similar clamp on current transformer:

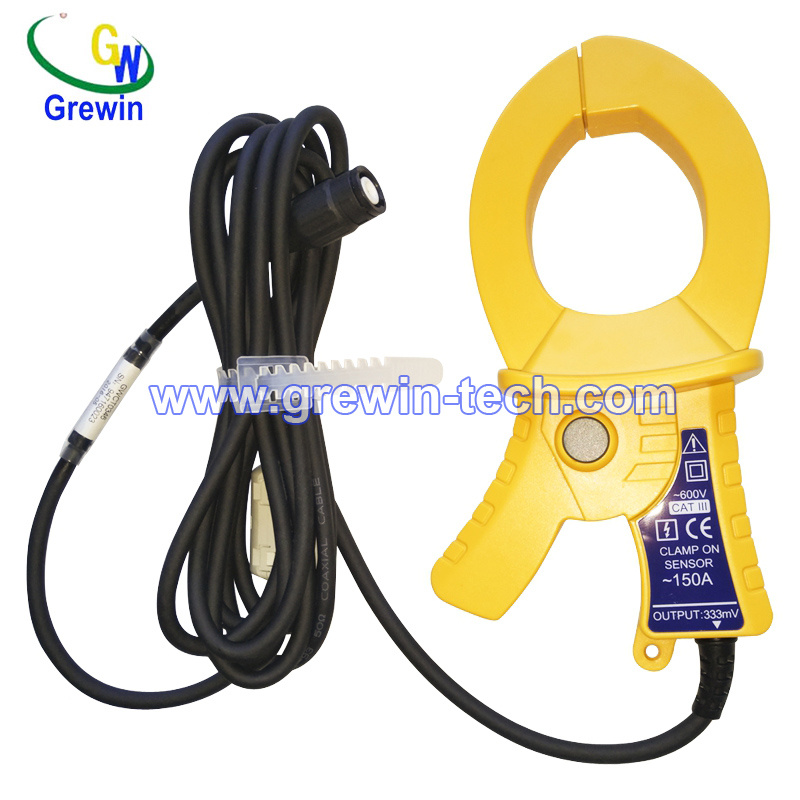

1-200A Clamp on current transformer(specifications) |
| Rated Primary current | 1-200A |
| Turn ratio | 1:1000 1:2000 1:2500 |
| Output | 0.333V 1.5V |
| Accuracy | 0.1, 0.2 ,1.0 Class |
| Second burden(Ohms) | <=5, <=50 ,>=100k |
| Dielectric Resistance | 1000MOhms @ 500 Vdc |
| Case Material | Polypropylene resinUL flame retardant rating 94-V0 |
| Voltage rank | 600Vac(isolated condition), 30Vac(bareness condition) |
| High Potential | 2500Volts/min |
| Frequency Range: | 50/60Hz |
| Operating Temperature | -25ºC to +70ºC |
| Standard | IEC 60044-1 |
| Accessories | Supplied with feet for base mounting if required |
| Certification | RoHS compliant CE&ETL approved |
Clamp on current transformer(features) |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
Clamp on current transformer(applications) |
| Silicon Steel cores provide moderate accuracy and lower cost for appropriate current measurement |
| Nickel Alloy cores are suitable for applications that require the highest accuracy with minimal phase angle error. Applications would include electric power quality monitoring devices |

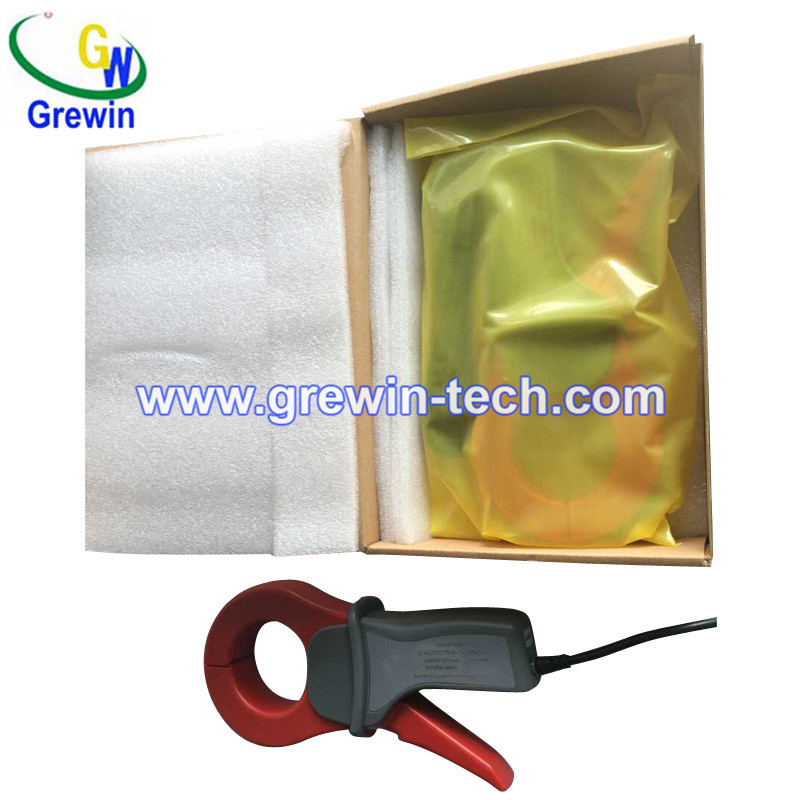

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Our factory
Tianjin grewin technology co., ltd . is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing
many kinds of electronic components. Include electronic transformers,
We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS
marks.
Grewin current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
