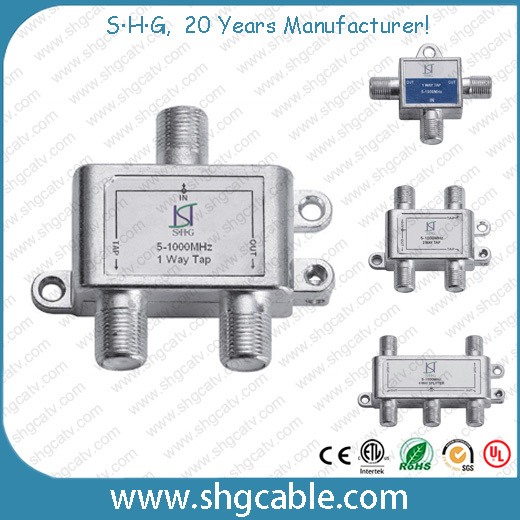

5-1000MHz Indoor 1 Way CATV Tap (TAP106A)
| Price: |
US $ 0.45-0.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TAP106A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CATV Passives: |
5-1000MHz |
| Function: |
Signal Transmitting Device |
| Certification: |
Reach |
| Condition: |
New |
| Type: |
CATV Taps and Splitters |
Product Description
SHG high quality 5-1000MHz Indoor 1 Way CATV TAP.
1. Low insertion loss, high return loss and isolation.
2. Die cast aluminum housing
3. RF frequency range 5 to 1000 MHz
4. CE, RoHS, ISO9001
Features:
AC/RF bypass switch to provide uninterrupted downstream-subscriber service
Economical two-step upgrade to power passing matches incremental expenses with new revenues
AC blocking capacitors on each port to minimize RF signal distortions
Surge-resistant circuitry srctm for maximum reliability
1, 2, 4, 8-way capability for maximum design flexibility
Housing backwards compatibility supports economical faceplate upgrades
System open circuit time 0 ms
Mechanical:
Al360 housing with powder coating for superior environmental protection.
Sealed and swaged extended f-ports for maximum resistance to moisture ingress.
Tin plated brass f-ports to ensure a corrosion-resistant drop interface.
Operating temperature from -40degree to +60 degree.
EMI shielding minimum -110 dB.
Pressure test at 10 psi for 60 seconds under water.
Others:
CATV outdoor taps (power passing)
CATV outdoor taps (non power passing)
CATV outdoor splitters

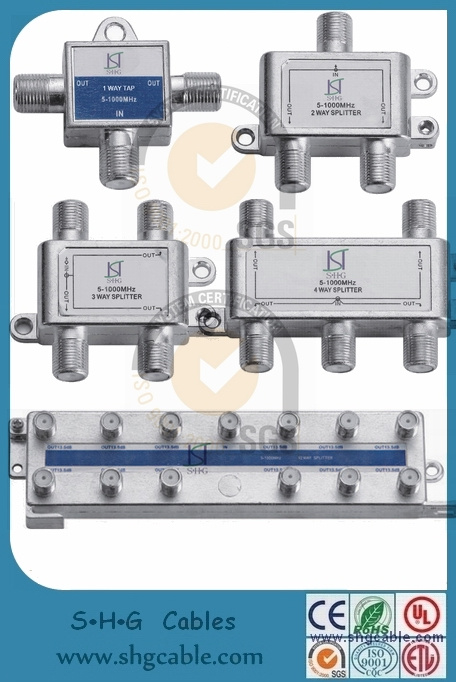

CATV indoor taps and splitters
CATV power inserters
CATV power supply| ITEM | Model: SPDR-xW |
| | SPDR-2W | SPDR-3W | SPDR-4W |
Splitting Loss
(dB) | 5-50MHz | 3.5 | 5.8 | 7.0 |
| | 50-550MHz | 3.6 | 6.0 | 7.0 |
| | 550-750MHz | 3.8 | 6.5 | 7.5 |
| | 750-1000MHz | 3.8 | 6.5 | 7.5 |
Isolation
(dB) | 5-50MHz | 30 | 28 | 28 |
| | 50-550MHz | 30 | 28 | 28 |
| | 550-750MHz | 30 | 28 | 28 |
| | 750-1000MHz | 30 | 28 | 28 |
| Return Loss (dB) | 5-50MHz | 22 | 20 | 20 |
| | 50-550MHz | 20 | 20 | 20 |
| | 550-750MHz | 20 | 20 | 20 |
| | 750-1000MHz | 18 | 18 | 18 |
| Shield Factor (dB) | ≥110 |
| Dimension (mm) | 54x47x15.5 | 54x47x15.5 | 76x47x15.5 |
| Weight (g) | 28.5 | 31.5 | 41 |
