| Prod Model: |
DHD380, DHD360, Mission50, Sd6, Numa120 |
| Diameter: |
1" to 16" |
| Material: |
Tungsten Carbide, High Manganese Steel |
| Processing Type: |
Forging |
| Pressure: |
High Pressure |
| Transfer: |
Air/Sea/Express |
| Color: |
Request |
| Advantage: |
High Performance |
| Product Name: |

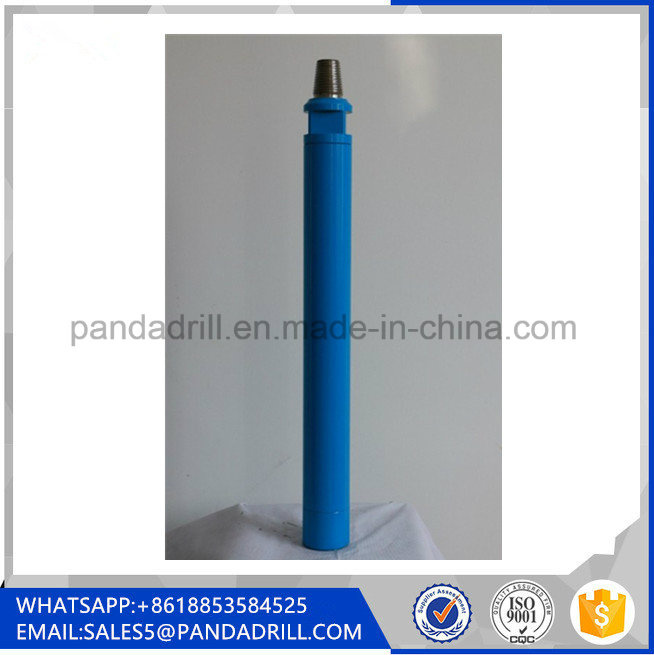

Down The Hole (DTH) Hammer |
| Inserts Design: |
Spherical; Ballistic; Parabolic |
| Certification: |
API |
| Condition: |
New |
| Type: |
Drill Tools |
| Application: |
Well Drilling,Coal Mining,Quarry Drilling |
Product Description
Product Description:Our hammer and bits are made of high quality alloy steel with advanced heat treatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.
All the products are manufactured as per the international standard and well compatible with the brand of Atlas Copco, Ingersoll-Rand, Sandvik etc
Main Features
1) DTH hammers series we supply
A) High pressure series
B) Medium pressure series
C) Low pressure series
D) High efficiency high pressure series
E) Reverse circulation series
2)Outside diameters: 61.2~275mm
3)Drilling diameter: 68~1000mm
Application
They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
Competitive Advantage:
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatmentSpecification: | Type | Model | Length
(mm) | Weight
(kg) | External Dia.(mm) | Hole Range(mm) |
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| SD4 | 1084 | 40.5 | Φ99 |
| QL4 | 1097 | 41 | Φ99 |
| Mission40 | 1005 | 40 | Φ99 |
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| SD5 | 1175 | 72.5 | Φ125 |
| QL5 | 1147 | 73 | Φ125 |
| Mission50 | 1110 | 68.5 | Φ125 |
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| SD6 | 1261 | 100 | Φ142 |
| QL6 | 1212 | 95 | Φ146 |
| Mission60 | 1161 | 90 | Φ146 |
| 8 inch | D85 | 1492 | 188 | Φ180 | Φ195-254 |
| SD8 | 1463 | 192 | Φ180 |
| QL8 | 1465 | 182 | Φ180 |
| Mission80 | 1338 | 176 | Φ180 |
| 10 inch | SD10 | 1502 | 290 | Φ226 | Φ254-311 |
| NUMA100 | 1510 | 288 | Φ226 |
| 12 inch | DHD1120
NUMA120
NUMA125 | All can be designed according to your requests! |

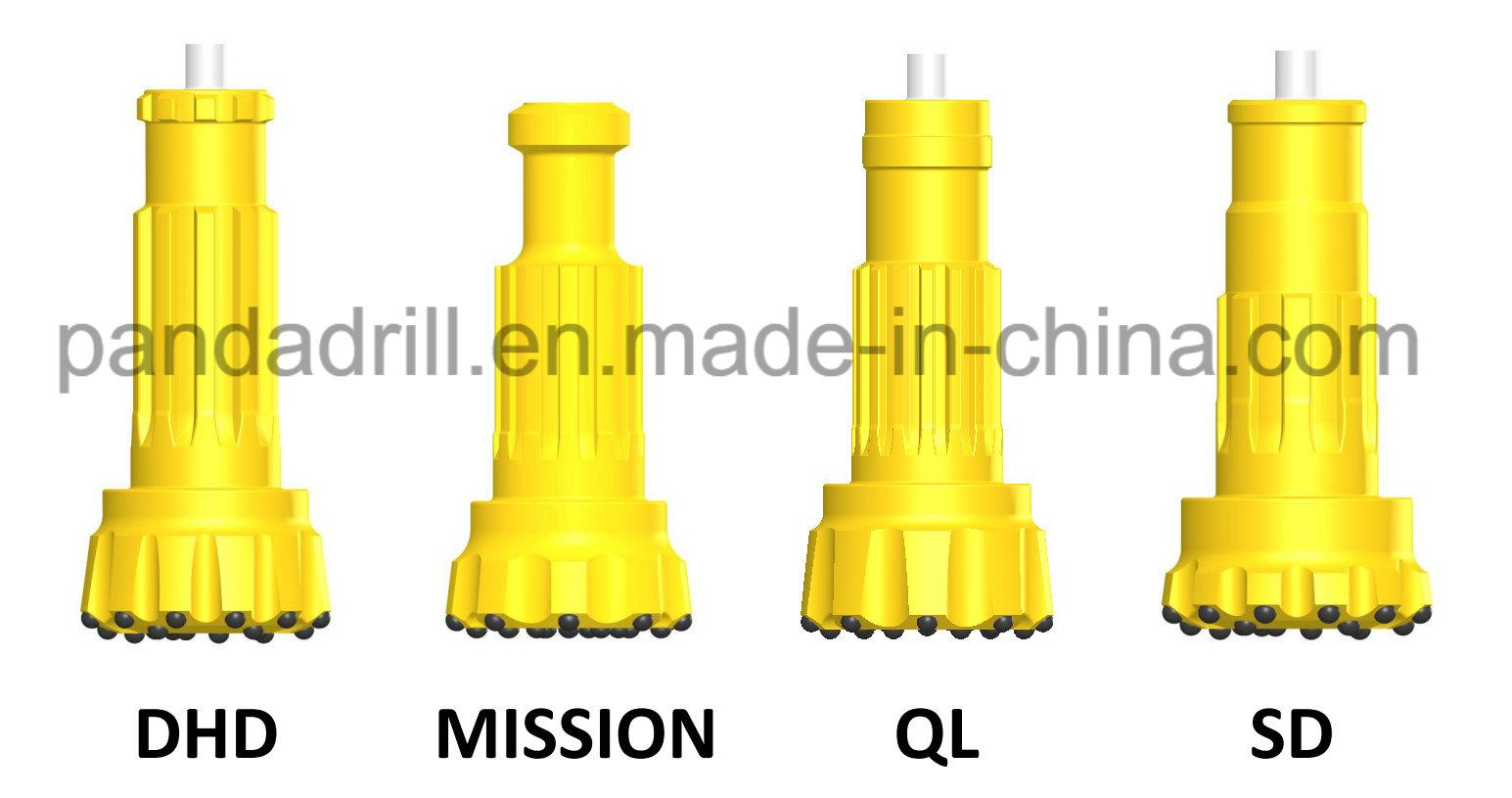

Different Shanks:
Connection:
FAQ:Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
