| Price: | US $ 3150-5258/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | R5209/R5609/R6709 V8.2 V9.2 |
|---|---|
| Process: | Finishing Process Machine |
| Usage: | Process The Paper or Book After Printing |
| Product Type: | Paper Cutting Machine |
| Automatic Grade: | Semi Automatic |
| Industrial: | Post-Press Equipment |
| Classification: | Single-blade Cutter |
| Driven Type: | Hydraulic |
| Blade Material: | HSS |
| Computerized: | Programmed Control |

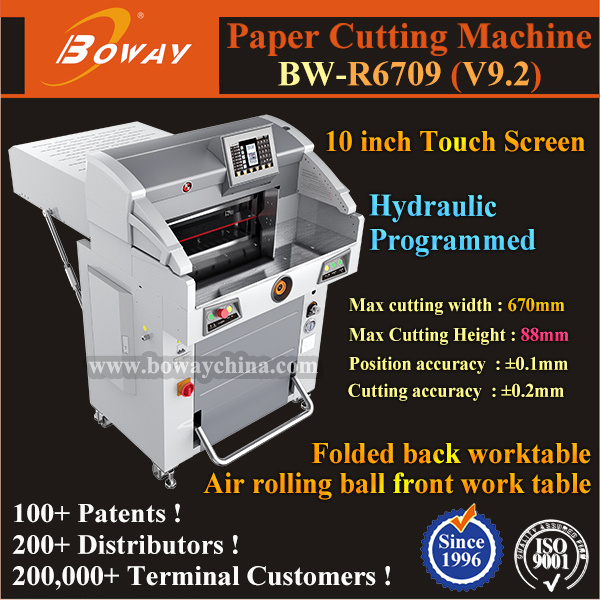

| R5209 R5609 R6709 Hydraulic Programmed Auto Cutter Video : http://bowaychina.en.made-in-china.com/custom/R5209-R5609-R6709-Hydraulic-Programmed-Paper-Cutter-oEgnMhDjvxpz.html |
******The pricture and specifications are subject to change without prior notice. ******
******Any question, please confirm with our sales manager.******
******All rights of photos and imaging reserved by Boway. ******
| Brand | BOWAY www.bowaychina.com | |||||

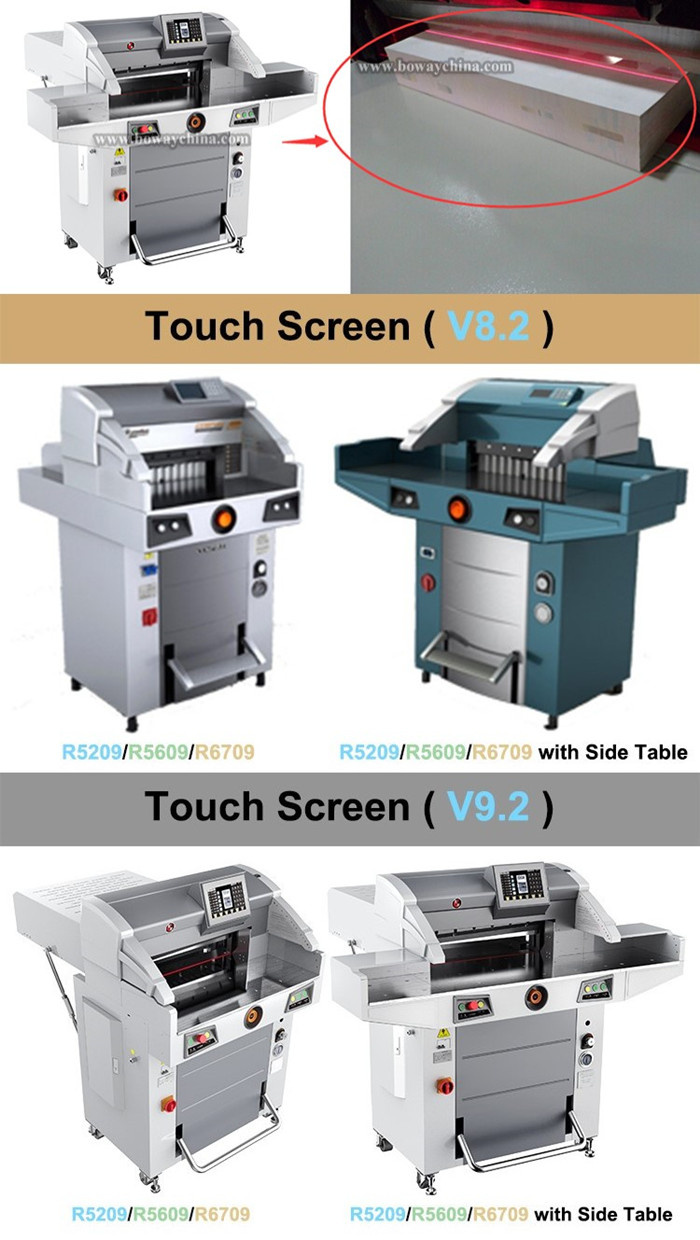

| Type | R5209 V8.2 | R5209 V9.2 | R5609 V8.2 | R5609 V9.2 | R6709 V8.2 | R6709 V9.2 |
| Max Cutting Size (mm) | 520*520 | 520*520 | 560*560 | 560*560 | 670*670 | 670*670 |
| Max Cutting Thickness (mm) | 85 | 88 | 85 | 88 | 85 | 88 |
| Min. Cutting Size (mm) | 20 | 20 | 20 | 20 | 20 | 20 |
| Position Accuracy (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Cutting Accuracy (mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Ball table | √ | √ | √ | √ | √ | √ |
| Press Way | Hydraulic +Pedal | Hydraulic +Pedal | Hydraulic +Pedal | Hydraulic +Pedal | Hydraulic +Pedal | Hydraulic +Pedal |
| Cutting Way | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Type | R5209 V8.2 | R5209 V9.2 | R5609 V8.2 | R5609 V9.2 | R6709 V8.2 | R6709 V9.2 |
| Display | 7" Touch Screen | 7" Touch Screen | 7" Touch Screen | 10.2" touch screen | 7" Touch Screen | 10.2" touch screen |
| Program | √ | √ | √ | √ | √ | √ |
| Arithmetic | √ | √ | √ | √ | √ | √ |
| Frequency Conversion Motor | / | Optional | / | Optional | / | Optional |
| Push Motor | Step motor | Servo motor | Step motor | Servo motor | Step motor | Servo motor |
| Push Speed | 3.5m/m | 7m/m | 3.5m/m | 7m/m | 3.5m/m | 7m/m |
| Power | 220V(110V) ±10%, | 220V(110V) ±10%, | 220V(110V) ±10%, | 220V(110V) ±10%, | 220V(110V) ±10%, | 220V(110V) ±10%, |
| Side Table | Optional | Optional | Optional | Optional | Optional | Optional |
| Machine Size (mm) | 1440x800x1430(side table size :700) | 1440x800x1430(side table size :700) | 1455x920x1470(side table size :700) | 1455x920x1500(side table size :700) | 1565x1030x1470(side table size :700) | 1565x1030x1500(side table size :700) |
| N.W: (Kg) | About 420 | About 420 | About 470 | About 470 | About 520 | About 520 |

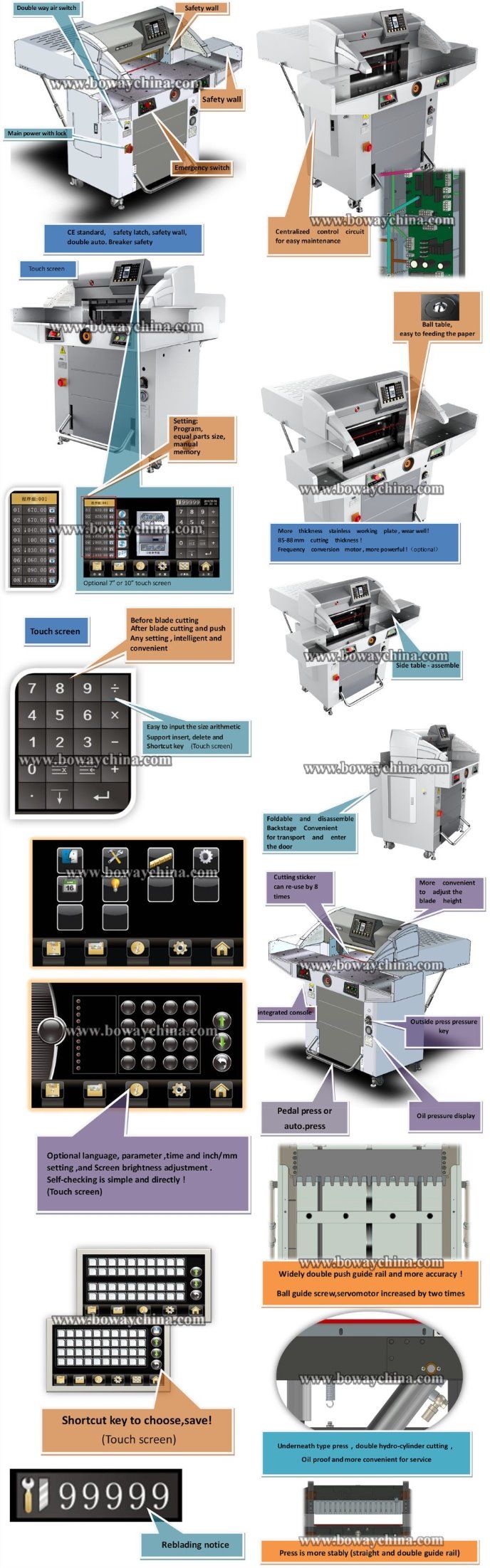

Feature :
Highlight
♦ Touch Screen
♦ Folded back worktable
♦ Air rolling ball front work table
♦ CE standard, safety latch, safety wall, double auto. Breaker safety
♦ New instruction, Higher accuracy
♦ Touch screen : Optional 7" or 10" touch screen
♦ Setting: Program, equal parts size, manual memory
♦ Before blade cutting,After blade cutting and push,Any setting , intelligent and convenient
♦ Easy to input the size arithmetic,Support insert, delete and Shortcut key
♦ Optional language, parameter , time and inch/mm setting ,and Screen brightness adjustment .Self-checking is simple and directly !
♦ Shortcut key to choose,save !
♦ Centralized control circuit for easy maintenance
♦ Ball table, easy to feeding the paper
♦ More thickness stainless working plate , wear well !
♦ 85-88 mm cutting thickness !
♦ frequency conversion motor, more powerful !(optional)
♦ Side table - assemble
♦ Foldable and disassemble backstage
♦ Convenient for transport and enter the door
♦ Cutting sticker can re-use by 8 times
♦ integrated console
♦ Pedal press or auto.press
♦ More convenient to adjust the blade height
♦ Outside press pressure key
♦ Oil pressure display
♦ Widely double push guide rail and more accuracy ! Ball guide screw,servomotor increased by two times (optional)
♦ Underneath type press,double hydro-cylinder cutting,Oil proof and more convenient for service
♦ Press is more stably (straight and double guide rail)
Trading Terms
| Terms of payment | T/T, L/C, Westion Union. |
| Terms of trade | FOB, CFR, CIF |
| Mode of transportation | By Sea, By Air |
| Port of shipment | Shanghai or Ningbo |
| Rerfence date of delivery | About 15 days, Instant supply of hot-selling products |
About Shipment
| Certificate of Fumigation | √ |
| Certificate of Original | CO, FORM A, FORM F, FORM E etc. Guarantee customer to import goods at the preferential tariff rate |
| Certificate of Inspection | √ |
| Documents Authentication | √ |
II. Warranty
We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
♦ Improper or inadequate maintenance
♦ Misusage and mishandling
♦ Damaged by a wrong voltage use
♦ Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:

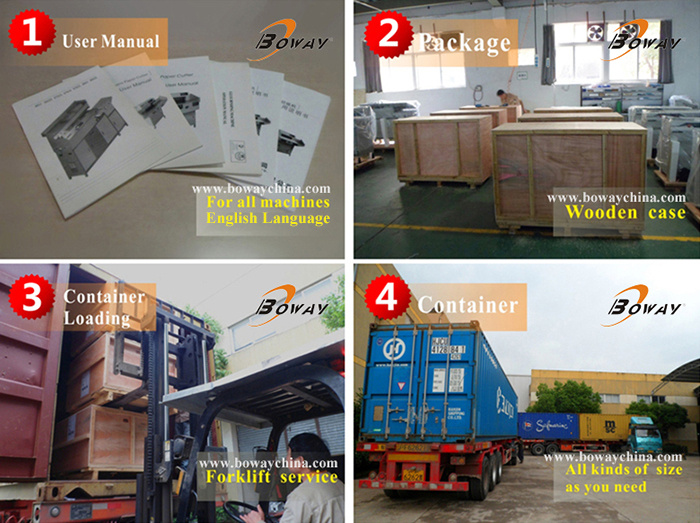

♦ User Manual in English
♦ Operation Video
♦ Support on-line
♦ You can send your technician to our factory to attend the skill training.
FAQ
1.What's the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and
some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It's depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
7.What's the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What's the delivery time?
Within 15 days after get the payment
