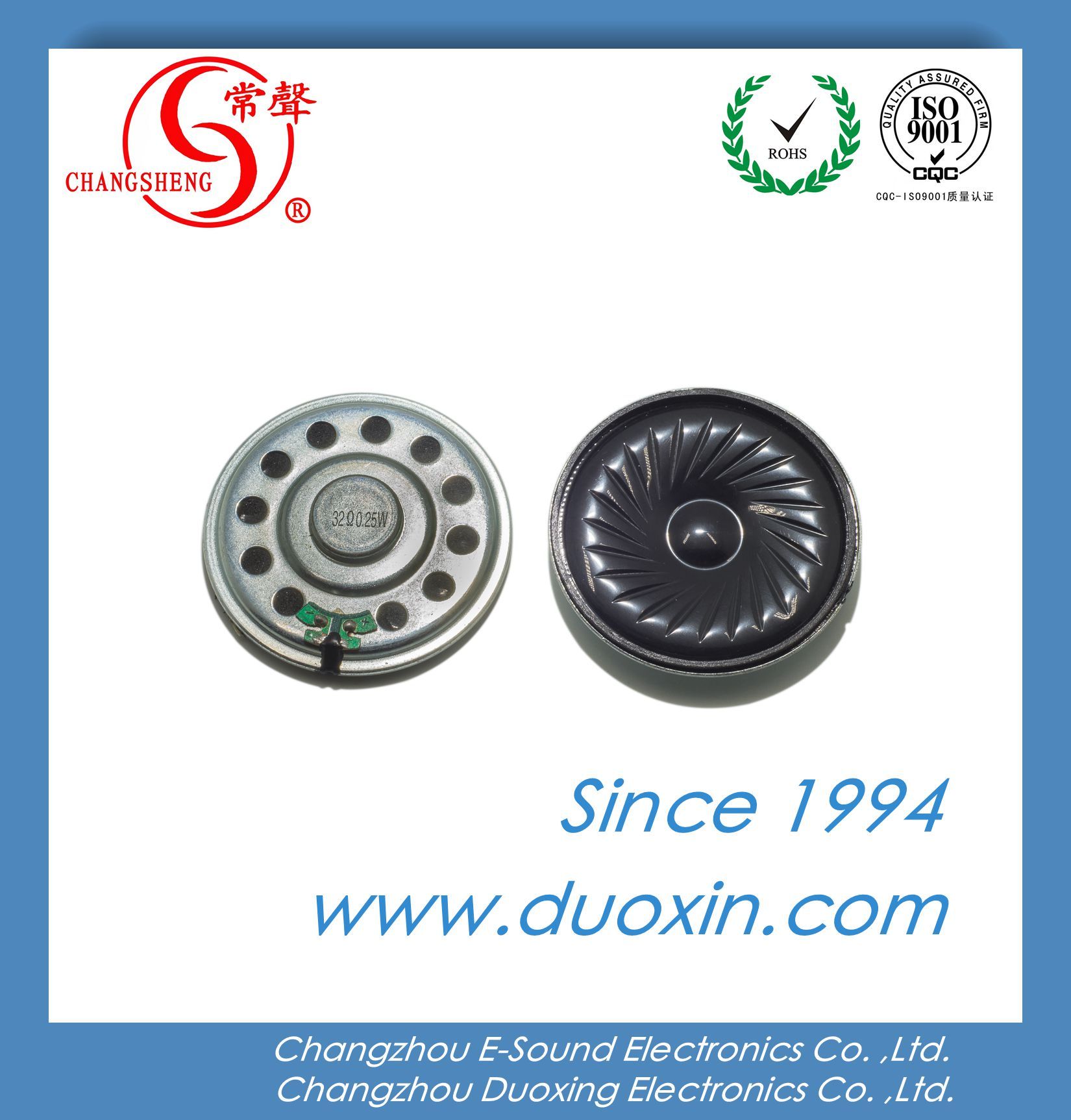

57mm Mylar Speaker 8 Ohm 0.5W for TV&Car&Interphone
| Price: |
US $ 0.35-0.45/Piece |
| Min Order: |
3000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
DXI57N-A |
| Diameter: |
57mm |
| Power: |
0.5W |
| Impendance: |
8ohm/16ohm/32ohm |
| Resonance Frequenc: |
200-5kHz |
| Height: |
7.6mm |
| Spl: |
83dB |
| Amplification Type: |
Active |
| Speaker Material: |
Metal |
| Usage: |
TV |
| Adjusting Method: |
Touch-Control |
| Sound Channel: |
5.1 |
| Built-in Battery: |
Without Battery |
| Special Function: |
Radio |
Product Description

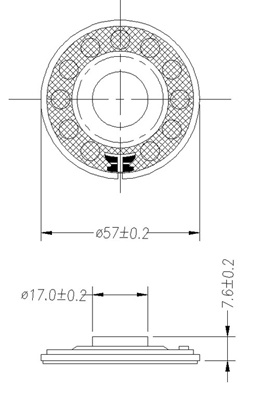

Loudspeaker with diameter 57mm mylar speaker DXI57N-A | Model | DXI57N-A |
| Impedance | 8 ohm |
| Nominal Power | 0.5 w |
| Maximum Power | 1.0 w |
| Resonance Frequency(Fo) | 450 Hz |

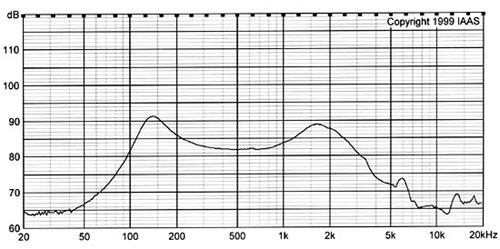

| Response: | 200~5KHz |
| S.P.L: | 83 dB |
| Height | 7.6 mm |
| Main Product/ | Speaker, Buzzer, Receiver, Microphone | | Year/ | 2015-10-01 |
| Company Name/ | Changzhou Duoxing(E-Sound) Electronics Co., Ltd. | | | |
| Address/ | 11th Dongxin Road,Niutang,Wujin,Changzhou City,Jiangsu PR,China | |
| Office Phone No./ | 86-0519-86362206,86362208 | | | | | |
| Fax No./ | 86-0519-86362209 | | | | | | |
| Website/ | http://www.duoxin.com | | | | | | |
| | | | | | | | |
| Business Condition | Manufacturer/ | Trading/ | Distributor/ | | | Others/ |
| √ | √ | | | | |
| Consititution Of Company | Partnership/ | Pvt.Ltd | Stock Co. | Govt.Co. |
| √ | | | | | | |
| Sales Team/ | 10 | R&D Team/ | | | | 8 |
| Production Team/ | 250 | QC Team/ | | | | 13 |
| Factory Information | Available Area | Location/ | | | Work Day | Production Capacity |
|
| | | | |
|
|
| Nearest Sea Port | Nearest Air Port | |
| | | | | |
| | |
|
| | | |
| | 10,000 square meters | Shanghai | Shanghai | | 6 days | 3000K pcs |
| | | | | | | | per month |
| Company Service | Samples | Free Samples For Testing,OEM Service,Design Service,Buyer Label |
| | | | | | | |
| Quality Control | 1st QC: Raw material Incoming quality inspection | |
| | |
| | | 2st QC: Semi-finished products / inspection | |
| | | 3st QC: Finished assembly / inspection | | | |
| | | 4st QC: Carton Box & Packing | | | |
| | Certificate | ROHS,ISO9001:2008 | | | |
|
Changzhou Duoxing Electronics Device Factory Founded in 1989.
In 1994, reset up Changzhou Duoxing Electronics Co., Ltd (Changzhou E-sound Electronics Co., Ltd) with Taiwanese.
Duoxing is a professional manufactory specializes in developing, manufacturing and sales on electro-acoustic products.
Our main products include speaker, buzzer, microphone, receiver and others, which are mainly used in medical equipment, automotive instrumentation, automotive electronics, security, notebook computers, computer motherboards, cordless phones, uninterruptible power supplies, alarm, digital cameras, Bluetooth headsets, GPS and household appliances.
With 22 years professional service team, Duoxing can offer the one-stop service for all of our clients. Currently our clients covers more than 30 countries and areas.
Duoxing has been insisting on advanced management philosophy and strict quality control process to the practice, so it successfully got the international third party certificate, like RoHS certificate and ISO9001: 2008 certificate.
We will put more high-quality products to market, to the customers in future!
