| Prod Model: |
GLF345 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
High Manganese Steel |
| Application: |
Rock Drilling; Mining |
| Quantity: |
Small Order Is Accepted |
Product Description
Our company is specialising in drilling rigs and drilling parts for decades. We have exported to more than 30 countries all over the world. We have kinds of drilling rigs, such as DTH (Down The Hole) drilling rig, Water well drilling rig, Oil well drilling rig, Piling drilling rig with different types of Truck Mounted, Trailer Mounted and Crawler Type. For drilling parts, we have the follwings: DTH hammers/bits, Tricone bits, PDC Bits, Button Bits, Chisel Bits, Drill Pipe, Pick Cutters etc.
Our DTH hammer and bits are compatible with CIR, DHD, QL, SD, Mission, etc. Series of Atlas and Sandvik world famous brands. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

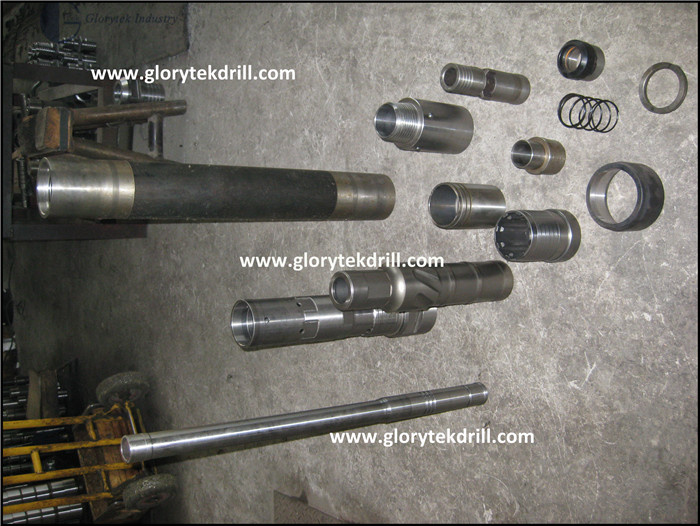

1. Description of DTH hammer
1) Size range 3'', 3.5'', 4'', 5'', 6'', 8'', 10'', 12'' etc
2) Matierial: High Manganese Steel, high manganese steel etc
3) Suitable DTH bits to match with kinds of DTH hammers
4) Special hardness treatment
5) Simple structure, easy operation
2. Different types of DTH hammer
(1)High Air Pressure DTH Hammers
(2)Medium Air Pressure DTH Hammers
(3)Low Air Pressure DTH Hammers
(4)High Efficiency High Pressure DTH Hammers
(5)Through Reverse Circulation DTH Hammers
|
Item |
GLF335 |
GLF345 |
GLF355 |
GLF365 |
GLF385 |
GLF3105 |
GLF3125 |
|
Drilling Dia. |
90-105 |
110-130 |
135-155 |
160-200 |
200-254 |
254-311 |
311-360 |
|
(mm) |
|
Hammer Length(mm) |
143 |
1281 |
1292 |
1345 |
1578 |
1440 |
1430 |
|
Outside Dia.(mm) |
85 |
105 |
124 |
154 |
190 |
250 |
270 |
|
Center Hole Dia. (mm) |
33 |
36 |
36 |
61 |
61 |
75 |
85 |
|
Working Pressure(Mpa) |
0.7-2.1 |
0.7-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.4 |
0.8-2.4 |
|
Air Consumption (M3/Min.) |
4.2-11.7 |
5.7-14.2 |
6.5-19.3 |
918 |
12-30.8 |
15-34 |
20-37.8 |
|
Torque(N.M) |
475 |
600 |
791 |
950 |
1040 |
1260 |
1250 |
|
Impact Frequency |
≥800 |
≥800 |
800-1200 |
600-1100 |
660-1208 |
660-1230 |
600-1150 |
|
(Times/Min.) |
|
Connection 1 |
API 2-3/8" |
API 2-7/8" |
T 91-3 |
API 4-1/2" |
API 4-1/2" |
API 4-1/2" |
API 4-1/2" |
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.
Scope of products:
Blasthole Drilling Rigs
1: Compressor Integrated Type
2: Compressor Separated Type
Water Well Drilling Rigs
1: Truck Mounted Type
2: Crawler Type
3: Trailer Type
Piling Machinery
1: Rotary Drilling Rigs
2: Anchor Drilling Rigs
3: Auger Drilling Rigs
Drilling Auxiliaries
1: DTH Hammer and Bits
2: Button bit, Chisel bit, Cross Bits
3: Drill Pipe or drill Rod
4: Tricone Bits
5: PDC Bits
6: Downhole motor or Mud Motor
7: Pumps
