| Price: | US $ 2000-5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | single mast lift |
|---|---|
| Load Capacity: | 120kg |
| Control: | Control Panel Both on Ground and Top Platform |
| Model: | Single Mast Lift |
| Lifting Height: | 6-10m |
| Material: | Aluminum Lift |
| Operate: | Manual |
| Moving Method: | Manual Push,with Four Wheels |
| Usage: | Lift Workers to Higher Level |
| Type: | Sjl Single Man Lift |
| Color: | Orange Red or Blue |
| Application: | Warehouse Crane |
| Carrying Capacity: | Light Level |
| Driven Type: | Hydraulic |
| Running Mode: | Moving |
| Feature: | Explosion-Proof |
The personal lift platform offer a safe, quick and easy method of reaching overhead areas. Mostly designed to lift one person, these platforms are extremely compact, lightweight and easy to maneuver.

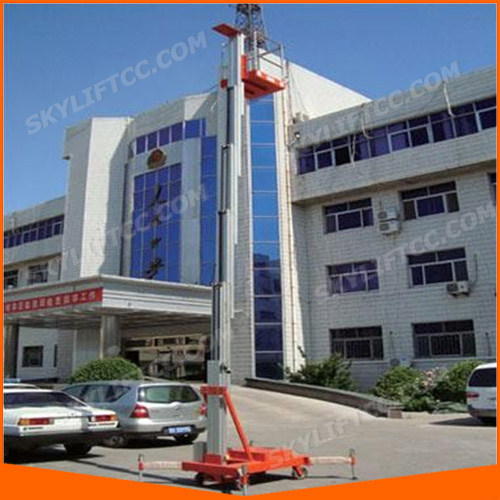

The vertical personnel lift consists of a working platform attached to an aluminium mast that extends vertically, which in turn is mounted on a steel base. These personnel lifts has a reach of up to 10m and capacities up to 120kg.
Features
Personnel Lifts are available in various AC and DC powered models.
Advantages
AC Powered Models (220v/110v etc)
DC Powered Models
| Personnel lift model | SJL-6 | SJL-8 | SJL-10 |
| Max Platform Height (m) | 6 | 8 | 10 |
| Max Working Height (m) | 8 | 10 | 12 |
| Load capacity (kg) | 120 | 120 | 120 |
| Stowed Height (m) | 1.95 | 1.98 | 2.3 |
| Total dimensions (m) | 1.2 x0.8 x1.85 | 1.3x0.8 x1.95 | 1.5X0.9X2.1 |
| Platform Dimensions (m) | 0.55x0.55x1.1 | 0.55x0.55x1.1 | 0.55X0.55X1.1 |
| Motor Power | 220V, 1.1kw | 220V, 1.1kw | 220V,1.5KW |
| Voltage | 220v etc | 220v etc | 220v etc |
