6.5m Depth Crawler Type Vibratory Hammer Pressure Pile Hammer
| Price: |
US $ 1000-30000/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,D/P,Western Union,Money Gram |
| Prod Model: |
HW-800 |
| Piling Speed(M/Min): |
1-2m/Min |
| Min Ground Interspace: |
380mm |
| Main Valve Flow: |
100L/Min |
| Drilling Diameter: |
130-800mm |
| Climb Angle: |
35 |
| Rated Speed: |
2400r/Min |
| Max Drill Depth: |
3600mm |
| Max Travel Speed: |
5km/H |
| Rated Power: |
55kw |
| Weight: |
7200kg |
| Type: |
Vibration Piling Machine |
Product Description

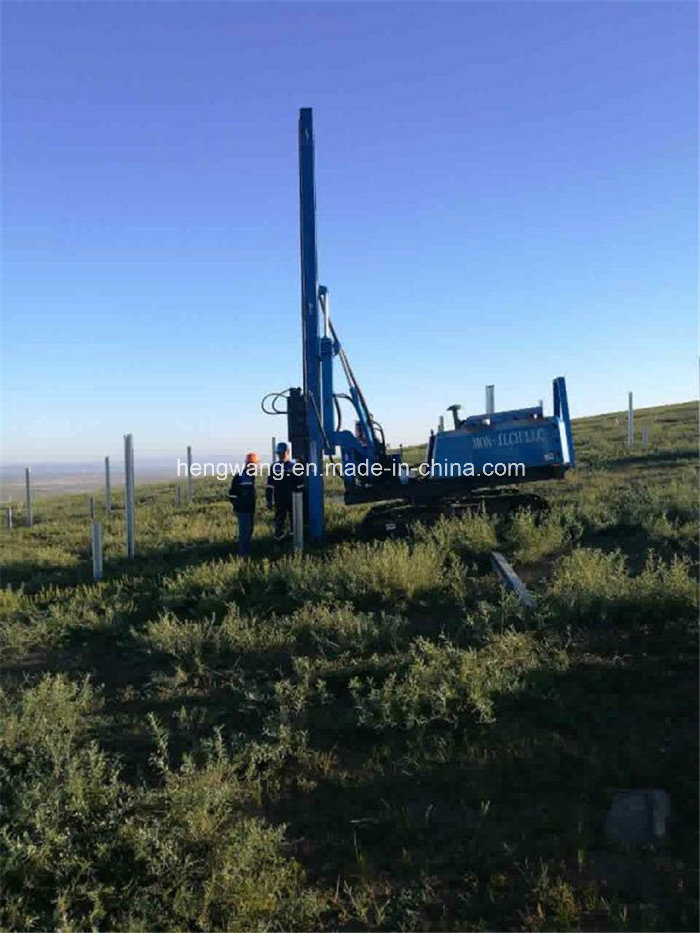

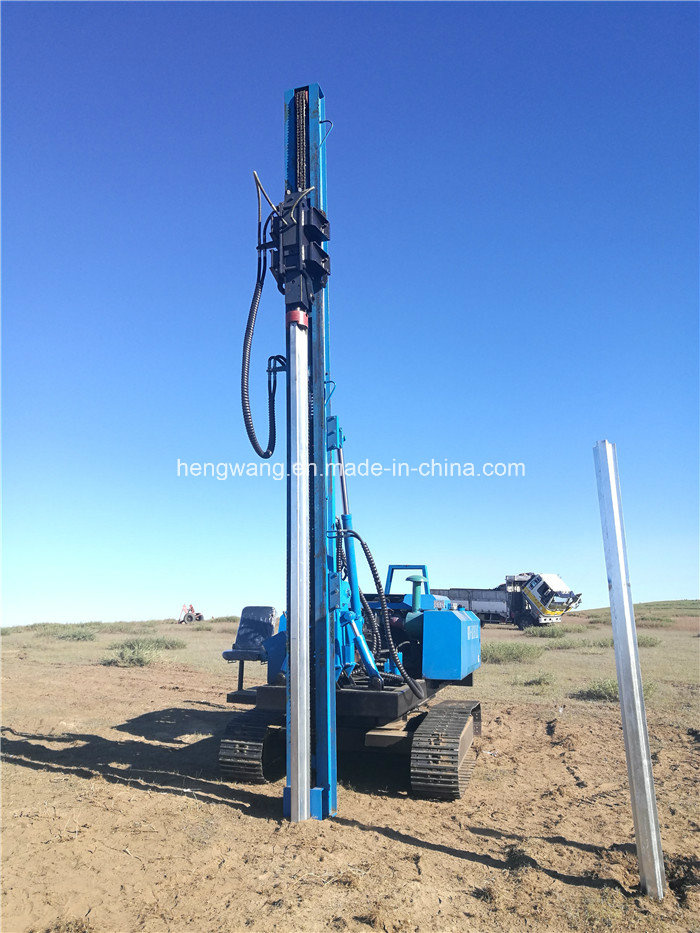

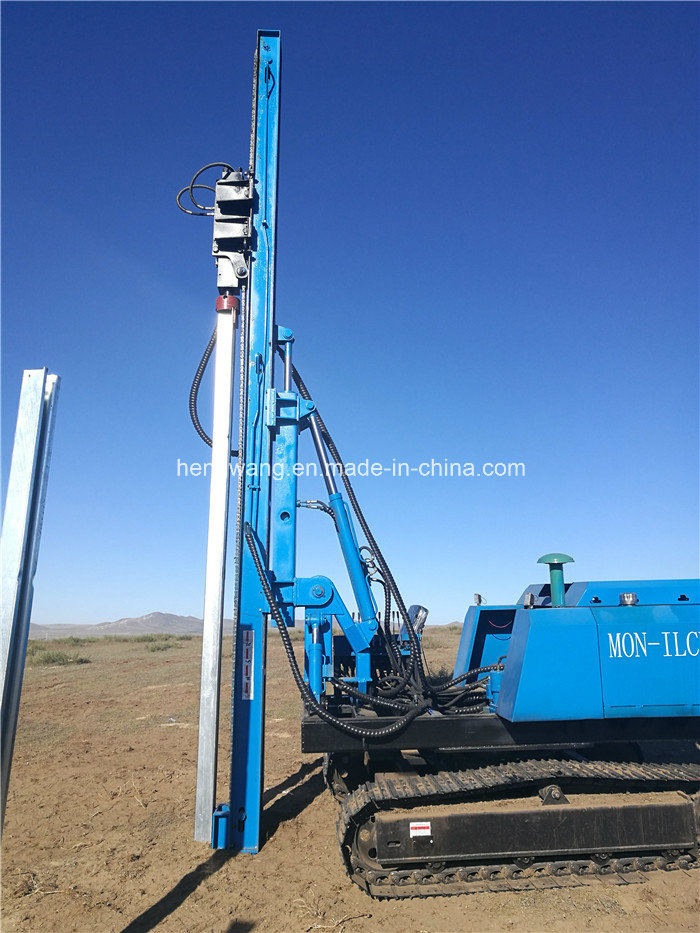

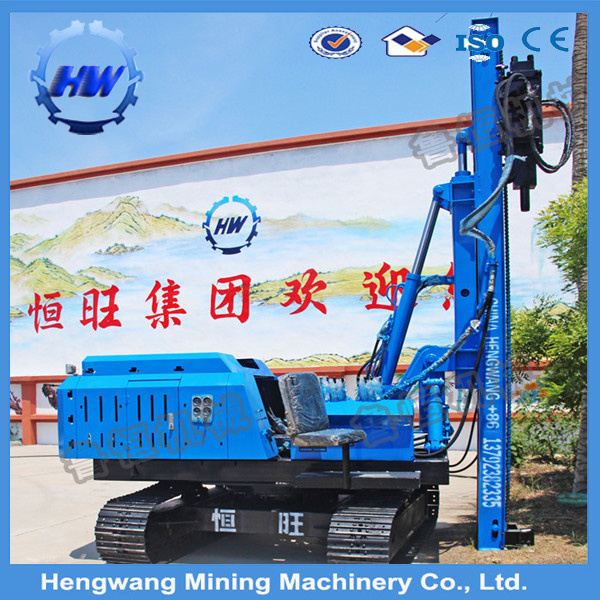

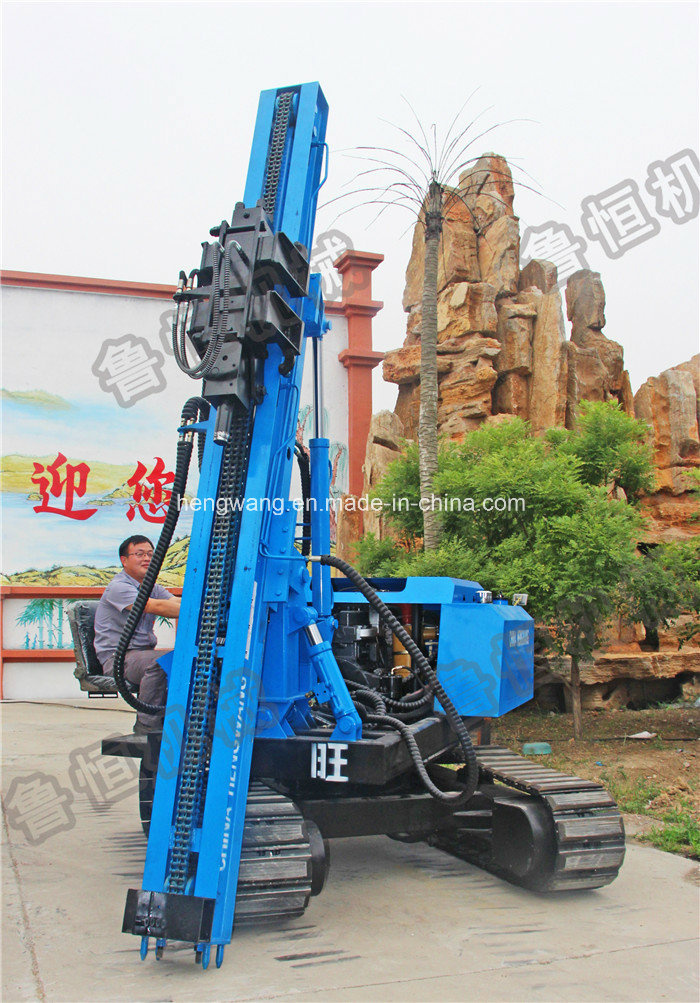

6.5m Depth Crawler Type Vibratory Hammer Pressure Pile Hammer
Pile Driver
Pile driving speed,the average 3 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.
Oil province,is a common driver uses around half of a year can be a driver left money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
Crawler walking,high walking and climbing ability
The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
Main Parameter
| 1 | Diesel engine power | 65kw |
| 2 | Walking motor torque (max) | 5700N.M |
| 3 | Rotary motor max torque(impact drill) | 2000-2500N.M |
| 4 | Rotary motor max torque(Auger drill) | 8000-10000N.M |
| 5 | Pile height (max) | 4500mm |
| 6 | Mast route | 3700mm |
| 7 | Drill depth(impact drill) | 3500mm |
| 8 | Drill diameters(impact drill) | 68-300mm |
| 9 | Drill depth(auger drill) | 3500mm |
| 10 | Drill diameters(auger drill) | 90-500mm |
| 11 | Drill angle(L/R) | 25/-90 ° |
| 12 | Drill angle(forward/backward) | 20/-20 ° |
| 13 | Hydraulic system pressure | 16Mpa |
| 14 | Hydraulic system flow | 90L/min |
| 15 | Travelling speed | 1.6Km/h |
| 16 | Chassis spec | 2500*2000*520mm |
| 17 | Track chassis height | 300mm |
| 18 | Track height above the ground | 230mm |
| 19 | Clambing ability: | ≤ 30° |
| 20 | Track working pressure | 13Mpa |
| 21 | Track rotation angle | 360° |
| 22 | Hydraulic hammer impact power | 6-8T |
| 23 | Dimension(L*W*H) | 4000*2000*6000mm (Working) |
| 24 | Dimension(L*W*H) | 6000*2000*2400mm (Folden) |
| 25 | Net weight | 6000kgs |
