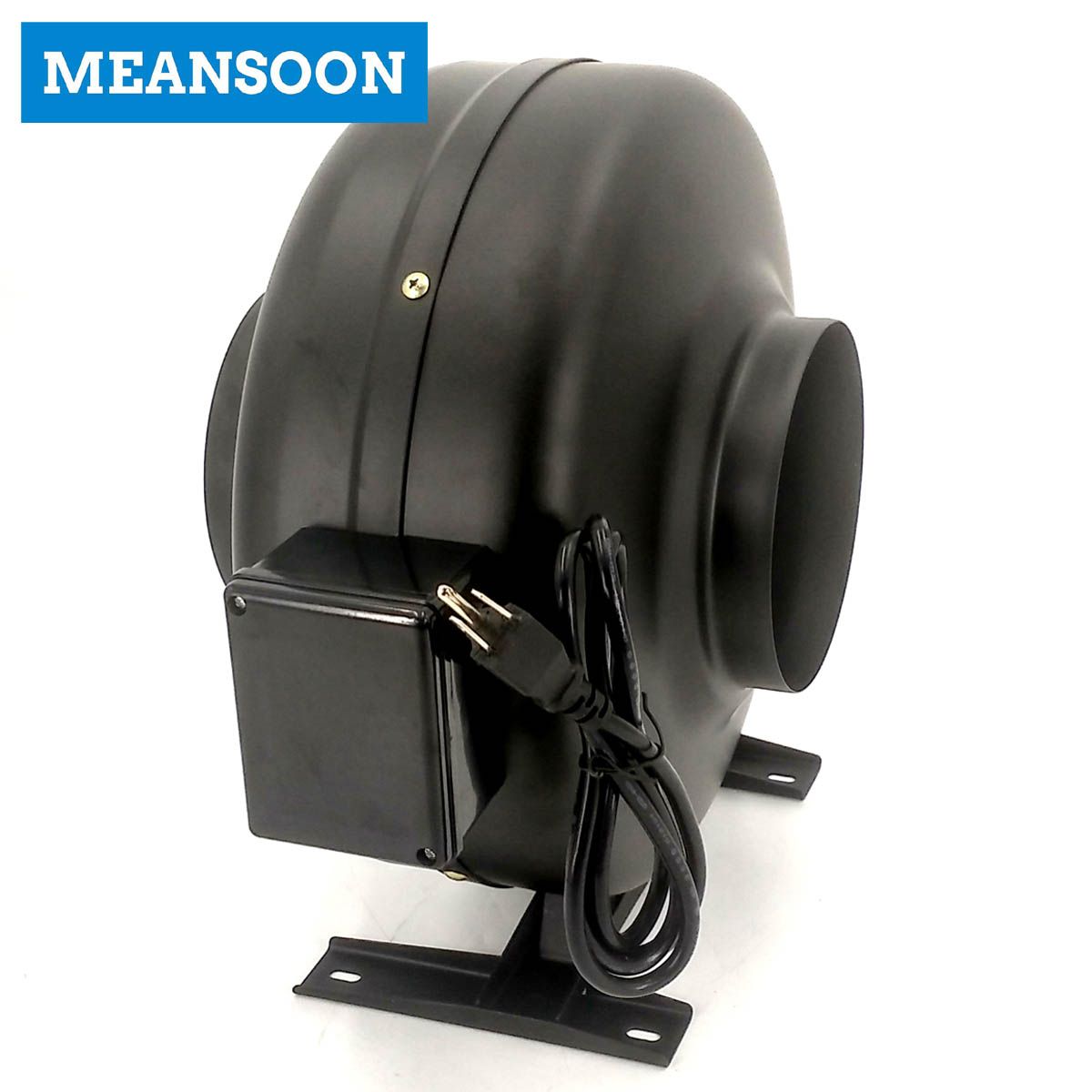

6 Inches Us Power Cord Hydroponics Inline Centrifugal Duct Blower

6 Inches Us Power Cord Hydroponics Inline Centrifugal Duct Blower
Price: US $ 28-41/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: CDF150
Motor: 100% Copper
Housing: Powder Coated in Silver Gray
Bearing: Deep Groove Ball Bearing
Power Supply: 110/120/220/230V~50/60Hz
Blade Material: Plastic
Electric Current Type: AC
Mounting: Duct Fan
Certification: CCC

Product Description

Product Description
Product Name: 6 inches US power cord hydroponics inline centrifugal duct blower
Model: CDF150
Description
6 inches US power cord hydroponics inline centrifugal duct blower represent a technically perfect olution, uniting the advantages of axial fans-straight airflow and easy installation with high pressure stablility, low noise level and high efficiency of the radial fans.
6 inches US power cord hydroponics inline centrifugal duct blower are centrifugal duct fan with backward curved centrifugal impeller inside. They are used widely in all kinds of situation for air transportation, adding pressure and excluding air. Such as at home, apartment, hospital, office, meeting room, market, store, hotel, restaurant, cinema, storehouse, washing room, and so on.
6 inches US power cord hydroponics inline centrifugal duct blower is used to transport clear gas, forbidden for easy flammable, explosive or corrosive gas. Impurity in the gas have to be not more than 100mg/m³.
Features
-Duct fan changed the traditional method of airflow transportation.
-Direction of air in the fan is the same as air in the tube.
-Duct fan is installed into tube at the same axis, which is easy to install, and saving space, easy for maintenance.
-Controllable speed
-Insulation Class F, Protection Class IP44
-Lower starting current, which is 2~3 times of rated current.
-Duct fan have small volume, lower weight, running smoothly, lower noise, smaller vibration,higher pressure.
-Impeller and motor are balanced together dynamically and statically according to quality G2.5.

Techincal brief
Casing made of high quality steel plate, painted in black/grey
Backward-curved centrifugal impeller is made of Plastic PA66
ABS Terminal box
External rotor motor with 100% Copper
C&U deep groove ball bearing, L10 life expectancy is between 30,000 and 50,000 hours,
Operating temperature range-20ºC~60ºC
Insulation Class F
International Protection class IP44


Voltage110V/120V/220V/230V
Frequency50Hz/60Hz
BrandMEANSOON
Packing cartons
Delivery termsFOB Shanghai, CIF & CNF
PaymentT/T 30% as deposit, T/T 70% before shipment
Delivery time15~25 days as different quantity

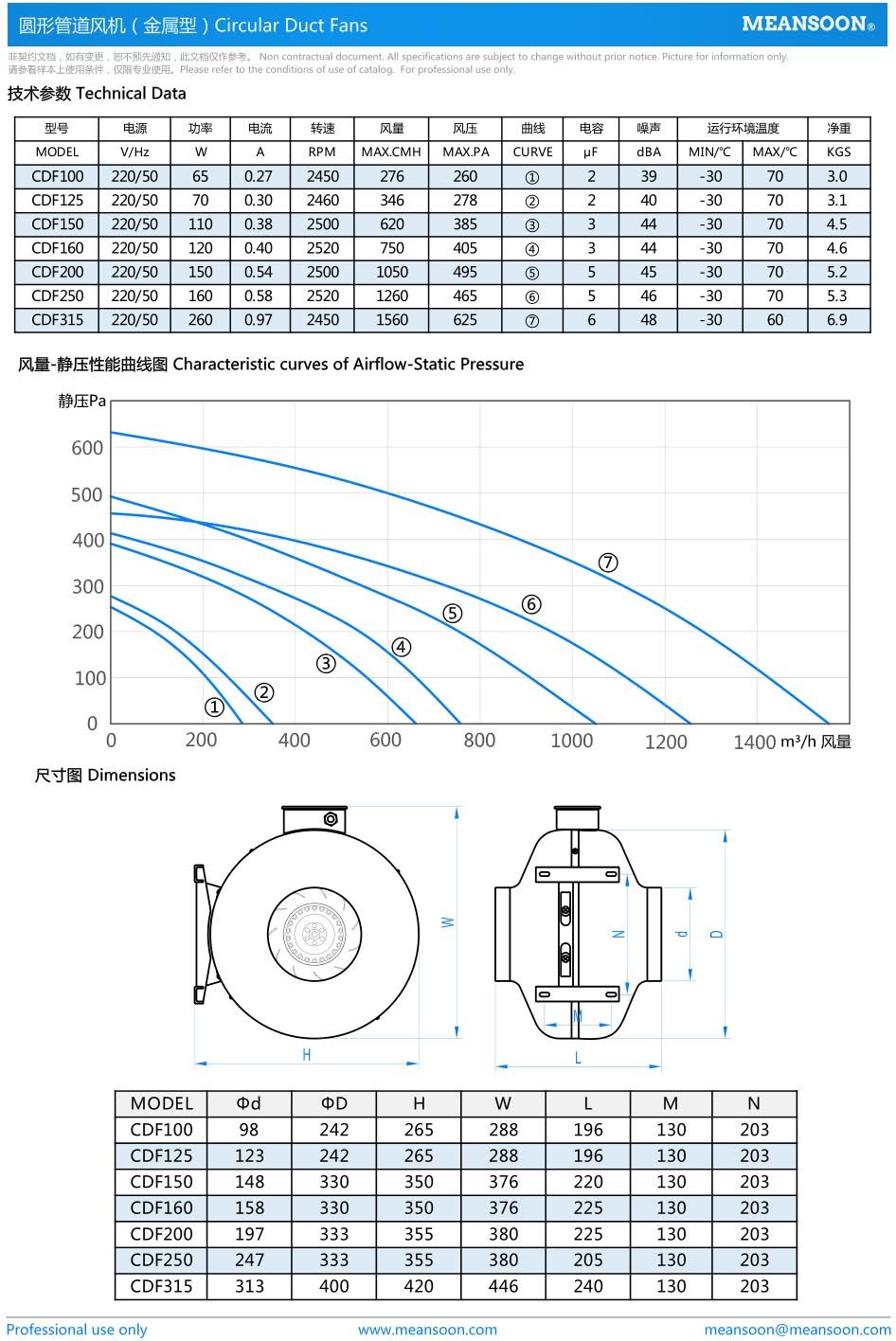

Carton size and Weight
MODELCarton size/CMWeight/KGS
CDF10029×25×223.9
CDF12529×25×224.0
CDF15039×37×245.3
CDF16039×37×245.4
CDF20039×37×246.0
CDF25039×37×246.1
CDF31546×44×268.0

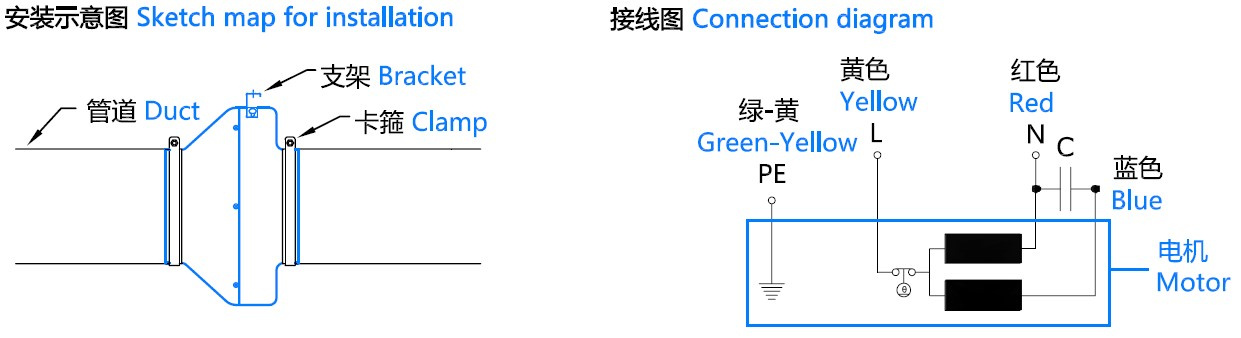

Installation of duct fan
1. Install according to the mark of air direction on fan.
2. Keep the fan installed firmly, check if the grille guard is necessary to use.
3. Prevent fan to crash and drop off when installation.
4. Consider if easy to do maintenance when installation.
5. Connect the wires as connection diagram, which do by qualified electrician.

Operation and maintenance

1. Make sure the fan installed correctly and firmly, grounded and nothing necessary inside of fan, before running.
2. No attrition and crash abnormal noise when testing running.
3. Rotation direction should be the same as mark on fan when testing running.
4. Do maintenance when no running and no power. Fan should be cleared once each year at least.
5. No clearance with high pressure or strong solvent. Do not damage or take out the impeller when cleanout.

Sample charge
We already show the 1 piece price on the price list, and freight shoud be calculated as actual weight.

Advantages
1.Low MOQ: It can meet your need very well.
2.OEM Accepted : We can produce as your demands .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Order Guide
We take great pride in our work and in the wide variety of products that we offer. We are
experienced in servicing the Asia market, European market and Africa market .Please be aware that
our production lead times depend on specific items and item quantities. Our success has been based
on our understanding of the demands. That's why we always ensure that every order is delivered on time.

Check below for more information on placing an order
1Inquiry- You get professional quatation
2Customer confirm the prices, Lead time, Technical demands, Payment item etc.
3We send the Proforma Invoice with meansoon signature
4Customer make the payment for deposit and send us bank receipt (bank slip)
5we tell customer received payment, and arrange production and inform the estimated time
6Close to the end production, we inform custoer to make payment for balance
7Customer let their forwarder contact us to deliver the products for shipment.
8we provide all documents to customer for Customs Clearance, and other documents customer demands.
9Order can be finished when Customer received the goods, satisfied with them.
10Please feedback to us about quality, service, market feedback, suggestion, and we can do better





MEANSOON VENTILATION start in Shanghai since 2009, at the beginning, we just exported all kind of ventilation products all over the world. And then we start to manufacture ventilation by ourselves, HANGZOU MEANSOON is our factory, a professional ventilation manufacturer. Not only motor production line we have, but also whole Mechanical processing equipments, such as CNC turning lathes, punchers, shearing machines, Bending machines, Rolling machines, large Oil pressure machines. We can OEM many kinds of ventilation products and mechanical parts, such as housings of fans, boxes of fans, impellers, brackets and mechanical parts, according to your drawings or samples.

Our newest products: MACF series Anti-corrosive centrifugal fans are from Germany technology, with higher 20~30% airflow and lower 2~3 dB noise than most of fans, at the same size and power. The motor is completely out of airstream, better than all of local this kind of fan.

Our markets include south Asia, Europe, North America, Middle East, North Africa, Australia. We provide products with good quality and reasonable prices to respectable customers, we always provide good services to rest customers' hearts.
