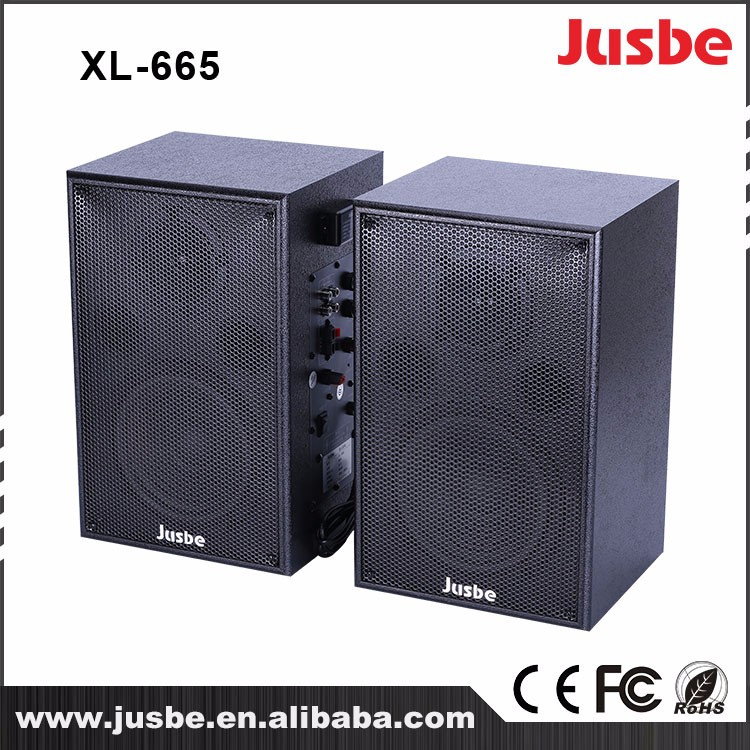

Prod Model: |
XL-665 |
Rated Power: |
60W/4ohm |
Frequency Response: |
55Hz-18kHz |
Sensitivity: |
75dB |
Max Spl: |
78dB |
Rated Input Level: |
Microphone 15 Mv |
Product Size: |
220*200*350 |
N.G: |
8.5 Kg |
Amplification Type: |
Active |
Speaker Material: |
Wood |
Usage: |
Karaoke |
Adjusting Method: |
Touch-Control |
Sound Channel: |
2.0 |
Play Frequency: |
Full Range Speaker |
Structure: |
Desktop Speaker |
SNR: |
81-90dB |
Display Screen: |
No |
Product Description
Features:★ two frequency design;
★ with a way to broadcast priority interface, when there is a broadcast signal automatically switch;
★ all the way to the stereo RCA input, all the way three-core 6.35 inline input (environmental microphone jack comes with DC +6 V power supply);
★ speaker standard wall mounting accessories, lifting simple and convenient.
The main technical parameters:
Rated power: 60W;
Rated impedance: 4Ω;
Receiving frequency: 2400 ~ 2483.5MHz;
Working temperature: -20 ~ 75 degrees;
Receiving sensitivity: 82dB;
Speaker: Frequency response: 55Hz-18kHz;

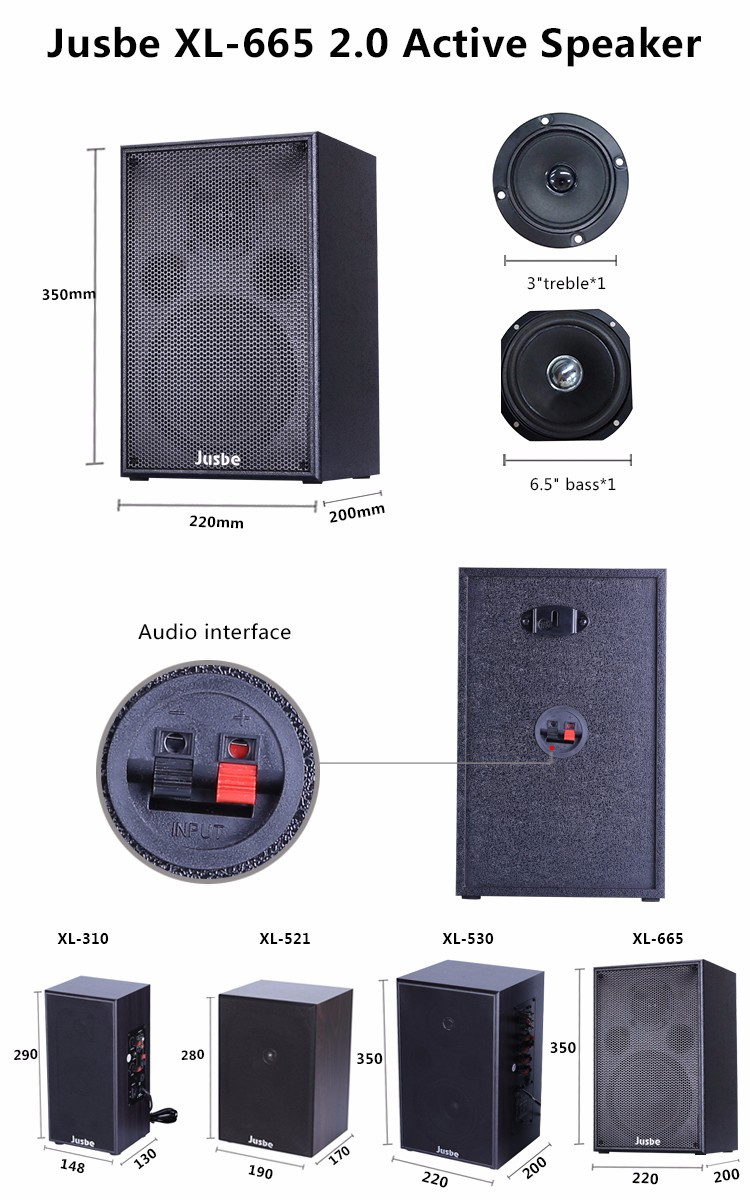

Drive: 6.5 inch bass × 1,3 inch treble × 1;

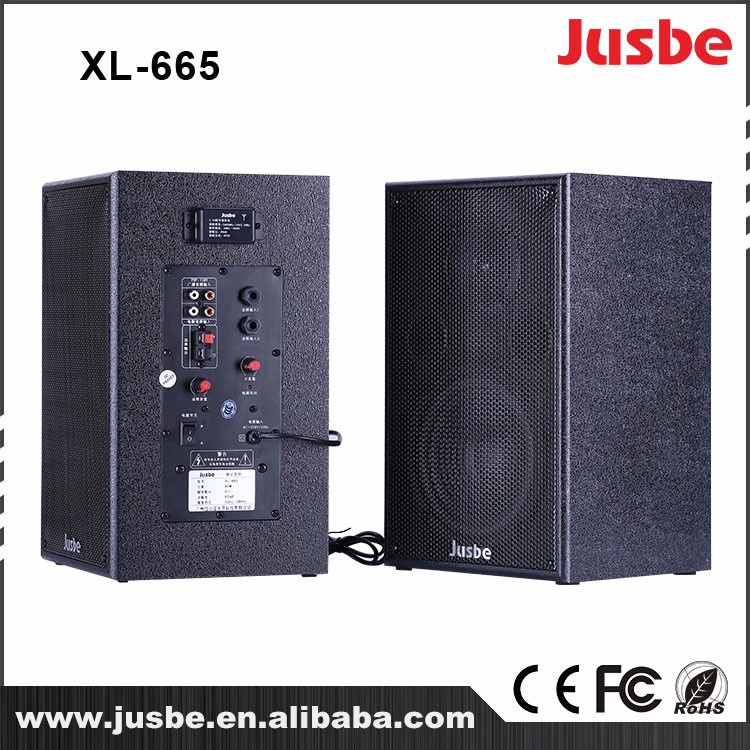

Interface: 1 channel radio input, 1 stereo RCA, 1 microphone interface;
Signal to noise ratio: 75dB;
Sensitivity: 85dB / 1W / 1M;
Maximum sound pressure level: 78dB;
Frequency divider: 1.8KHz;
Box type: inverted phase;
Box and exterior: high density MDF (black) box, steel mesh;
Installation: Standard wall mount;
Packaging & Shipping★Product Size: 22*20*35cm
★Net Weight: 8.5kg / pair.
★Gross Weight: 9 KG
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
Product Name | Low price 35w high reliability active monitor speaker 2.0 chinese active speaker |
Model No. | XL-310 | XL-521 | XL-530 | XL-665 |
Raterd Power | 25W | 35W | 50W | 60W |
Rated input level | microphone 15 mV | microphone 15 mV | microphone 15 mV(nonequilibrium) | microphone 15 mV |
Impedance | 4Ω |
Frequency Response | 55Hz-18KHz |
Input | one stereo RCA | 2 stereo interface | 1 broad cast input (70v-110v); 2 strereo RCA interfaces; 1 L-CH RCA ooutput interface | 1 broad cast input (70v-110v); 1 strereo RCA interfaces; 1 L-CH RCA ooutput interface |
Sensitivity(1W/1m) | 75dB/W(1m) | 85dB/W(1m) |
MAX SPL | 88dB | 85dB | 96dB | 78dB |
SNR | 90dB | 85dB | 85dB | 75dB |
Frequency divider | 1.8KHz |
Body material | High Density Fiberboard |
Exterior | cotton mesh |
Color | Black | Coffee | Black | Black |
Product Size(mm/set ) | 290*150*130 | 200*180*280 | 220*200*350 | 220*200*350 |
Net Weight | 2.6 KG | 6KG | 7.6 KG | 8.5KG |
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...
Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.
In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.
It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.
Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
