Rated Voltage:
12 /24V
Rated Power:
100W, 250W
Reduction Ratio:
50:1, 60:1
Motor Material:
Alloy Steel
Gearbox Material:
Aluminum Alloy
No Lad Speed:
3500rpm
Motor Diameter:
63.5mm
Motor Length:
127mm
Application:
Power Tools
Operating Speed:
Adjust Speed
Excitation Mode:
Compound
Structure And Working Principle:
Brush
Type:
Zy
Brand:
Lectstyle
Product Description
We are one OEM Manufacturer for various worm-gear motors, clay target trap machine motor, ATA trap machine motor, powering golf trolleys motor, worm gear motor on electronic jigging fishing real, dump truck tarp motor, dump truck gear motor, polishing concrete floor motor, pedestrian pallet truck motor etc 1. Motor type: Permanent magnet DC 2. Rated speed: 1500rpm-5000rpm 3. Protection: IP44, IP55, IP66 4. Voltage: 12V, 24V 5.Gear Ratio: 30:1, 50:1, 60:1, 75:1 6.Output speed: 35rpm-45rpm, 40rpm-45rpm, 70-80rpm, 100rpm-120rpm, 160rpm-180rpm 7. Output power: 320W, 380W, 500W, 750W, 1000W 8. Gearbox: worm and wheel 9. Insulation: Class F 10. Efficiency: 65%
Our Core range of DC motors and gearboxes are specifically designed to be interchangeable and versatile, this helps us keep lower stock levels while achieving the customization necessary for so many applications. The core offer has also enabled us to offer excellent pricing levels for low quantities, often prototypes are very expensive due to lack of economies of scale we have tried to help with this as much as possible. HANGZHOU LECTSTYLE can offer bespoke units for larger quantities and offer a Supply Chain service where we work closely with our customers to identify the optimal delivery schedule in accordance with OEM production levels. If you are looking for DC motors and gearboxes you have come to the right place, our expert technical sales staff will recommend the best possible option for both your application and your pocket. Contact us now to discuss your application.
LECTSTYLE Motor Related Services Include: •We can provide AC, DC motors and motor gearbox combinations up to 3000W and 250nm for small and large orders. •We create bespoke deisgns for orders over 1000 units. •We deliver & supply on time (In accordance to strict OEM production Schedules) •We produce motors to your specifications •Our units undergo rigorous performance and application testing before dispatch •We help customers with the design of applications •We hold various motor spares
Why You Should Use LECTSTYLE For Your Motor Requirments? •Extensive Range •Manufactured to Spec •Able to handle any size order large or small •High Factory Capacity •Quantity Discounts
Model
Voltage
Power
current
torque
output speed
Reduction ratio
240w-90ZYJ-Q
12V
240W, 200W
40A, 20A
22.5N.m
50rpm,100rpm
50:1, 30:1
350w-90ZYJ-08
12V
350W
50A
22.5N.m
75rpm
50:1
120w-80ZJY-Y
12V
120W
25A
11N.m
45rpm
50:1
130w-73ZYJ-AS
48V
130W
4A
7 N.m
88 rpm
25:1
130W
4A
11 N.m
55 rpm
40:1
320w-73ZYJ-08
12V
320W
45A
36N.m
42rpm
50:1
50w-63ZYJ
12V
20W
5A
2.3N.m
83rpm
i=7,i=10,i=15, i=36
12V
43W
11A
4.3N.m
94rpm
i=7,i=10,i=15, i=36
24V
20W
2.5A
2.3N.m
83rpm
i=7,i=10,i=15, i=36
24V
43W
5.5A
4.3N.m
94rpm
i=7,i=10,i=15, i=36
20V
50W
5A
2.4N.m
200rpm
i=7,i=10,i=15, i=36
60V
50W
2.5A
2.4N.m
200rpm
i=7,i=10,i=15, i=36
100w-63ZY-RV25
12V
100W
8.3A
12N.m
50rpm,60rpm
i=60:1,i= 50:1
140w-90ZYJ-13
12V
136W
36N.m
36rpm
Wheelchair motor
24V
276W
24.5A
22N.m
120rpm
240w-80ZYJ-W
12V
240W
30A
13N.m
76rpm
59:1

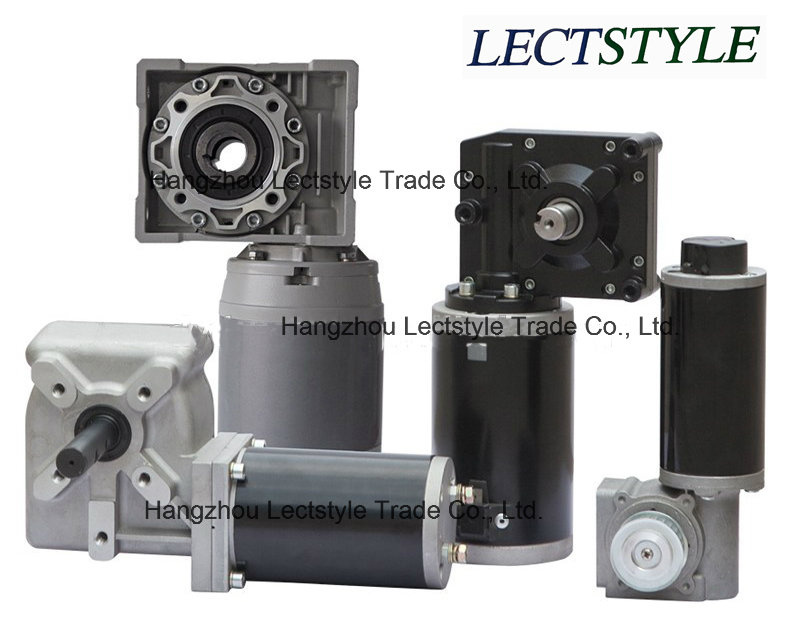

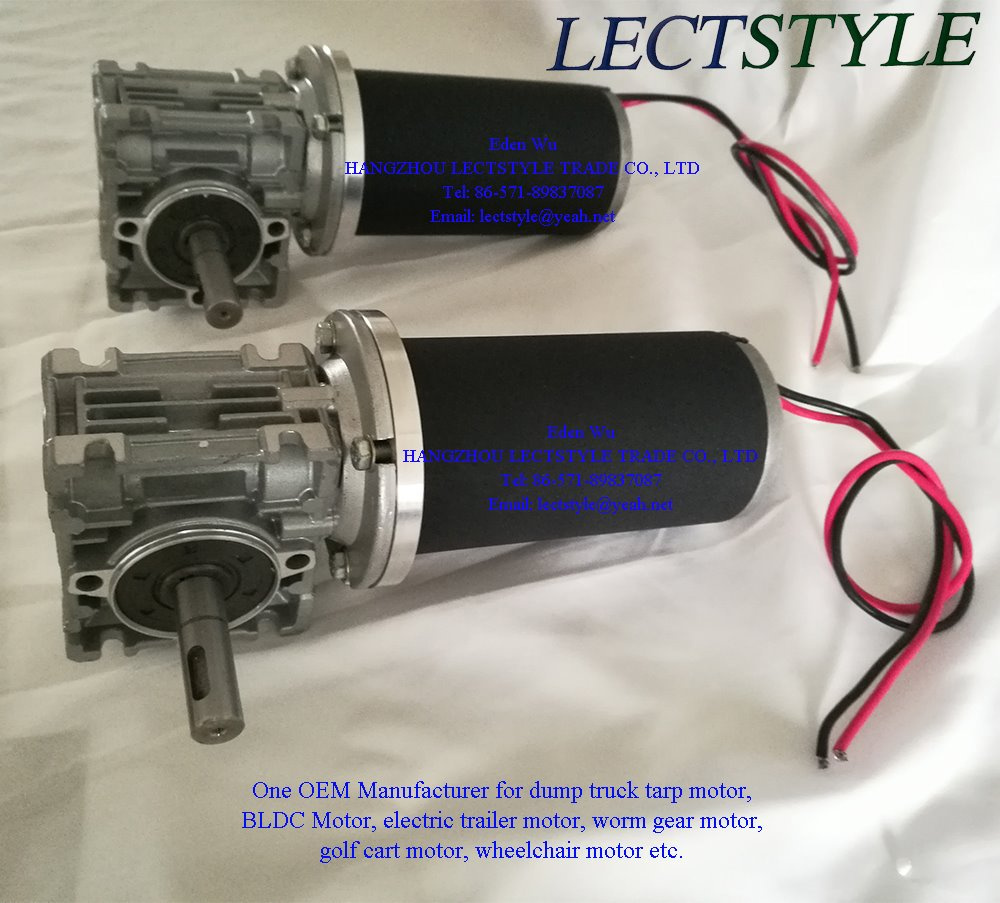

Our products:

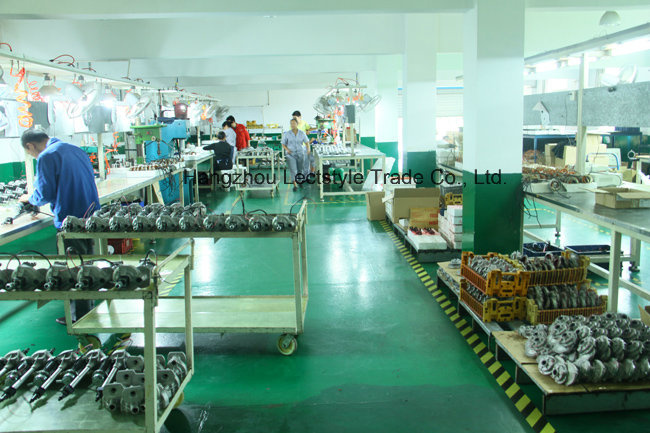

Our assemble workshops:
HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets. Our company has got the right of import and export from the Government department. It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers. Therefore, hope to get your feedback soon.
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
