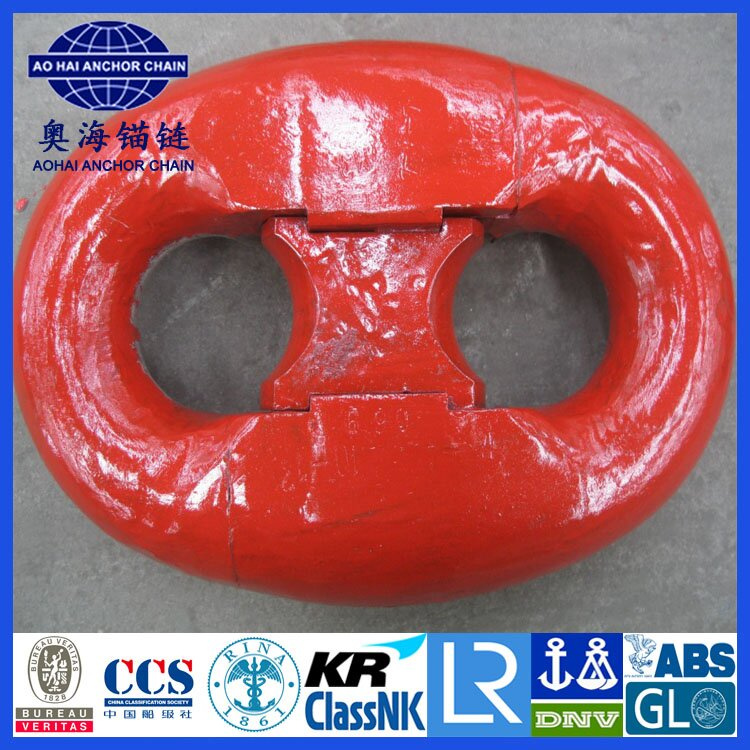

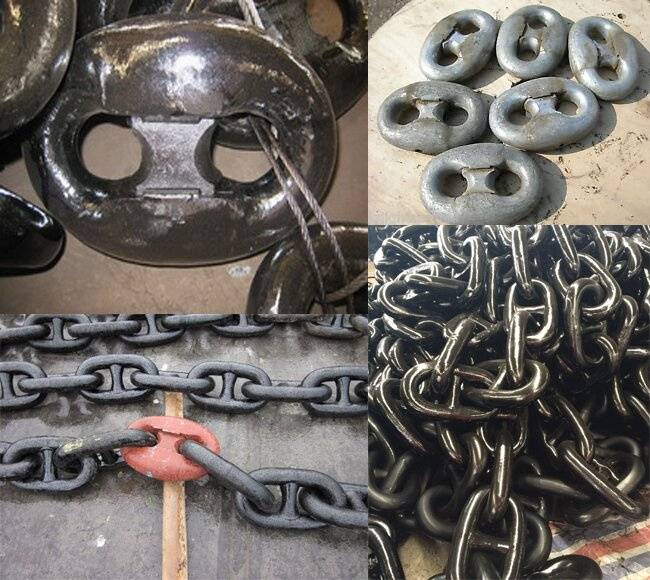

64mm Marine Hardware Anchor Chain Kenter Shackle
Price: |
US $ 56-70/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
12.5-162mm |
Certificate: |
CCS, ABS, BV, Nk, Kr, Lr, Dnv, Gl, Rina, Rmrs |
Product Description
Marine Hardware Anchor Chain Kenter Shackle1.Product DataStud Link Anchor Chain Load and Weight |
Dia./mm | AM1 | AM2 | AM3 | Weight (kg/m) |
B.L.(KN) | P.L.(KN) | B.L.(KN) | P.L.(KN) | B.L.(KN) | P.L.(KN) |
11 | 52 | 36 | 72 | 52 | 102 | 72 | 2.65 |
12.5 | 66 | 46 | 92 | 66 | 132 | 92 | 3.42 |
14 | 82 | 58 | 116 | 82 | 165 | 116 | 4.29 |
16 | 107 | 76 | 150 | 107 | 216 | 150 | 5.61 |
17.5 | 127 | 89 | 179 | 127 | 256 | 179 | 6.71 |
19 | 150 | 105 | 211 | 150 | 301 | 211 | 7.91 |
20.5 | 175 | 123 | 244 | 175 | 349 | 244 | 9.2 |
22 | 200 | 140 | 280 | 200 | 401 | 280 | 10.6 |
24 | 237 | 167 | 332 | 237 | 476 | 332 | 12.61 |
26 | 278 | 194 | 389 | 278 | 556 | 389 | 14.8 |
28 | 321 | 225 | 449 | 321 | 642 | 449 | 17.17 |
30 | 368 | 257 | 514 | 368 | 735 | 514 | 19.71 |
32 | 417 | 291 | 583 | 417 | 833 | 583 | 22.43 |
34 | 468 | 328 | 655 | 468 | 937 | 655 | 25.32 |
36 | 523 | 366 | 732 | 523 | 1050 | 732 | 28.38 |
38 | 581 | 406 | 812 | 581 | 1160 | 812 | 31.62 |
40 | 640 | 448 | 895 | 640 | 1280 | 895 | 35.04 |
42 | 703 | 492 | 981 | 703 | 1400 | 981 | 38.63 |
44 | 769 | 538 | 1080 | 769 | 1540 | 1080 | 42.4 |
46 | 837 | 585 | 1170 | 837 | 1680 | 1170 | 46.34 |
48 | 908 | 635 | 1270 | 908 | 1810 | 1270 | 50.46 |
50 | 981 | 686 | 1370 | 981 | 1960 | 1370 | 54.75 |
52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 | 59.22 |
54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 | 63.86 |
56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 | 68.68 |
58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 | 73.67 |
60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 | 78.84 |
62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 | 84.18 |
64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 | 89.7 |
66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 | 95.4 |
68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 | 101.3 |
70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 | 107.3 |
73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 | 116.71 |
76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 | 126.5 |
78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 | 133.2 |
81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 | 143.69 |
84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 | 154.53 |
87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 | 165.76 |
90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 | 177.39 |
92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 | 185.36 |
95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 | 197.56 |
97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 | 206.06 |
100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 | 219 |
102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 | 227.85 |
105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 | 241.45 |
107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 | 250.73 |
111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 | 269.83 |
114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 | 284.61 |
117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 | 299.79 |
120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 | 315.86 |
122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 | 325.96 |
124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 | 336.73 |
127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 | 353.23 |
130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 | 370.11 |
132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 | 381.59 |
137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 | 411.04 |
142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 | 441.59 |
147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 | 473.59 |
152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 | 505.98 |
157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 | 539.81 |
162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 | 574.74 |
2.Company Introduce Factory is located in Jingjiang City of Jiangsu Province, covers an area of 70000 square meters. We have about 500 staff, including enginners, project technicians and administration personnel. 154 million USD has been invested to build a state of the art factory. The main equipment such as No.5, No.6, No.7, No.8, No.9, No.11 chain production lines, vertical Q.T., furnace and various cutting ans tensile machines are of the first class. Aohai Anchor Chain adopts advanced flash butt weldding and the production is in accordance with ISO1704, GB549, GB/T20848 and the standards of the leading classification societies worldwide(CCS, ABS, BV, NK, KR, LR, DNV, GL, RINA, RMRS). Our main products are marine anchor chains and mooring chains with diameter from 22-162mm.

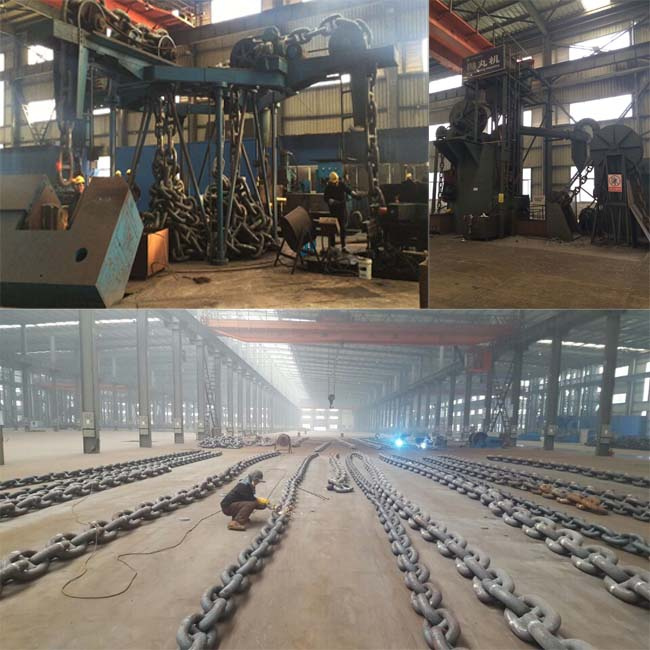

3.Factory Shows
4.Contact InfomationAnita Lee
Add:No.16, Linxin Road, Cheng-jing Industrial Zone, Jingjiang City, Jiangsu, China
Mb:+86-18953229660
Tel:+86-532-55653888
Website:www.aohaimarine.com
Aohai Marine Fittings Co., Ltd is a manufacturer approved by LR, ABS, BV, NK, KR, DNV-GL, CCS, RINA, RMRS...
Our main workshop is in Jiangsu, with sales office Qingdao and oversea stock warehouse in Singapore.
Our factory is also ISO9001, ISO14001 approval and API approval.
Our main products:
Anchor chain and accessories (Stud Link Anchor Chain, Studless Anchor Chain, all types of shackles and connectors)
Mooring chain and accessories (Stud Link Mooring Chain, Studless Mooring Chain, Grade ORQ, R3, R3S, R4 and R5)
Deck outfitting (Chain Stopper, Chock, Bollard and Fairlead)
Marine anchors (Oridinary Anchor such as Hall, Spek and Stockless Anchor, High Holding Power Anchor such as AC-14, Danforth and Pool Achor)
Offshore and agricultural anchors (Flipper Delta, Stevpris MK5, MK6 and Stevshark)
Offshore mooring buoy (Steel Structured, Foam Filled and Navigation Buoys)
Container lashing products (Container corner, Socket, Foundation, Twistlock, D ring, Lashing rod and Lashing chain)
Fenders (Yokohama Type Pneumatic Fender, Solid Rubber Fender for Quay)
Products with high quality and service of professionality is what we pursue.
