7-1/16" 5m API 6A Oil Forged FC Gate Valve of Wellhead
| Price: |
US $ 700-50000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
API 6A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
FC |
| Temperature Class: |
PU |
| Pr: |
1 |
Product Description

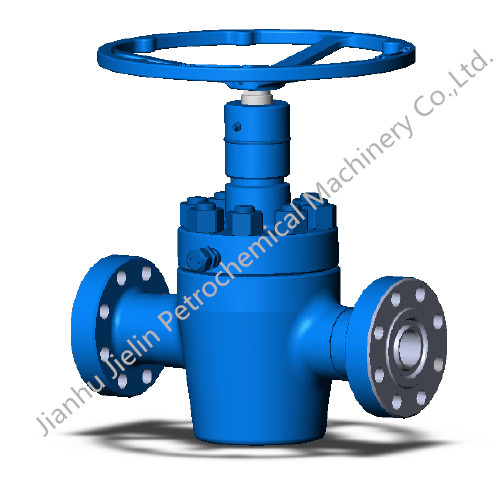

API 6A FC gate valves are designed and manufactured according to API 6A and NACE MRO175 Standards. Our gate valves can be interchangeable with Cameron FC series gate valves. The sealing surface of valve seat and gate is overlaid (surfaced) with hard alloy, resistant to corrosion and abrasion. It is available in flanged or threaded ends in standard bore sizes from 1-13/16"-7-1/16" with working pressure of 3000 psi to 15000 psi. Stem is designed to be rising stem and non-rising type, and the stem sealing can be changed under pressure. Besides, drive mode falls into manual, hydraulic and gear.
- Rated Working Pressure: 2000PSI-20000PSI
- Rated Working Temperature:-46ºC-121ºC
- Working Medium: Oil, gas, mud and water
- Material Class: AA-FF
- End connections: flanged or threaded
- Bore Size Range From: 1-13/16" to 7-1/16"
- Product Specification Level: PSL1-3
- Performance Requirement Level: PR1
| DIMENTIONS | Size (inch) | | | |
| 1-13/16 | 2-1/16 | 2-9/16 | 3-1/16 | 3-1/8 | 4-1/16 | 5-1/8 | 7-1/16 | | | |
| A-End to End | 3000 psi Screwed | | 10-5/8 | 12-3/8 | | 13-5/8 | | | | | | |
| 3000 psi Flanged | | 14-5/8 | 16-5/8 | | 17-1/8 | 20-1/8 | | | | | |
| 5000 psi Screwed | | 10-5/8 | 12-3/8 | | 13-5/8 | | | | | | |
| 5000 psi Flanged | | 14-5/8 | 16-5/8 | | 18-5/8 | 21-5/8 | | | | | |
| 10000 psi Flanged | 18-1/4 | 20-1/2 | 22-1/4 | 24-3/8 | | 26-3/8 | 29-1/4 | 35-3/8 | | | |
| 15000 psi Flanged | 18 | 19 | 21 | 23-9/16 | | 29 | 35-3/8 | | | | |
| B-Extreme Width of Body | 3000 psi Flanged | | 6-3/4 | 7-5/8 | | 7-1/2 | 10-1/2 | | | | | |
| 5000 psi Flanged | | 7 | 8-3/16 | | 9-1/4 | 10-13/16 | | | | | |
| 10000 psi Flanged | 9-1/16 | 9-3/8 | 9-13/16 | 10-1/4 | | 12-13/16 | 15-1/4 | 18-13/16 | | | |
| 15000 psi Flanged | 9-7/8 | 9-7/8 | 11-1/2 | 13-9/16 | | 15-3/8 | 16-3/8 | 19-4/5 | | | |
| C-Center of Bore to Top of Stem Adapter | 3000 psi Flanged | | 13 | 15-13/16 | | 16 | 18-7/16 | | | | | |
| 5000 psi Flanged | | 15-1/8 | 15-15/16 | | 13/16 | 18-7/16 | | | | | |
| 10000 psi Flanged | 15-1/8 | 15-1/8 | 15-13/16 | 16-7/8 | 16 | 19-11/16 | 22 | 30-1/2 | | | |
| 15000 psi Flanged | 15-1/8 | 15-1/8 | 17-3/16 | 20-15/16 | 13/16 | 22-13/16 | 13-13/16 | 31 | | | |
| D-Center of Bore to Bottom of Body | 3000 psi Flanged | | 5-5/8 | 6-1/2 | | | 9-1/8 | | | | | |
| 5000 psi Flanged | | 5-5/8 | 6-1/2 | | | 9-1/8 | | | | | |
| 10000 psi Flanged | 5-3/4 | 5-7/8 | 6-13/16 | 8-1/16 | 7-3/8 | 10-1/16 | 12-1/2 | 16-3/8 | | | |
| 15000 psi Flanged | 5-7/8 | 6-1/8 | 7-5/16 | 9-1/4 | 7-3/8 | 10-3/16 | 13-13/16 | 17-3/8 | | | |
| E-Center of Bore to Top of Handwheel | 3000 psi Flanged | | 15-3/8 | 16-1/8 | | | 20-11/16 | | | | | |
| 5000 psi Flanged | | 17-3/8 | 18-1/8 | | | 20-11/16 | | | | | |
| 10000 psi Flanged | 17-3/8 | 17-3/8 | 18-1/8 | 18-1/16 | 19-1/16 | 20-15/16 | 26 | 34-3/8 | | | |
| 15000 psi Flanged | 17-3/8 | 17-3/8 | 19-9-16 | 22-3/16 | 19-1/16 | 24-1/16 | 26-13/16 | 35-1/2 | | | |
| F-Handwhell O.D | 3000 psi Flanged | | 14 | 14 | | | 18-1/2 | | | | | |
| 5000 psi Flanged | | 14 | 14 | | | 18-1/2 | | | | | |
| 10000 psi Flanged | 14 | 18-1/2 | 18-1/2 | 24 | 14 | 24 | 24-1/2 | 33 | | | |
| 15000 psi Flanged | 18-1/2 | 18-1/2 | 18-1/2 | 24 | 18-1/2 | 24 | 24-1/2 | 34-1/4 | | | |
| G-Noof Turms Open or Close | 3000 psi Flanged | | 12-1/2 | 15-1/4 | | | 23-1/2 | | | | | |
| 5000 psi Flanged | | 12-1/2 | 15-1/4 | | | 23-1/2 | | | | | |
| 10000 psi Flanged | 12-1/2 | 12-1/2 | 15-1/4 | 18-1/4 | 18-1/4 | 23-1/2 | | | | | |
| 15000 psi Flanged | 12-1/2 | 12-1/2 | 15-1/4 | 15-1/4 | 18-1/4 | 29-1/4 | | | | | |
