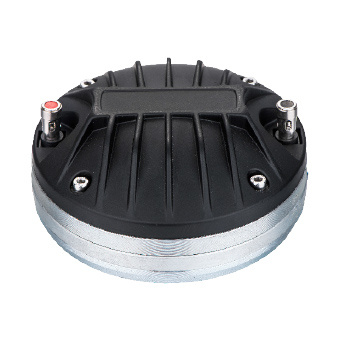

74 mm Titanium Compression Driver Speaker

Name: 74 mm Titanium Compression Driver Speaker
Brand: tool-buy.com
SKU: 823016805
Availability: InStock
Rating: 4.6 (65 reviews)

Price:	US $ 4.5-5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Ningbo Rongtor Electronics Co., Ltd.

Showroom Product Company Profile

Prod Model:	RT-7503TN
Impedace:	8 Ohms
Type:	Speaker
Speaker Design:	Tweeter
Shape:	Spiral
Material:	Iron
Sound Frequency:	High Pitch
Voltage:	12V
Connection Mode:	Double Wire
Current:	3A
Contact Point:	Without Contact Point
Energy Exchanging Mechanism:	Electrical

Product Description

Specification

Throat Diameter: 1.4 in (36mm)
Mounting Type:Bolt on
Nominal Impedance: 8 Ohm
Power Capacity: 85Watts RMS
Sensitivity(1W/1M): 110dB
Frequency Range: 500Hz-20KHz
Diaphragm Material: Titanium or Composite diaphragm
Voice Coil Diameter 3 in(74mm)
Voice Coil Material: ALR Pure Ribbon Aluminium Wire
Flux Density: 2.2T
Magnet: Neodymium OD124mm

Ningbo Rongtor Electronics Co., Ltd., located in Ningbo, port city in Zhejiang and established in 2012 (previously ZR Factory), is a reliable professional speaker driver unit manufacturer.

Our factory have development department, production department, processing department and marketing department.

Our factory have the Uniter States LMS systems, test equipment and follow strict quality control of computer products, quality assurance.

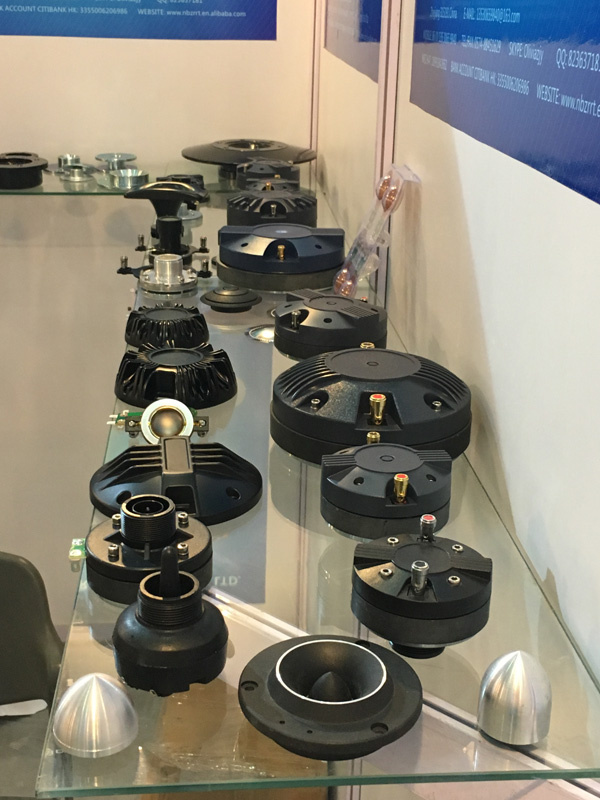

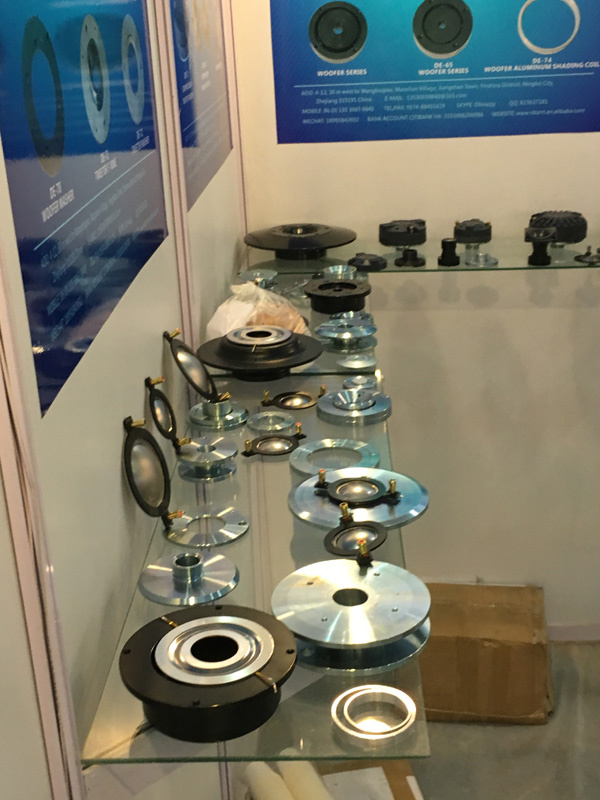

Our product mix includes: Tweeter, PA SPEAKER. SUBWOOFER. Diaphragm parts, T-yoke, U-yoke, washer, CNC series, etc.

Rongtor can offer OEM/ODM services per customer needs. Our lead time is usually 20-45 days after receiving order.

Rongtor has built a team of experienced designers, NC technicians and managing personnel. It is striving for fine and zero-defect products to ensure constant quality services.
