| Prod Model: |
LQ-WSM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Wire Saw Machine |
| Cutting Direction: |
Any Direction |
| Certification: |
Ce SGS |
| Brand Of Inverters: |
Vechi Schneider |
| Usage: |
Stone and Concrete Cutting |
| Brand: |
Keentool |
| Customized: |
Customized |
Product Description

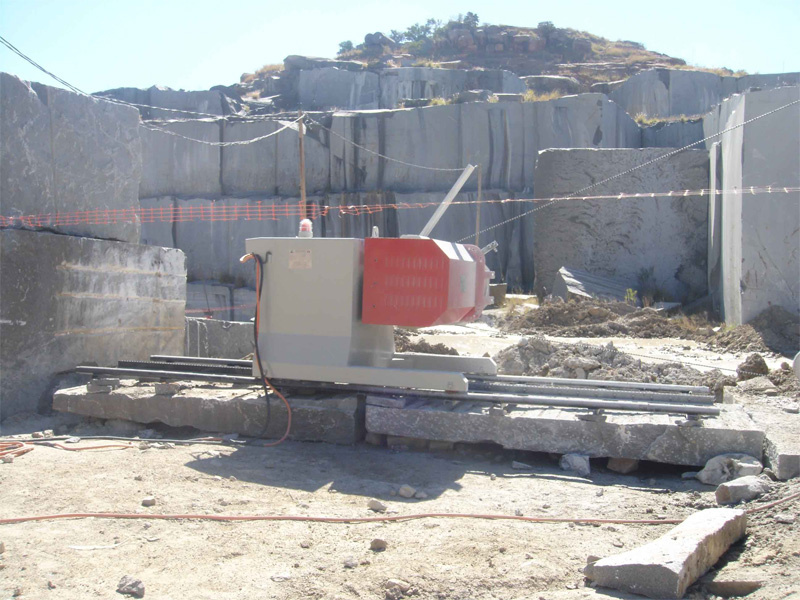

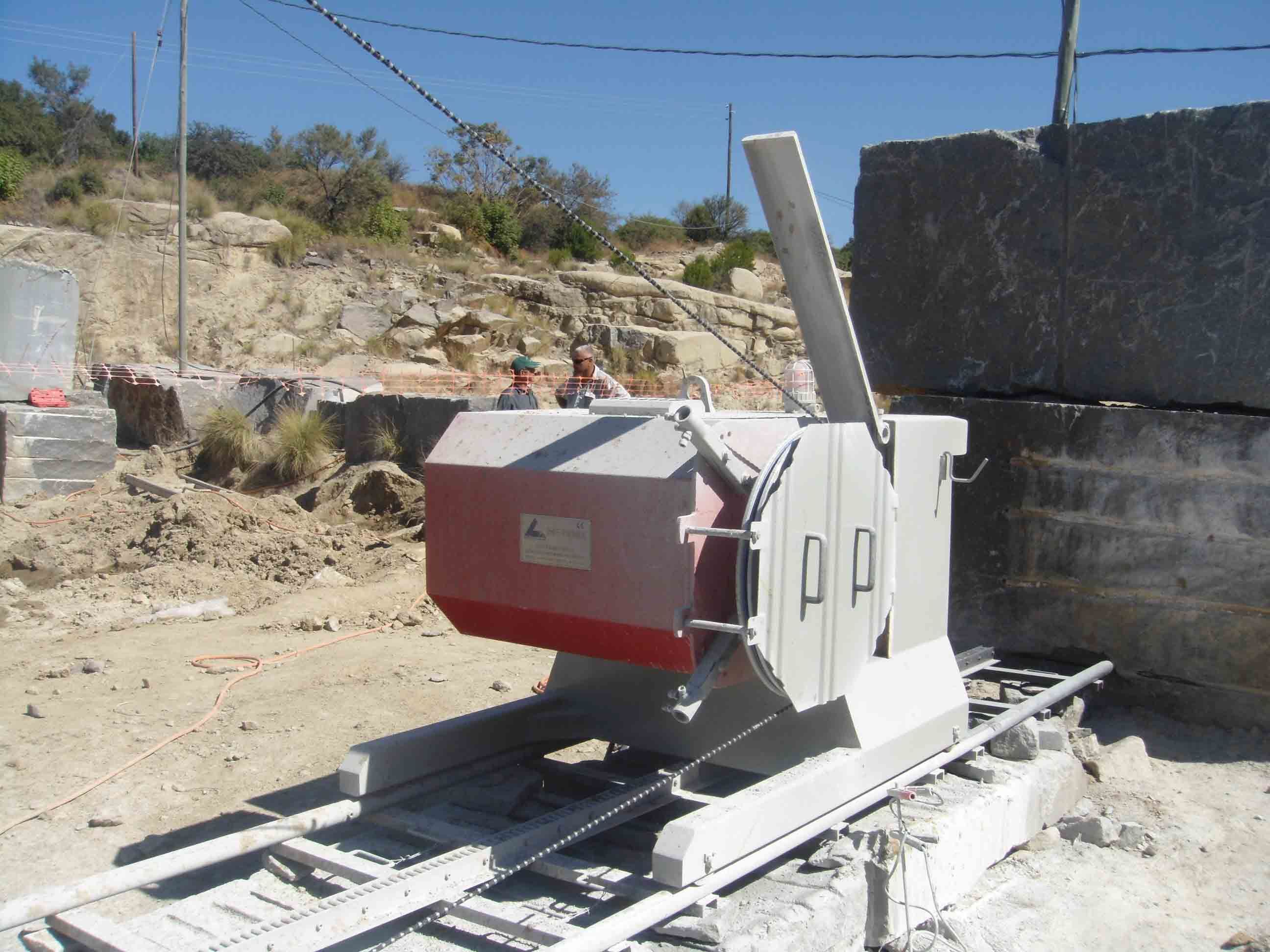

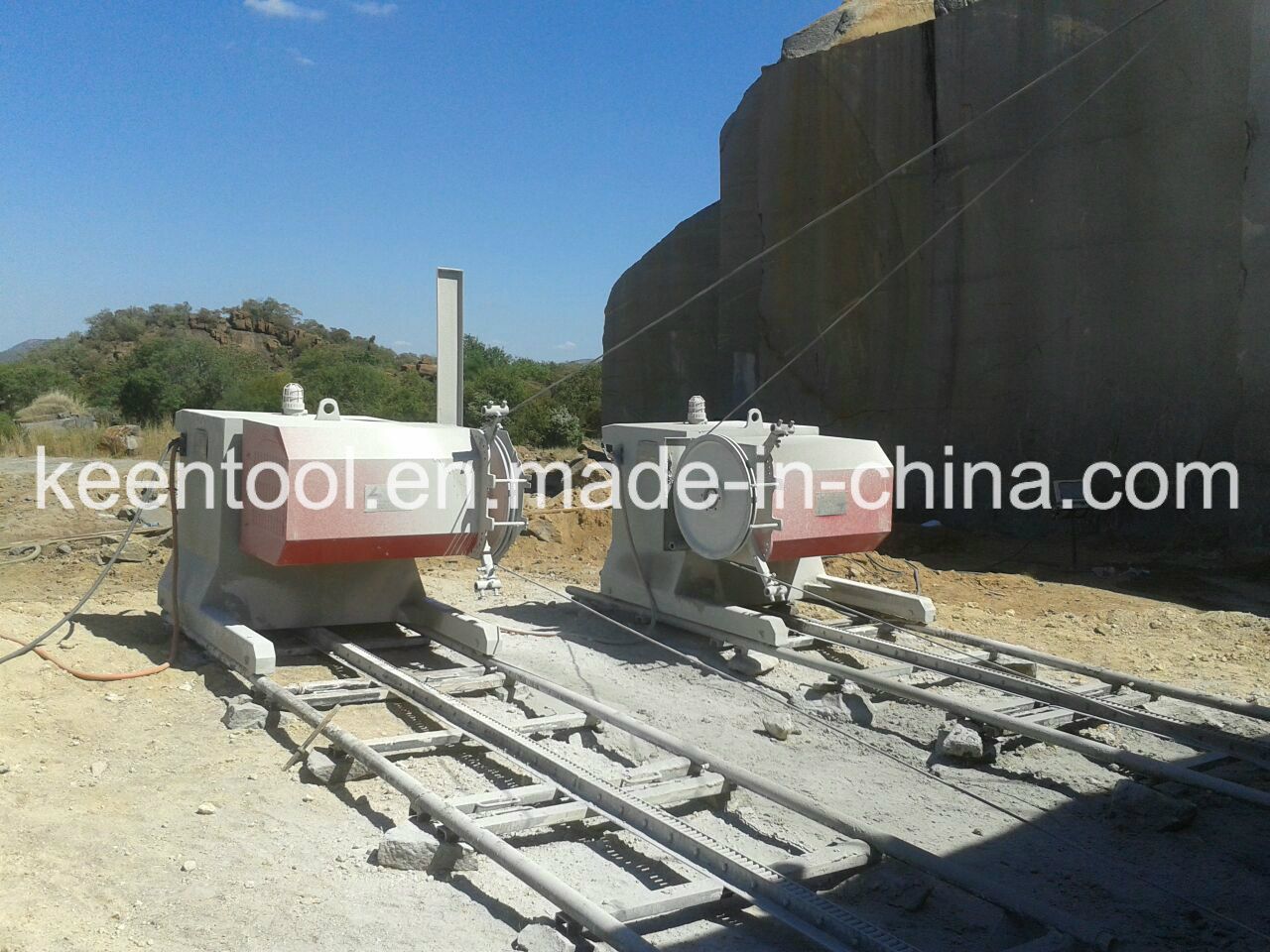

Premium diamond wire saw machine for granite, marble quarry or mining ( CE, SGS audited )
1. With PLC and stepless tensioning system
2. Full Automatic control
3. All the movements of the saws are motorized drive
4. Two inverters for linear speed and travel speed control
5. Safety protection again over movement, over voltage, and upexpected wire break etc
The major functions of the diamond wire saw machine:1. Variable wire speed range from 0-40M/S, allows to quarrying all kinds of stone material with different hardness and texture like marble, granite, sandstone etc.
2. Automatic constant tensioning system to keep the wire always in optimal working condition and furthest guarantee the cutting duration of diamond wire.
3. Angle adjustment range from 0-360 degree(electric auto), allows to horizontal, vertical and any direction cutting.
4. Horizontal extention system of flywheel shaft position range from 0-300mm(electric auto).
5. Quick Backward speed of machine without loading range from 0-300mm/Min
6. Separate control panel with feature of easy and safe manipulation for operator.
7. Safety stop in case of unexpected wire breakage or other faults
Remarks:1. Schneider or Siemens inverters is available as per customer's requirements.
2. Standard power supply is 3-phases, 380Volts, 50Hz, other types could be ordered by customer.
3. We are in a position to design the Wire Saw Machines as per customer special requirement.
| Model | Main Motor | Speed Setting | Diameter of Drive Wheel | Application | Remark |
| LQ-WSM-37KWS | 37KWS | 0-40M/S | 800MM | Suitable for all natural stone quarrying and block trimming, as well as controlled demolition | Standard power supply 3phases, 380volts,50Herz
Modification or transformer will be need for other power standard |
| LQ-WSM-45KWS | 45KWS | 0-40M/S | 800MM |
| LQ-WSM-55KWS | 55KWS | 0-40M/S | 800MM |
| LQ-WSM-75KWS | 75KWS | 0-40M/S | 1000MM |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:

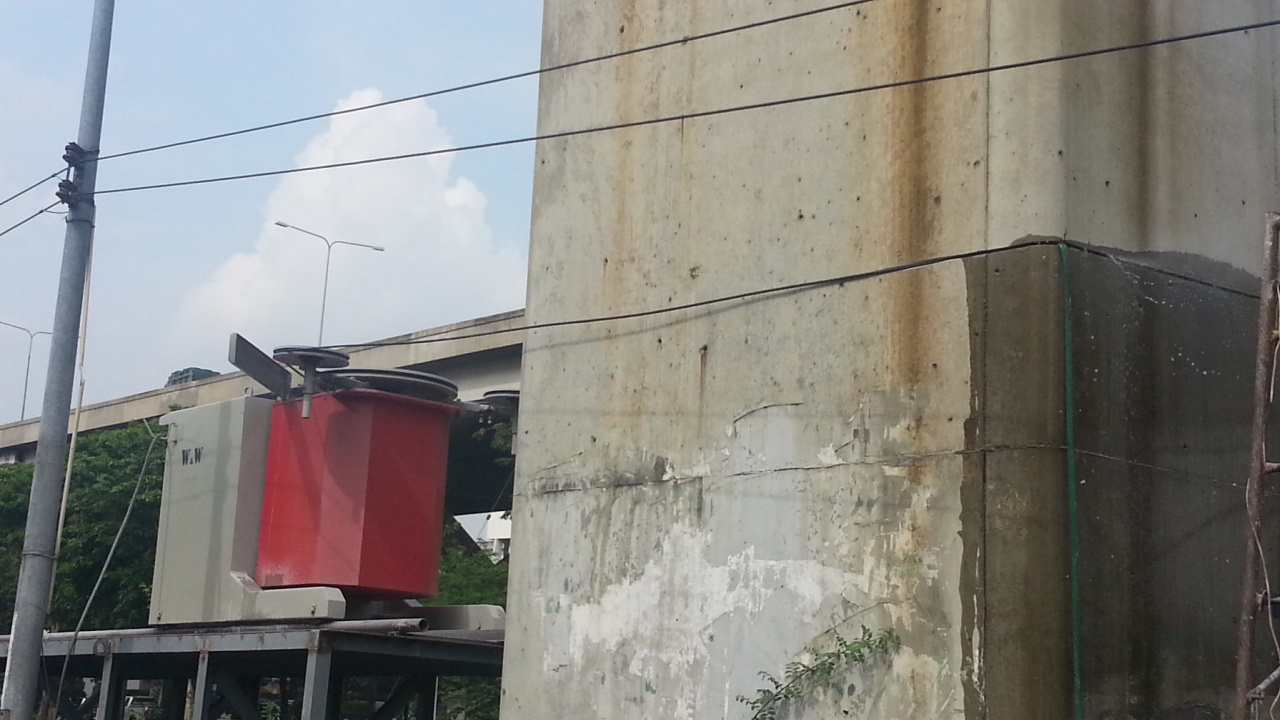

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
