| Prod Model: |
OB-7500/2-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
Artificial |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| RoHS: |
Red |

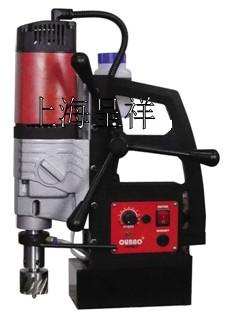

Product Description
Max. Core Drilling Diameter: 75mm
Max. Twist Drilling Diameter: 23mm
Tapping: 20mm
Max. Countersunk Drilling Diameter: 32mm
Max. Reaming Diameter: 28mm
Changing Diameter Shank: 2#Mohs Taper shank
Drilling range: Ø 5-75mm
Rated voltage: 220V
Magnetic adhesion: 14800N
Input power: 1880W
No-load speed: 0-220/380r/min
Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level, side face and top face, and widely used in the building, bridge building, and ship building industries and so on. You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation. They are convenient and small, and can reducing work force and improve the machining accuracy and effiency.
|
Model |
OB-2500E |
OB-3500E |
OB-5000E |
OB-6000E |
OB-9000E |
OB-1200E |
|
Max Drilling Dia. |
ø25MM |
ø35MM |
ø50MM |
ø60MM |
ø90MM |
ø120MM |
|
Rated Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
|
Magnetic Adhesion |
12800N |
14000N |
15500N |
15800N |
16800N |
19800N |
|
Input Power |
1400W |
1580W |
1650W |
1680W |
1980W |
2580W |
|
No-load Speed |
0-650RPM |
0-600RPM |
0-570RPM |
0-550RPM |
0-500RPM |
0-180RPM |
|
N.W. |
13KG |
14KG |
23KG |
23KG |
25KGS |
30KGS |
|
G.W. |
14KG |
15KG |
28KG |
28KG |
30KGS |
36KGS |
|
Size |
42*18.5*42CM |
42*18.5*42CM |
42*22.5*51CM |
42*22.5*51CM |
42*22.5*51CM |
42*22.5*51CM |
Shanghai Chengxiang Electromechanical Equipment Co., Ltd. is a high-tech enterprise which boasts of scientific research, manufacture and sale. Our products include industrial drills, such as diamond drills, wall cutting machines and magnetic drills.
Our independent R&D products are very popular at home and abroad, such as multifunctional diamond drills, wall cutting machines and cutting and detaching machines, as well as multi-functional magnetic drills.
Chengxiang keeps up with what clients need, with an international and unique view. Here what we provide is not only fully-ranged, innovative and professional products, but also professional services in a highly efficient and swift way.
