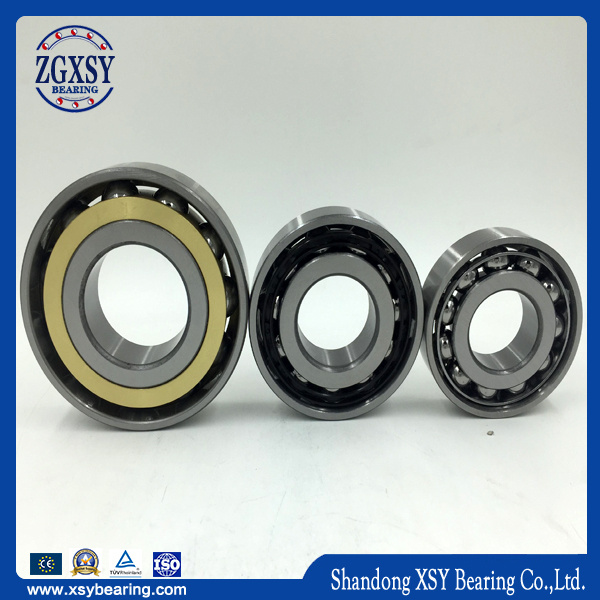

7900AC Series Machine Tool Motor Bearing Angular Contact Ball Bearing
| Price: |
US $ 1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
7900 AC Series |
| Seals Type: |
Seal |
| Weight: |
0.011-3.12kg |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
Product Description
Advantages and Features- XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
- XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
- XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional.
- The bearing is long durability, high speed and low noise.
- OEM & ODM are available.
- All kinds of bearing simples are available.
About Angular Contact Ball BearingThere is an angle between the ligature of steel ball of Contact ball bearing and its contact point with inner & outside circles and radical side. The angel is generally 15°,30°,40°, showing with letter C, A, B respectively.
Angular contact ball bearings mainly take large axial load, the greater the contact angle, the greater the load capacity to withstand.
The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Cage materials are steel, brass or engineering plastics, and molding methods are stamping or turning, which is depending on the form or different applying conditions of the bearing.

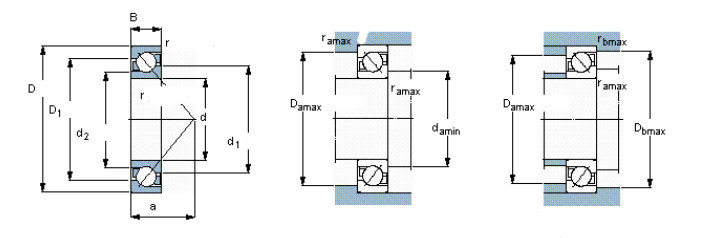

Parameter| Bearing No. | Boundary dimensions | Mass |
| mm | kg |
| d | D | B | ≈ |
| 7901AC | 12 | 24 | 6 | 0.011 |
| 7902AC | 15 | 28 | 7 | 0.015 |
| 7903AC | 17 | 30 | 7 | 0.017 |
| 7904AC | 20 | 37 | 9 | 0.035 |
| 7905AC | 25 | 42 | 9 | 0.042 |
| 7906AC | 30 | 47 | 9 | 0.048 |
| 7907AC | 35 | 55 | 10 | 0.075 |
| 7908AC | 40 | 62 | 12 | 0.11 |
| 7909AC | 45 | 68 | 12 | 0.13 |
| 7910AC | 50 | 72 | 12 | 0.14 |
| 7911AC | 55 | 80 | 13 | 0.183 |
| 7912AC | 60 | 85 | 13 | 0.198 |
| 7913AC | 65 | 90 | 13 | 0.212 |
| 7914AC | 70 | 100 | 16 | 0.342 |
| 7915AC | 75 | 105 | 16 | 0.36 |
| 7916AC | 80 | 116 | 16 | 0.381 |
| 7917AC | 85 | 120 | 18 | 0.542 |
| 7918AC | 90 | 125 | 18 | 0.56 |
| 7919AC | 95 | 130 | 18 | 0.604 |
| 7920AC | 100 | 140 | 20 | 0.808 |
| 7921AC | 105 | 145 | 20 | 0.83 |
| 7922AC | 110 | 150 | 20 | 0.88 |
| 7924AC | 120 | 165 | 22 | 1.15 |
| 7926AC | 130 | 180 | 24 | 1.54 |
| 7928AC | 140 | 190 | 24 | 1.64 |
| 7930AC | 150 | 210 | 28 | 2.97 |
| 7932AC | 160 | 220 | 28 | 3.12 |
Aout us Shandong XSY bearing Co., Ltd. is an enterprise majoring in the manufacturing of precision bearings. It has a integrate service chain of research, producing and sales. The bearings with brand trademark of "ZGXSY" win good quality reputation in domestic bearing market. The company is equipped with modern production facilities and advanced testing instruments, mainly specific to imported top-range products. We professionally produce precise bearings such as spherical roller bearings, thrust ball bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, thrust spherical roller bearings and so on. The productions are widely used as auxiliary products in metallurgy, electrical machine, mine, petroleum, chemical, coal, cement, paper making, wind electricity, heavy machinery, engineering machinery, port machinery and other industries.
TestingAll our products are tested sctrictly before delivery. The testing process is: Dimension Measurement-Waviness, roundness and form analysis-Noise and vibration testing-Noise and vibration testing-Non destructive testing-Grease testing machines.
Packaging & ShipmentsPackaging Details:
1.tube /plastic bag+box+cartons+pallets
2.plastic bag+single box+cartons+pallets
3.industrial packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.
ApplicationThese are the type most commonly used in automotive applications (to support the wheels of a motor car for example), where they are used in pairs to accommodate axial thrust in either direction, as well as radial loads. They can support greater thrust loads than the ball type due to the larger contact area, but are more expensive to manufacture.
FAQ 1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind guidance.8.How to stock and maintenance my bearings?Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidityor extreme temperature that may result in condensation forming;
Always put oiled paper or, if not available, put plastic sheets between rollers and cup races of tapered roller bearings.Contact with us:
