| Prod Model: |
Matrix or Steel |
| Diameter: |
3 3/4"~26" |
| Bearing Type: |
Sealed and Non-Sealed Bearing |
| Material: |
Tungsten Carbide, High Manganese Steel |
| Processing Type: |
Forging |
| Pressure: |
High Pressure |
| Transfer: |
Air/Sea/Express |
| Color: |
Request |
| Advantage: |
High Performance |
| Product Name: |
PDC Bit |
| Inserts Design: |
Spherical; Ballistic; Parabolic |
| Certification: |
API |
| Condition: |
New |
| Type: |
Drill Tools |
| Application: |
Water or Oil Well Drilling, |
Product Description

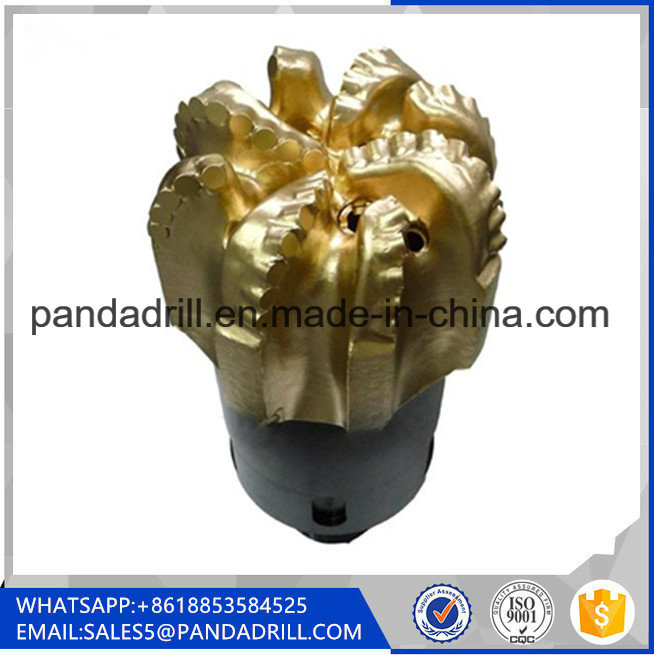

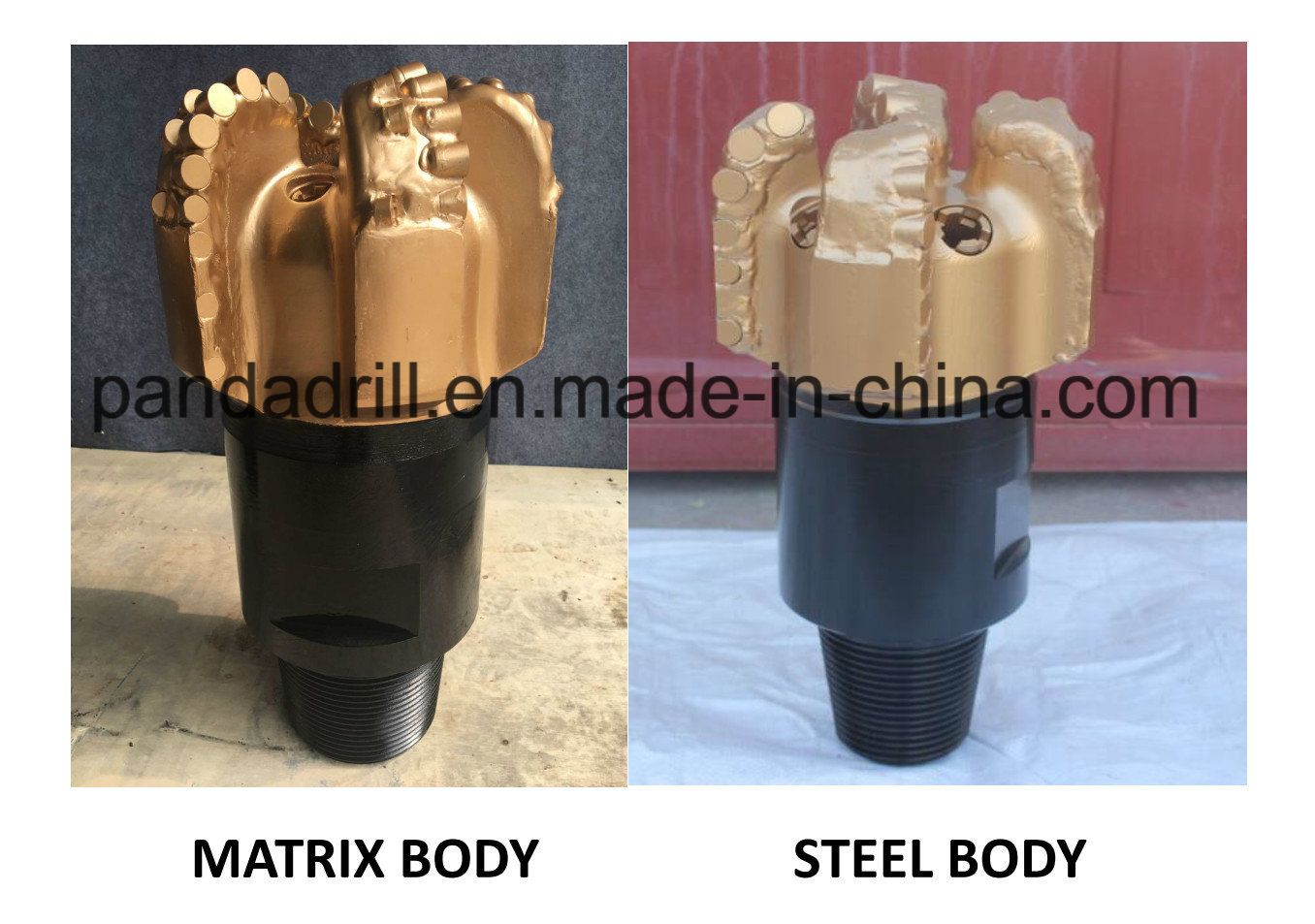

Product Description:Panda PDC bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are 2 types: Matrix and Steel Body.
1.Sizes rang from 3 7/8" to 26"
2.Covers almost all IADC code. 3.Reliable quality and reasonable price.Diameter:| Size | Steel Body bit | Matrix Body bit |
| in | mm | Weight(kgs) | Weight(kgs) |
| 3 7/8 | 98.4 | 5 | 6 |
| 4 5/8 | 117.5 | 6 | 6.5 |
| 5 7/8 | 149.2 | 17 | 18 |
| 6 | 152.4 | 18 | 19.5 |
| 6 1/2 | 165.1 | 19 | 22 |
| 7 7/8 | 200 | 29 | 29.5 |
| 8 1/2 | 215.9 | 35 | 38 |
| 8 3/4 | 222.2 | 36 | 40 |
| 9 1/2 | 241.3 | 57 | 59 |
| 9 7/8 | 250.8 | 58 | 60 |
| 10 5/8 | 269.9 | 66 | 74 |
| 12 1/4 | 311.1 | 85 | 111 |
| 13 5/8 | 346.1 | 118 | 120 |
| 14 3/4 | 374.6 | 140 | 160 |
| 17 1/2 | 444.5 | 230 | 255 |
| 20 | 508 | 428 | 443 |
| 22 | 558.8 | 520 | 560 |
| 26 | 660.4 | 720 | 810 |
Different Type:
FAQ:Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
CONTACT:
Pandadrill, founded on 2008 year, is a specialized manufacturers and supplier of Rock Drilling Tools, Stone and demolition tools and consumables for quarrying, mining and construction with 10 years experiences.
We produces high quality rock drilling products by using high quality raw material, utilizing advanced craft technology and imposing strict quality inspection. The products made by Pandadrill are being adopted by various users from all over China and exported to more than 50 countries including America, France, Australia, Canada, Brazil, South Africa, Malaysian, South Korea and other countries. All of our products are highly-reputed by our customers.
Pandadrill tools always committed to provide low cost Rock Drills, stone tools, rock drilling tools, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.
"Continues to provide you with better products", which keep business purposes, we still make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers. We believe in Fair Quality, Fair Price, Fair Trading, we are aim to provided quality, convenient, quick service to customer and have gained good reputation in the market.
We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.
Main products:
SMALL HOLE DRILLING TOOLS
TOP HAMMER DRILLING TOOLS
HAND HELD DRILLING MACHINE
DTH TOOLS
ROTRAY DRILL TOOLS
BREAKING TOOLS (STONE & CONSTRUCTION)
GRINDING TOOLS
STONE CUTTING TOOLS
MINING EQUIPMENT
