| Prod Model: |
89002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gold |
| Size: |
8 Inches |
| Function: |
Wood Cutting and Aluminum Cutting |
| Quality: |
Professional |
| Warranty: |
12 Months |
| Saw Type: |
Miter Saw |
| Power Source: |
Electricity |
| Type: |
Portable |
| Application: |
Wood Cutting and Aluminum Cutting |
Product Description

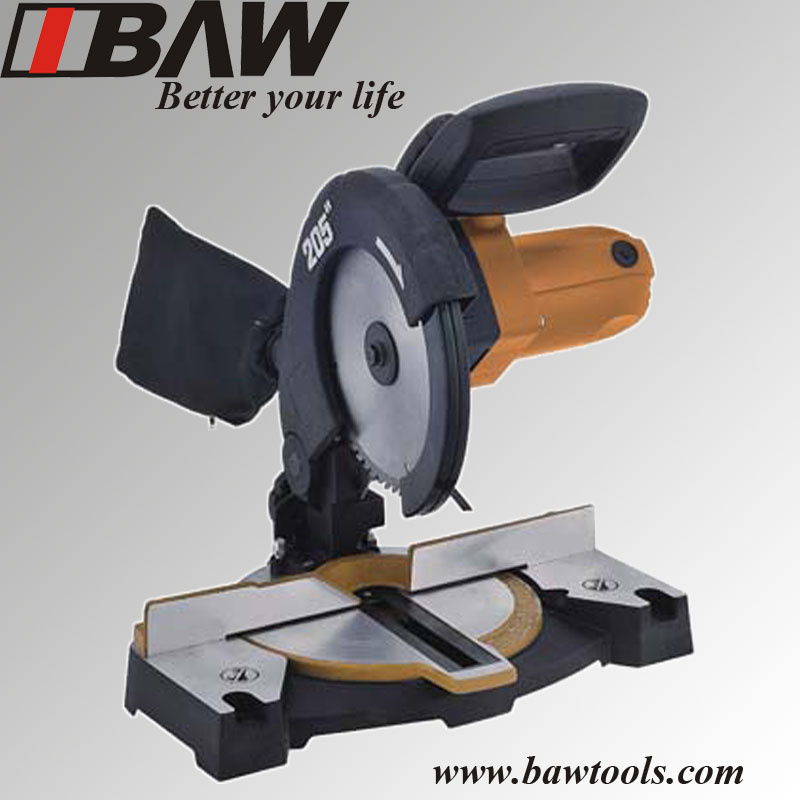

1200W 8'' 205mm Compact Miter Saw with Laser (MOD 89002)
Features:
Compact design with a steel Sliding System further increases rigidity to produce superior cuts;
Less weight and the most compact design in its class for easy jobsite portability
Built-in laser clearly indicates line-of-cut whether blade is turning or not;
Ergonomic D-handle design for better fit and added comfort;
Easy-to-read dual bevel scale for more precise adjustments
Head tilting angle adjustment available
Technical Parameters:
Rated Voltage220V
Rated Frequency50Hz
No-load Speed6000 r/min
Rated In-put Power1200W
Blade Dia205mm
Blade Bore25.4mm
Max Cutting Capacity(0° )45*115mm (H× W)
Max Cutting Capacity(45° )45*95mm (H× W)
Head Tilting(0° )45*115mm (H× W)
Head Tilting(45° )25*115mm (H× W)
Packing Information:
Packing WayColor Box + Outer Carton
Quantity2 PCS / carton
Carton Size61.5*49.5*31 cm
Gross Weight8.00 kg / PCS
Net Weight6.80 kg / PCS
STD 20550 PCS
STD 401144 PCS
STD 40HQ1440 PCS
Accessories
Dust bag 1 PCS
Triangular ruler 1 PCS
Wrench 1 PCS
Carbon brush 1couple
User manual 1PCS
|
Rated Voltage |
220V |
|
Rated Frequency |
50Hz |
|
No-load Speed |
6000 r/m |
|
Rated In-put Power |
1200W |
|
Blade Diameter |
205mm |
|
Blade Bore |
25.4mm |
|
Max Cutting Capacity(0°) |
45*115mm (H*W) |
|
Max Cutting Capacity(45°) |
45*95mm (H*W) |
|
Head Tilting (0°) |
45*115mm (H*W) |
|
Head Tilting (45°) |
25*115mm (H*W) |
BAW Tools is one of the top professional power tools manufacturers in China with more than 8 years' manufacturing and R&D experience. BAW Tools is especially in manufacturing circular saw, miter saw and cut-off machine. We can offer our customer full range of saws from 5 inch to 14 inches with best quality.

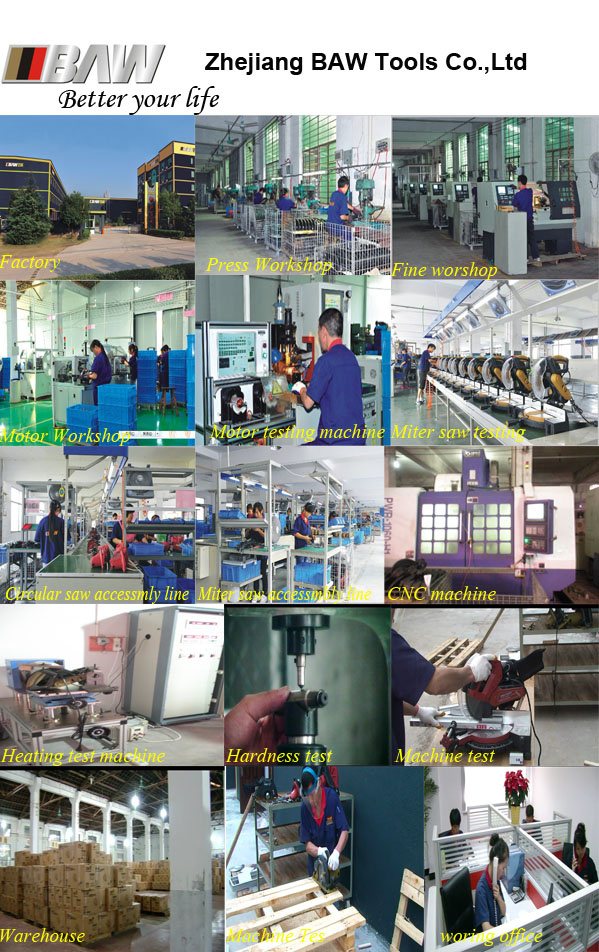

BAW factory covers an area of 10, 000 square meters with more than 300 staffs including 10 technical engineers and 20 QC personal. In this case, BAW Tools can offer our customer with newest products every year with professional quality.
Our company has advanced production equipment, modern management, professional technicians and a strict quality control system, and our main production department includes a motor manufacturing workshop, an Iron stamping workshop, an aluminum casting workshop, a painting workshop and an assembly workshop. All the main parts of products are made by ourselves to be cost-effective, and we strive to offer the best quality and the lowest price to reward our customers.
BAW Tools warmly welcomes all the friends to visit our company for more information, and we would like to establish a permanent relationship with customers based on mutual benefit.
