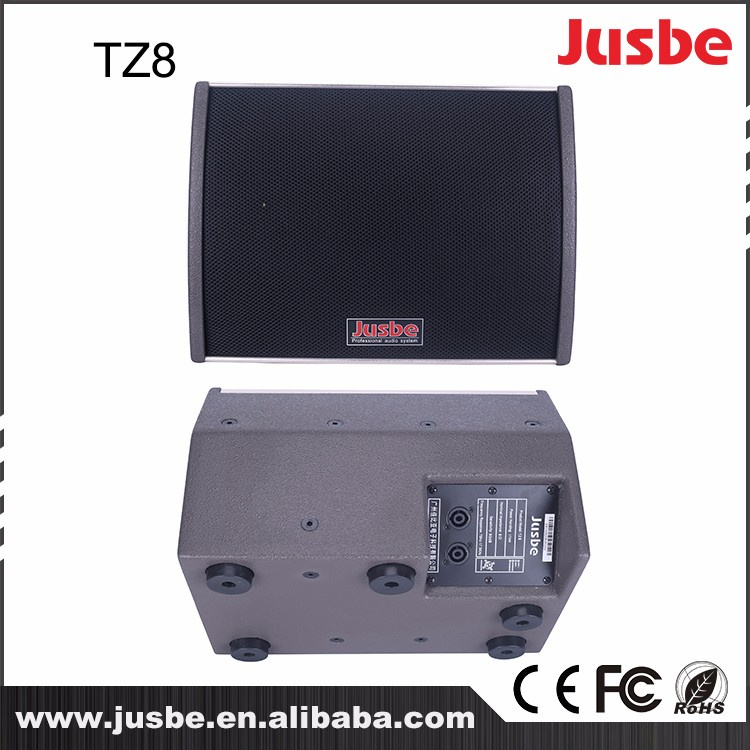

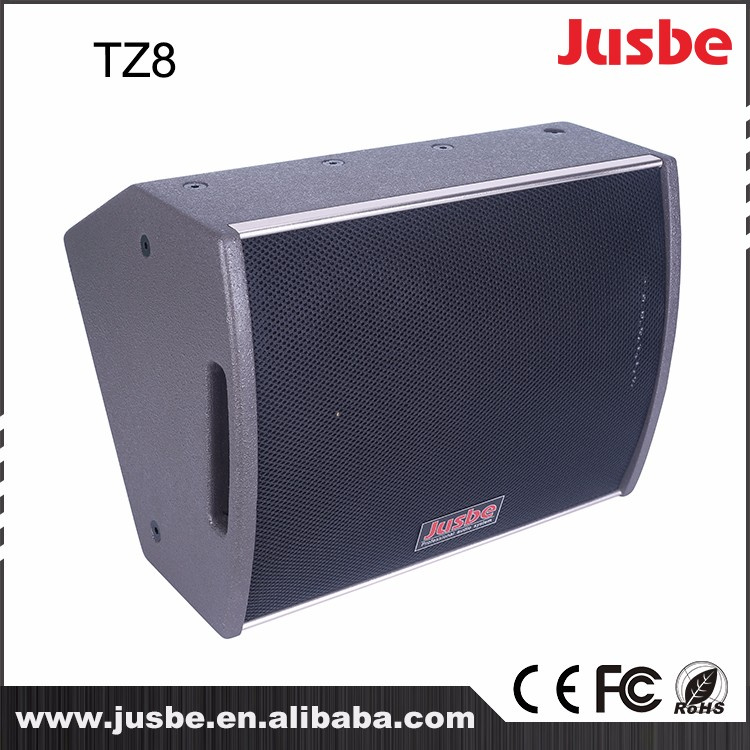

| Prod Model: |
TZ-8 |
| Rated Power: |
150W/8ohm |
| Frequency Response: |
75Hz-18kHz |
| Sensitivity: |
94dB |
| Max Spl: |
128dB |
| Connector: |
Speakon Nl4×1 Pin1+/2+POS. Pin1-/2-Neg |
| Product Size: |
405*300*280 |
| N.G: |
15 Kg |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Certification: |
FCC |
| THD: |
<0.005% |
| Application: |
Stage |
| Monitor: |
No |
Product Description
Features:★ TZ series coaxial speakers full application of the professional audio industry's latest sound reinforcement technology,
★ The use of a point source coaxial structure design, the use of a constant directional cone waveguide loaded diaphragm compression drive tweeter and low frequency unit, can provide 80 ° axisymmetric constant directional output.
The main advantage of the application of coaxial technology is that the radiation of the single point source has excellent phase response, which avoids the weakness of the typical polar lobe interference effect of the traditional trumpet and low frequency loudspeaker unit, thus solving the problem of phase deviation.
★ Recommended conference room use, the maximum reduction of howling is produced.
The main technical parameters:
Rated power: 150W, the maximum input power: 600W;
Impedance: 8Ω;
Frequency response: 75Hz-18KH;
System type: 8 inch coaxial full frequency;
Tweeter: 34 core treble × 1;
Woofer: 8 inch bass × 1;
Standard cover angle: 80 ° cone;
Maximum sound pressure level: 120dB;
Sensitivity (1W / 1m): 94dB / W (lm);
Connector: SPEAKON NL4 × 1 PIN1 + / 2 + POS. PIN1- / 2-NEG (plus or minus 4-pin safety plug);
Hanging hardware: 20xM8 hanging point;
Material and surface treatment: plywood, environmentally friendly water-based paint;
Color: Champagne;
Packaging & Shipping★Product Size: 405 * 300 * 280 (unit: mm);
★Packing size: 330*370*490CM (unit: mm)
★Net Weight: 15kg / pcs.
★Gross Weight: 16kg / pcs
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Product Name | High quality professional PA system wall mount speaker multi-function hall conference speaker |
| Item No. | TZ8 | TZ10 | TZ12 | TZ15 |
| Raterd Power | 150W | 250W | 400W | 500W |
| Max Input Power | 600W | 800W | 1600W | 2000W |
| Impedance | 8Ω |
| Frequency Response | 75Hz-18KH | 70Hz-18KH | 45Hz-19KH | 40Hz-19KH |
| System Type | 8 inch, coaxial | 10 inch, coaxial | 12 inch, coaxial | 15 inch, coaxial |
| Tweeter Unit | 1.5 inch tweeter * 1 | 1.75 inch tweeter * 1 | 1.75 inch tweeter * 1 | 1.75 inch tweeter * 1 |
| Woofer Unit | 8 inch woofer* 1 | 10 inch woofer* 1 | 12 inch woofer* 1 | 15 inch woofer* 1 |
| Standard coverage angle | 80° circular cone |
| Max SPL | 120dB | 122dB | 122dB | 128dB |
| Sensitivity(1W/1m) | 94dB/W(1m) | 95dB/W(1m) | 96dB/W(1m) | 98dB/W(1m) |
| Connector | SPEAKON NL4*1 PIN1+/2+POS. PIN1-/2-NEG(plus/minus 4 cores plugs) |
| Suspension Hardware | 20*M8 suspension point, base |
| Material | plywood |
| Surface treatment | environmental protection water based paint |
| Color | Champagne |

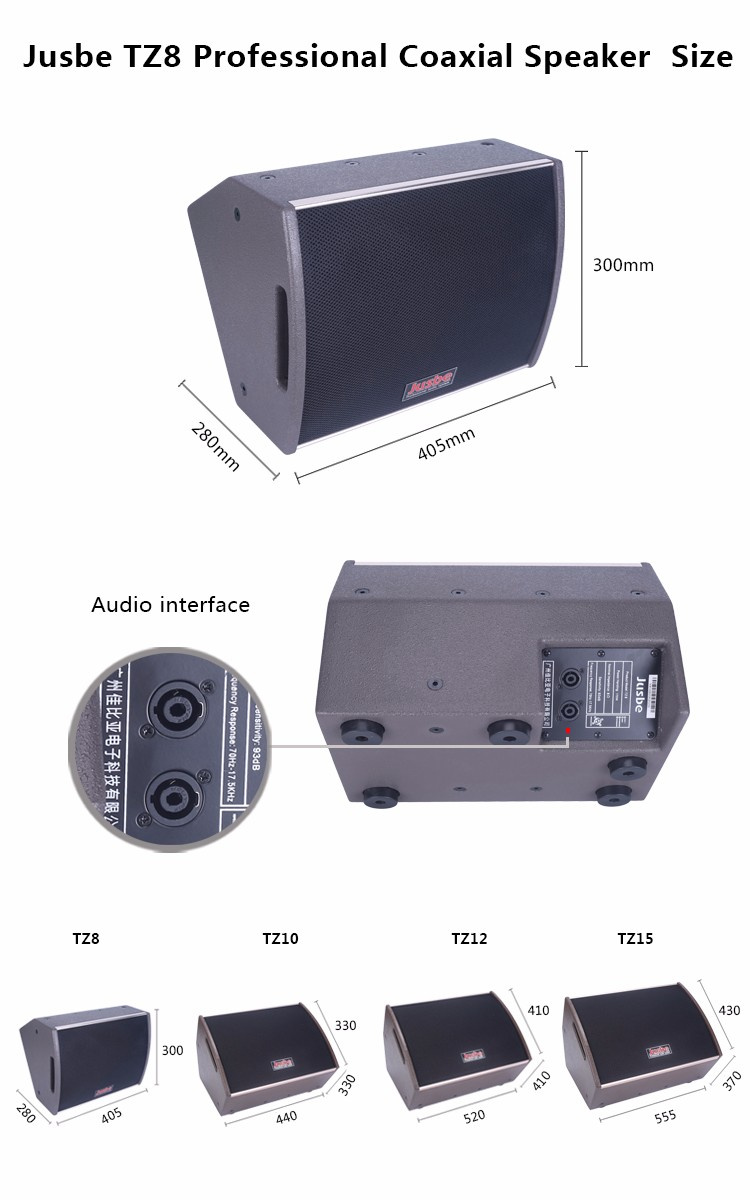

| Product Size(mm/pc H*W*D ) | 405*300*280 | 440*330*300 | 410*520*410 | 555*430*370 |
| Net Weight | 15KG | 19KG | 25KG | 29KG |
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...
Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.
In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.
It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.
Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
