80 Ton Eccentric Mechanical Power Press

Name: 80 Ton Eccentric Mechanical Power Press
Brand: tool-buy.com
SKU: 750538805
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 10000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	J23-80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	80ton
Power:	380V/50Hz/3phase
Overload Protected System:	Mechanical
Slide Adjustment:	Manual
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

Power Press

Features:

1)Adopts horizontally placed crankshaft.

2)Adopt rolling bearing instead of copper bush with lower noise and longer service life.

3)Casting body, inclinable body.

4)J23-80 and the upon models adopt balance cylinders.

5)All parts produced by us.

6)Rigid rotated bond clutch.

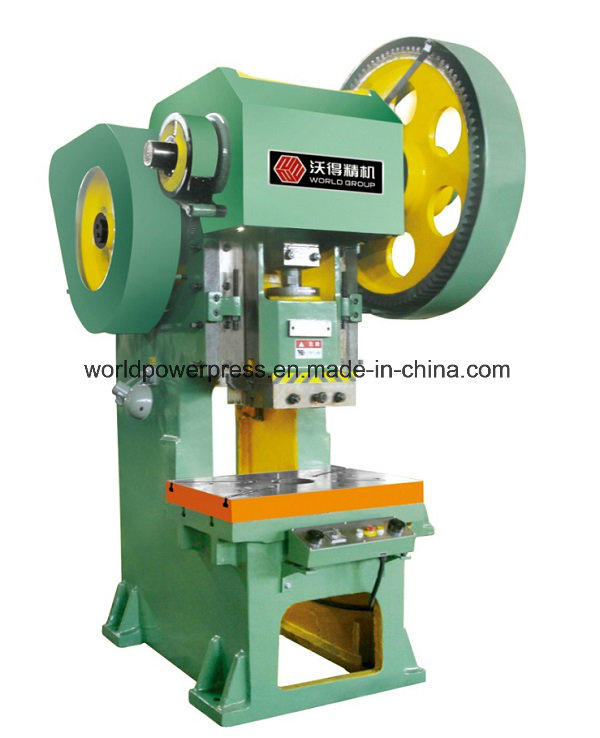

J23 Inclinable Eccentric Press with Capacity 6.3ton to 125ton

ITEMS		UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	JB23-63	J23-80	J23-100	J23-125
Nominal capacity		KN	63	100	160	250	350	400	630	630	800	1000	1250
Nominal stroke		mm	2	2	2	2.5	3.5	6	6	7	7	7	8
Slide stroke length		mm	35	45	55	65	80	90	110	110	120	140	150
Stroke times per minute		times	170	145	125	55	50	45	50	40	38	38	38
Max. die set height		mm	150	180	220	270	290	320	360	390	440	480	500
Die height adjustment		mm	30	35	45	55	60	65	80	80	90	100	100
Throat depth		mm	110	130	160	200	220	250	260	310	350	380	390
Distance between uprights		mm	150	180	220	270	280	340	350	420	450	560	550
Slide bottom size	Left to right	mm	140	170	200	250	250	300	300	400	430	540	540
Slide bottom size	Front to rear	mm	120	150	180	220	220	260	260	360	360	480	480
Stemhole size	Diameter	mm	30	30	40	40	40	50	50	50	60	60	60
Stemhole size	Depth	mm	55	55	60	60	60	70	70	70	75	75	75
Bolster size	Left to right	mm	310	370	450	560	610	700	760	860	950	1080	1100
	Front to rear	mm	200	240	300	370	400	460	480	570	650	710	720
	Thickness	mm	30	35	40	50	60	65	80	80	100	120	130
Table hole diameter		mm	60	80	100	120	130	150	180	180	200	220	240
Max. inclinable angle		°	45	35	35	30	30	30	20	20	20	15	13
Bolster surface height		mm	750	730	750	800	815	850	810	850	850	850	860
Over all dimensions	Left to right	mm	620	665	847	950	1058	1335	1350	1500	1715	1790	1790
	Front to rear	mm	780	900	1150	1345	1460	1721	1810	1958	2060	2404	2504
	Height	mm	1503	1658	1910	2130	2225	2488	2740	2868	3290	3625	3715
Distance between foundation bolts	Left to right	mm	314	394	450	600	650	750	850	920	1010	1130	1110
Distance between foundation bolts	Front to rear	mm	530	610	780	920	1020	1060	1180	1300	1360	1550	1710
Motor power		kw	0.75	1.1	1.5	2.2	4	5.5	5.5	7.5	7.5	11	11
Weight		kg	400	576	1085	1780	2650	3540	4550	5500	7390	10800	12035

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
