Prod Model: |
E Series |
Noise: |
<102dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Knob Control |
Speaker System: |
2.0 Channel |
Speaker Material: |
Wood |
Application: |
Home |
Certification: |
RoHS |
THD: |
>0.01% |
Monitor: |
No |
Product Description
80-Watt Compact Studio Monitor Speakers with 4-inch Woofer (Pair) and Powered amplifier for Home Studio Monitor System
Product Description

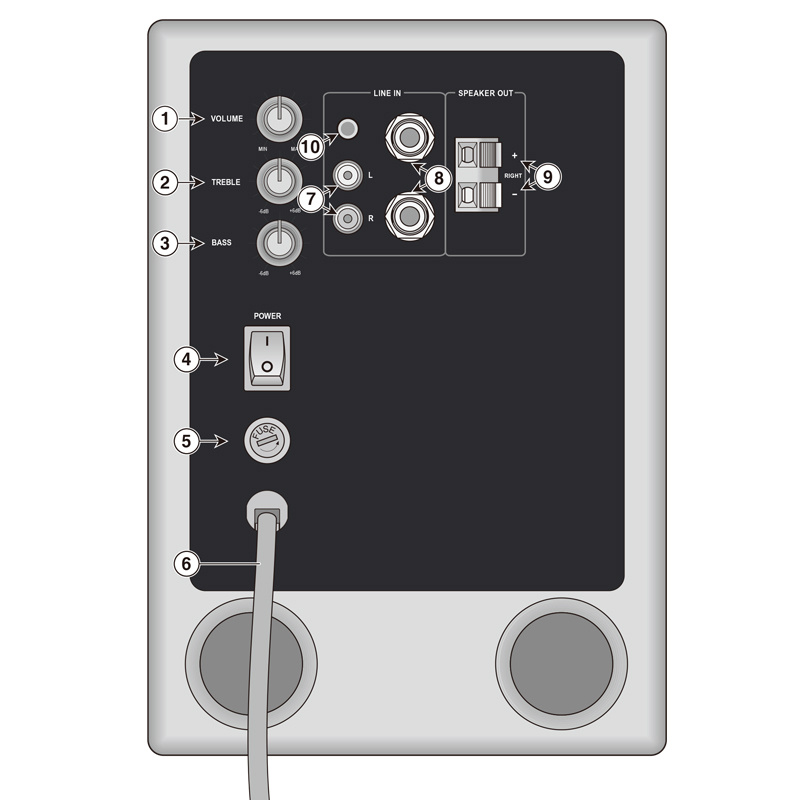

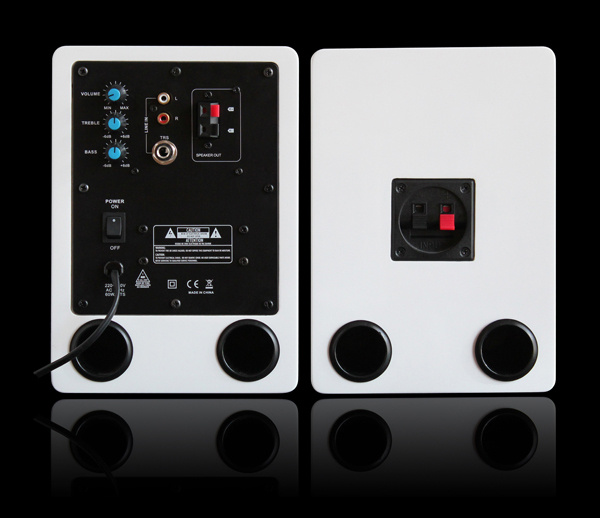

Vistron E series Studio Monitor (Pair ) powered monitors feature custom drivers made from glass aramid composite, with computer-aided design to ensure accurate tuning of the enclosures along with smooth corners to give exceptional response, improved imaging and separation. The drivers feature electronic crossovers and are bi-amped for increased efficiency. The rear input panel features RCA, XLR, and 6.3mm Jack connectors to accommodate any application.
SPECIFICATIONS- Custom glass aramid composite cone woofers
- 1″ neo soft dome tweeter with ferrofluid
- 4″ glass aramid composit bass driver
- Bi-amplified w/18dB oct.filters
- Optimized directivity high frequency waveguide
- Magnetically shielded
- Slotted ports to reduce distortion
- Balanced and unbalanced inputs
TECHNICAL INFORMATION
Power Rating (Peak): | 80W |
---|
Frequency Response: | 50Hz - 20kHz (±2dB) |
---|
Woofer: | 4″ (102mm) |
---|
Tweeter: | 1″ (25mm) |
---|
S/N Ratio: | 70dB |
---|
THD: | 0.1/0.1% |
---|
Connectors: | TRS / 6.3mm Jack / RCA |
---|
Power Supply: | 230Vac ~ 50Hz |
---|
Dimensions: | 240 x 168 x 180mm |
---|
Weight: | 6.9kg |
---|

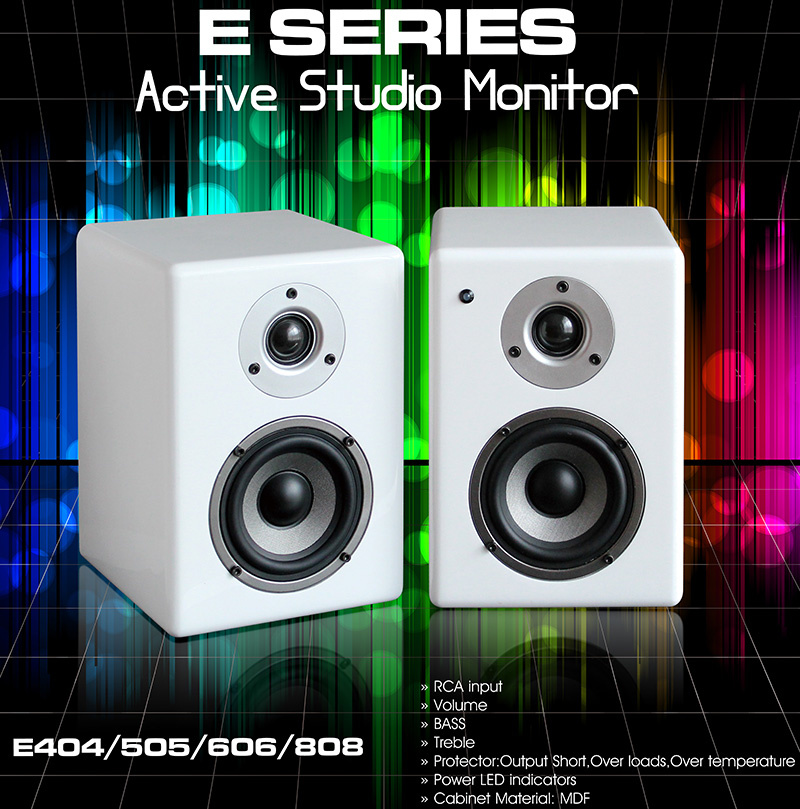

Notice: The E series active monitor bookshelf speakers have different size and power rating:
E404 with 4" woofer, Power Rating (Peak): 80Watts
E505 with 5" woofer, Power Rating (Peak): 150Watts
E606 with 6.5" woofer, Power Rating (Peak): 180Watts
E808 with 8" woofer, Power Rating (Peak): 250Watts
Except for above items, we also have many other speakers such as active and passive speakers,monitor speakers,bookshelf speakers,portable & floor speakers,
bluetooth speakers,bluetooth / wifi speakers and so on. All products can be do customized design, just contact me for more details.
Product of picture :
Packaging & Shipping
Products package
The home powered speaker packing info:
1 piece speaker packed in a giftbox firstly;
Box size:285*240*308 MM;
1 piece portable speakers packed in a outer carton;
Carton size:300*250*328mm.
Gross weight: 6.9 kgs
Accessories: RCA audio cable, user manual
