Prod Model: |
XN08 |
Operating Weight: |
850kg |
Bucke Width: |
380mm |
Rated Power: |
8.6kw |
Speed: |
1.5km/H |
Total Length Of Track: |
1230mm |
Track Width: |
180mm |
Chassis Width: |
896mm |
Platform Ground Clearance: |
380mm |
Track Height: |
360mm |
Type: |
Crawler Excavator |
Size: |
Small-Scale |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Bucket Capacity: |
0.025m3 |
Product Description
0.8 Ton Mini Digger Hydraulic Crawler Excavator with grab attachments XN08
Mini Excavator Description :
This mini excavator is desiged for small works , small for projects , in garden , farmland , municipal works , vegetable greenhouse , digging trench . It with small engine , simple design , easy to maintaince.

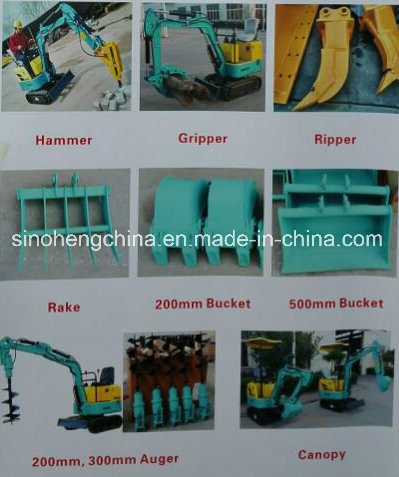

Mini Crawler Excavator attachments :
850KG Mini Excavator XN08 Specification :
Model | XN08 |
Operating Weight | 850kg |
Digging bucket capacity | 0.025cbm |
Bucket width | 380mm |
Engine | KOOP |
Rated power | 8.6 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke | 70x55 |
Main pump | ZANEDA |
Displacement | 6.8ml/r |
Hydraulic system pressure | 16 Mpa |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
MAIN DEMENSIONS |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
Diesel tank capacity | 10 L |
Hydraulic oil tank capacity | 16L |
OPERATING RANGE |
Max. Digging depth | 1650 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
Engine specification:
TYPE | Direct, single cylinder, 4 strokes, air cool |
COMBUSTION MODE | Director injector |
BORE x STROKE [mm(in)] | 92x75(3.62x2.95) |
DISPLACEMENT [L(cc)] | 0.499(499) |
COMPRESSION RATIO | 19:1 |
RATED POWER KW/rpm | 8.6/3600 |
RATER POWER HP/rpm | 11.7/3600 |
RATED SPEED (rpm) | 3600 |
STARTING TYPE | Electric |
FUEL CAPACITY [L(US.gal)] | 5.5(1.45) |
LUB. CAPACITY [L(US.gal)] | 1.65(0.44) |
FUEL CONSUMPTION [g(ml)/kwh] |
FUEL OIL MODEL 0# ( summer ), -10# ( winter ) diesel |
LUB. MODEL | SAE10W30 |
DIMENSION cm (in)] | 417x441x494 (16.42x17.36x19.45) |
WEIGHT [kg(lbs)] | Hand start:50(110.2) |
Electric start:55(121.3) |
DIRECTION OF ROTATION | Clock wised. |
Delivery Time : 10 days of working , after receive the receipt of advance payment of the buyer .
Packing&Shipping : Generally 6sets/20'GP , it can also by LCL, according to the excavators quantity that customer needs .
Warranty : 12 month or 1200 working hours.

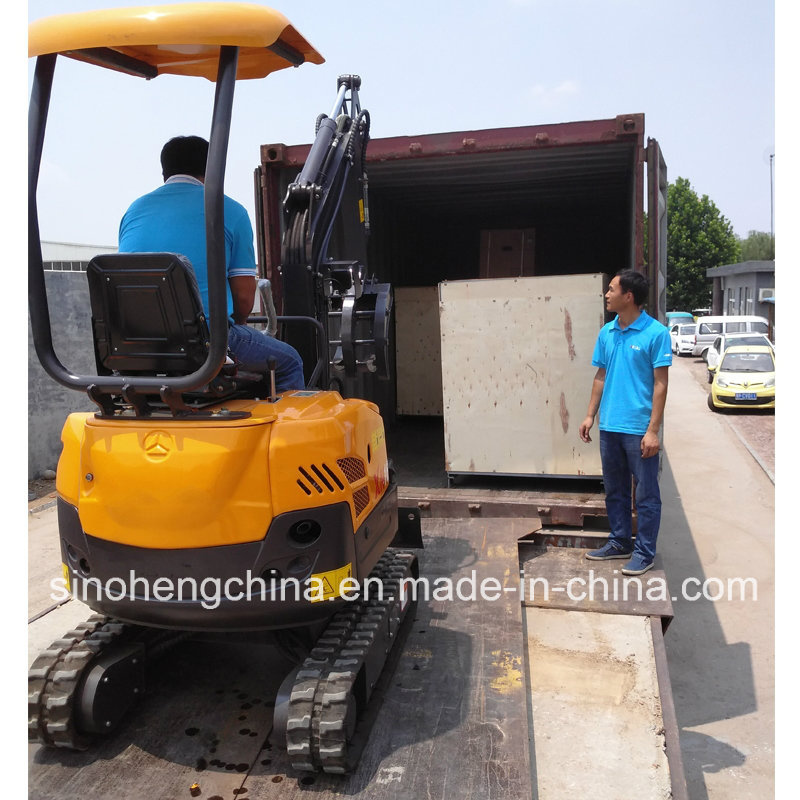

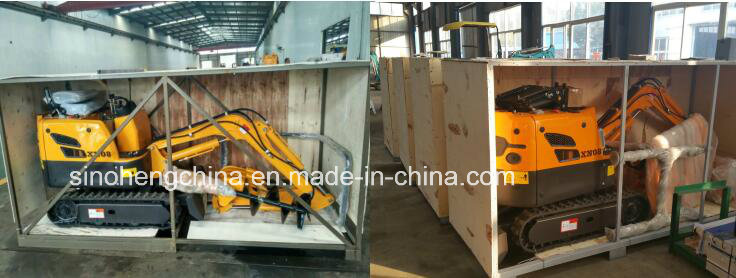

Mini Excavators Shipping Packaging Photos :
FAQ:
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers . Each machine is carefully tested before send to customer.
How many units can be put in container?
A: 6 units can be loaded in a 20 GP, 12 units in a 40GP.
Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year. There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
If you have interest in our mini excavators , pls feel free to contact with us !
