81000, 81200 Series Machine Tool Automobile Thrust Roller Bearing
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
811/530,811/850,81120,81122,81124,81126,81128 |
| Seals Type: |
Open |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small (',28-55mm) |
| Material: |
Bearing Steel |
| Separated: |
Separated |
| Load Direction: |
Axial |
Product Description
Advantages and Features- XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
- XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
- XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional.
- The bearing is long durability, high speed and low noise.
- OEM & ODM are available.
- All kinds of bearing simples are available.

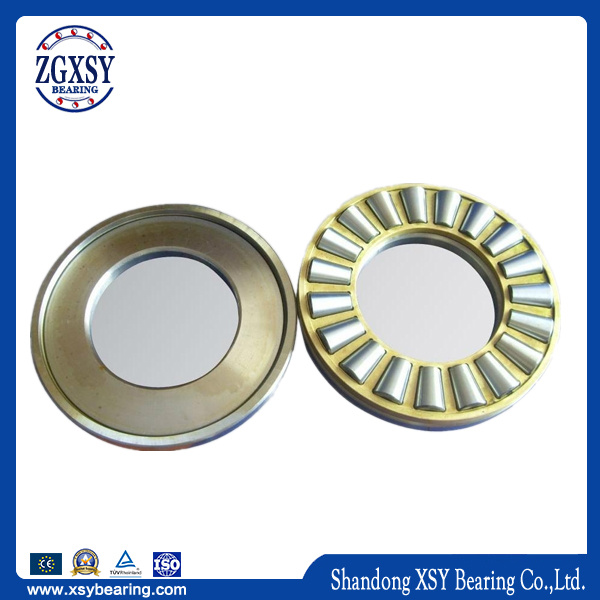

About Thrust Roller BearingA thrust bearing is a particular type of rotary rolling-element bearing. Like other bearings they permit rotation between parts, but they are designed to support a predominately axial load.
XSY bearings produce three kinds of thrust bearings, Thrust ball bearings, Cylindrical thrust roller bearings, Tapered roller thrust bearings.
Cylindrical thrust roller bearings consist of small cylindrical rollers arranged flat with their axes pointing to the axis of the bearing. They give very good carrying capacity and are cheap, but tend to wear due to the differences in radial speed and friction which is higher than with ball bearings.
Tapered roller thrust bearings consist of small tapered rollers arranged so that their axes all converge at a point on the axis of the bearing. The length of the roller and the diameter of the wide and the narrow ends and the angle of rollers need to be carefully calculated to provide the correct taper so that each end of the roller rolls smoothly on the bearing face without skidding.
Spherical roller thrust bearings use asymmetrical rollers of spherical shape, rolling inside a house washer with a raceway with spherical inner shape. They can accommodate combined radial and axial loads and also accommodate misalignment of the shafts. They are often used together with radial spherical roller bearings. Spherical roller thrust bearings offer the highest load rating density of all thrust bearings.

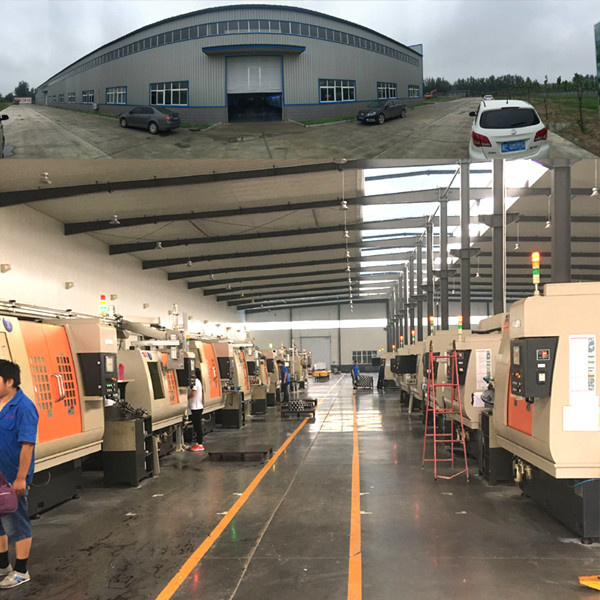

Aout us
Shandong XSY bearing Co., Ltd. is an enterprise majoring in the manufacturing of precision bearings. It has a integrate service chain of research, producing and sales. The bearings with brand trademark of "ZGXSY" win good quality reputation in domestic bearing market. The company is equipped with modern production facilities and advanced testing instruments, mainly specific to imported top-range products. We professionally produce precise bearings such as spherical roller bearings, thrust ball bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, thrust spherical roller bearings and so on. The productions are widely used as auxiliary products in metallurgy, electrical machine, mine, petroleum, chemical, coal, cement, paper making, wind electricity, heavy machinery, engineering machinery, port machinery and other industries.

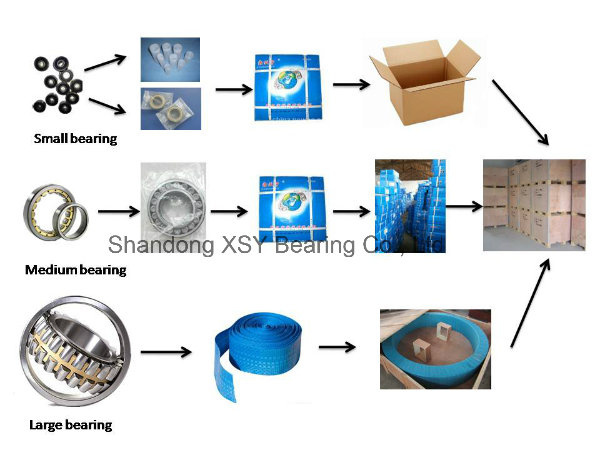

Packaging & ShipmentsPackaging Details:
1.tube /plastic bag+box+cartons+pallets
2.plastic bag+single box+cartons+pallets
3.industrial packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.
ApplicationThese are the type most commonly used in automotive applications (to support the wheels of a motor car for example), where they are used in pairs to accommodate axial thrust in either direction, as well as radial loads. They can support greater thrust loads than the ball type due to the larger contact area, but are more expensive to manufacture.
FAQ 1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind guidance.| Mod No. | Size(mm) | Weight(kg) |
| 81120 | 100*135*25 | 1 |
| 81122 | 110*145*25 | 1.1 |
| 81124 | 120*155*25 | 1.23 |
| 81126 | 130*170*30 | 1.7 |
| 81128 | 140*180*31 | 1.95 |
| 81130 | 150*190*31 | 2.05 |
| 81132 | 160*200*31 | 2.2 |
| 81134 | 170*215*34 | 2.95 |
| 81136 | 180*225*34 | 3.05 |
| 81140 | 200*250*37 | 3.74 |
| 81140/YA | 200*250*37 | 4.28 |
| 81188 | 440*540*80 | 41.5 |
| 811/530 | 530*640*85 | 55.5 |
| 811/850 | 850*1000*120 | 177.15 |
| 81206 | 30*52*16 | 0.12 |
| 81207 | 35*62*18 | 0.2 |
| 81208 | 40*68*19 | 0.27 |
| 81209 | 45*73*20 | 0.3 |
| 81210 | 50*78*22 | 0.43 |
| 81211 | 55*90*25 | 0.708 |
| 81212 | 60*95*26 | 0.64 |
| 81213 | 65*100*27 | 0.874 |
| 81214 | 70*105*27 | 0.77 |
| 81215 | 75*110*27 | 0.979 |
| 81216 | 80*115*28 | 0.9 |
| 81217 | 85*125*31 | 1.44 |
| 81218 | 90*135*35 | 1.75 |
| 81220 | 100*150*38 | 2.58 |
| 81222 | 110*160*38 | - |
| 81222M | 110*160*38 | 2.8 |
| 81224 | 120*170*39 | 2.7 |
| 81224M | 120*170*39 | 2.94 |
| 81226 | 130*190*45 | 4.29 |
| 81228 | 140*200*46 | 4.55 |
| 81230 | 150*215*50 | 5.9 |
| 81232EA | 160*225*51 | - |
| 81232 | 160*225*51 | 6.2 |
| 81234 | 170*240*55 | 7.7 |
| 81236 | 180*250*56 | 8.25 |
| 81240 | 200*280*62 | 13.7 |
| KIW-81136/P4 | 210*225*24 | 2.23 |
| K81701 | 12*30*3.5 | - |
| K81703 | 17*35*4.5 | - |
| K81704 | 20*42*5 | - |
| K81707 | 35*60*6 | - |
| K81709 | 45*70*6 | - |
| K81712 | 60*95*7.5 | - |
| 817/25.05ZS | 25.05*45*13.8 | 0.0872 |
| 817/30.05ZS | 30.05*54*13.8 | 0.12 |
| 81707ZS | 35*62*18 | 0.207 |
| 817/38.5ZS | 38.5*66.7*18 | - |
| 817/38.5ZS | 38.5*66.7*18 | 0.254 |
| 871/710ZW/P5 | 710*850*63 | 79 |
| 871/850ZW/P5 | 850*1000*67 | 97.1 |
| 871/950ZW | 950*1120*78 | 147 |
| 871/1000ZW | 1000*1180*82 | 184 |
| 871/1180ZW | 1180*1400*100 | 308 |
| 871/1180ZW/P5 | 1180*1400*100 | 311.29 |
| 811/1800ZW | 1800*2080*220 | 1278 |
