| Prod Model: |
KZ-LJB-8 |
| Usage: : |
Reinforced Concrete Drilling,Granite Drilling, |
| Application: : |
Granite,Marble,Concrete Drilling and Construction |
| Feature: |
Sharpness,Smooth Cutting |
| Wet And Dry: |
Wet and Dry |
| Diameter: |
6-200mm |
| Blade Welding Technology: |
Brazed Welding |
| Material: |
High Quality Diamond and Metal |
| Customized: |
Customized |
Product Description
Technology Introduction:
Vacuum Brazing is a material jointing process that directly bonds diamond to the blade. It is a three steps process that creates a bond which is significantly stronger that other joining methods.Vacuum brazed diamond blades are made with a much higher quality process than typical sintered or laser welded diamond blades. Blades mostly have a mixture or diamond matrix of different materials that are bonded onto the steel core of the diamond blade. With the vacuum brazing process, the segments are coated in diamonds. Instead of regular diamond blades that wear away and almost re sharpen themselves, vacuum brazed blades use the exterior of the segment of the cutting edge.
Usage:
Brazing diamond drill, is mainly used for drilling granite, marble, ceramic, wall, etc., wet and dry can be used. Processing of high efficiency, long service life, good chip removal performance.
Features:
1. Fast, smooth drilling and long life;
2. Competitive price
3. Superior performance and durability.
4. Grit:#30,#40,#50,as customer request
5. Thread:M14 & Hexagonal Shank
6. Diamond Tip Height: 10mm
7. Diameter: 6mm-200mm
8. Support OEM
Advantages:
*For drilling granite, marble, ceramic, wall, etc.
*Perfect safety, excellent fast, high efficiency and complicated shape
*Rather longer life than the electroplated tools.
*Various diamond grain and grade to meet various application-cutting, drilling, grinding.
*Environment friendly
*Special application and design are available upon request
| Diameter/mm | Hole Diameter | Depth of Drilling |
| | Parallel Shank | Thread Shank | Gas Threadf | |
| 6mm-200mm | 5mm-13mm | M3/8''orM5/8''orM14,etc | G1/2'' | 40mm |

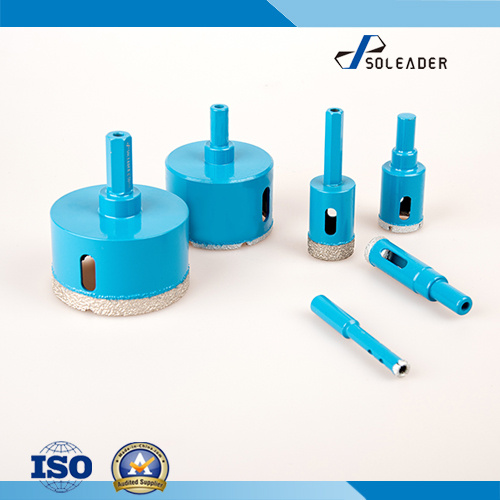

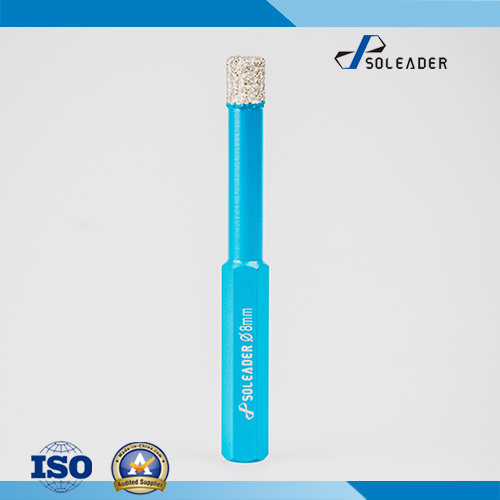

Hexagonal shank brazed diamond drill bit | NO. | Model | Matrix length | Segmenth height | Grits |
| 1 | KZ-LJB-6 | 67 | 10 | 40-50 |
| 2 | KZ-LJB-8 | 80 | 10 | 40-50 |
| 3 | KZ-LJB-10 | 80 | 10 | 40-50 |
| 4 | KZ-LJB-12 | 80 | 10 | 40-50 |
| 5 | KZ-LJB-14 | 80 | 10 | 40-50 |
| 6 | KZ-LJB-16.5 | 80 | 10 | 30-50 |
| 7 | KZ-LJB-18 | 80 | 10 | 30-50 |
| 8 | KZ-LJB-22 | 80 | 10 | 30-50 |
| 9 | KZ-LJB-25 | 80 | 10 | 30-50 |
| 10 | KZ-LJB-28 | 80 | 10 | 30-50 |
| 11 | KZ-LJB-30 | 80 | 10 | 30-50 |
| 12 | KZ-LJB-33 | 80 | 10 | 30-50 |
| 13 | KZ-LJB-35 | 80 | 10 | 30-50 |
| 14 | KZ-LJB-38 | 80 | 10 | 30-50 |
| 15 | KZ-LJB-44 | 90 | 10 | 30-50 |
M14 internal thread brazed diamond drill bit
| NO. | Model | Matrix length | Segmenth height | Grits |
| 1 | KZ-M14-6 | 62 | 10 | 40-50 |
| 2 | KZ-M14-7 | 62 | 10 | 40-50 |
| 3 | KZ-M14-8 | 62 | 10 | 40-50 |
| 4 | KZ-M14-10 | 62 | 10 | 40-50 |
| 5 | KZ-M14-12 | 62 | 10 | 40-50 |
| 6 | KZ-M14-14 | 62 | 10 | 40-50 |
| 7 | KZ-M14-16.5 | 62 | 10 | 40-50 |
| 8 | KZ-M14-18 | 62 | 10 | 40-50 |
| 9 | KZ-M14-20 | 60 | 10 | 30-50 |
| 10 | KZ-M14-22 | 60 | 10 | 30-50 |
| 11 | KZ-M14-25 | 60 | 10 | 30-50 |
| 12 | KZ-M14-28 | 60 | 10 | 30-50 |
| 13 | KZ-M14-30 | 60 | 10 | 30-50 |
| 14 | KZ-M14-33 | 60 | 10 | 30-50 |
| 15 | KZ-M14-35 | 60 | 10 | 30-50 |
| 16 | KZ-M14-38 | 60 | 10 | 30-50 |
| 17 | KZ-M14-44 | 60 | 10 | 30-50 |
| 18 | KZ-M14-45 | 60 | 10 | 30-50 |
| 19 | KZ-M14-50 | 60 | 10 | 30-50 |
| 20 | KZ-M14-52 | 60 | 10 | 30-50 |
| 21 | KZ-M14-55 | 60 | 10 | 30-50 |
| 22 | KZ-M14-57 | 60 | 10 | 30-50 |
| 23 | KZ-M14-60 | 60 | 10 | 30-50 |
| 24 | KZ-M14-63 | 60 | 10 | 30-50 |
| 25 | KZ-M14-68 | 60 | 10 | 30-50 |
Note:Various spec. and size available upon client's request
Soleader Tools Can also Manufacture and Provide New Products:
- Brazed diamond drill bit
- Brazed diamond cup wheel
- Brazed diamond saw blade
- Brazed diamond profiling wheel
- Brazed diamond hand profiling
- Brazed diamond graver
- Brazed diamond drum wheel
- Brazed diamond wire saw
FAQ:
Q1: Do you have your own brand?
A1: Yes, the brand name is SOLEADER , we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on European and Noth America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest oscillating multi tool saw blades suppliers in China.
Q4: What is your MOQ?
A4: 500 pcs/blade
Q5: What is about the payment and delivery time?
A5: Delivery time: Within 30days after receiving your advance payment.
Payment: TT,LC,Western Union, Paypal, Money Gram,etc
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check.
Q7: How does your factory do regarding quality control?
A7: Quality is priority.Soleader People always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
Q8. How is your quality?
A8. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q9. Do you have different quality for different kind of stone?
A9. Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q10. If we need technical support, can you offer us?
A10. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
Q11. Is there cheap shipping cost to import to our country?
A11. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.
Q12. When you can reply to me when I send you an Inquiry?
A12. We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
Q13. Do you offer free samples?
A13. Normally we do not offer free samples, but we could properly adjust according to detailed requirement
Please feel free to contact me if you have any concerns!
After-sales Service
Reply within 24 Hours
Professional consultation service is available within 24 hours after receiving your feedback regarding the iterms that that you bought.
Global Insurance Service
Global insurance service guarantees the safety of iterms when installation and application.
Compensation Policy
Any quality problem caused by our company side with enough evidence, we promise you that if could be re-produced for free.
Contact us, you will get more than what you see.
Located in Suqian National Economic and Technical Development Zone, Jiangsu Soleader Electrical Technology Co. Ltd, relying on engineering technology of famous university, is a high-tech enterprise specializing in the research, development and production of brazed diamond tools and relative equipment. The registered capital is 20 million yuan. The main products of our company include diamond tools. The products and equipments are widly used in machinery, shipbuilding, automobile, mining, stone processing, transport and municipal infrastructure construction and other fields.
The company's experienced R&D and marketing management team is of excellent quality. The main management members and backbones of core technology have been ever engaged in R&D and management in the famous universities and enterprises home and abroad. The company has advanced production equipment and complete quality assurance system of supervision. We are dedicated to provide customers with comprehensive technical solutions, products of first-class and efficient after-sales service.
As a leader enterprise in the introduction of the development and manufacturing of diamond tools technology into the domestic market, our company will closely follow national frontiers and the development of strategic emerging industry. Based on mastering the cutting-edge innovative technology and market demand, we are ceaseless to meet customer's needs through continuous research in the related field products and strive to grow into the industry's planner and leading high-tech enterprise.
In the light of the principal of mutual benefit and common development, Jiangsu Soleader Electrical Technology Co. Ltd cherishes the good willing to create the brilliance with our customers!
