9.5 Inch steel Tooth Tricone Drill Bit for Oilfiled Drilling
| Price: |
US $ 620-2500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
9.5 inch steel tooth drill bit |
| Color: |
Blue, Yellow, Red, Gold etc |
| Advantage: |
High Performance and Best Price |
| Product Name: |
Steel Tooth Tricone Drill Bit |
| Application: |
Soft Soil |
| Type: |
Steel Tooth Tricone Drill Bit |
Product Description

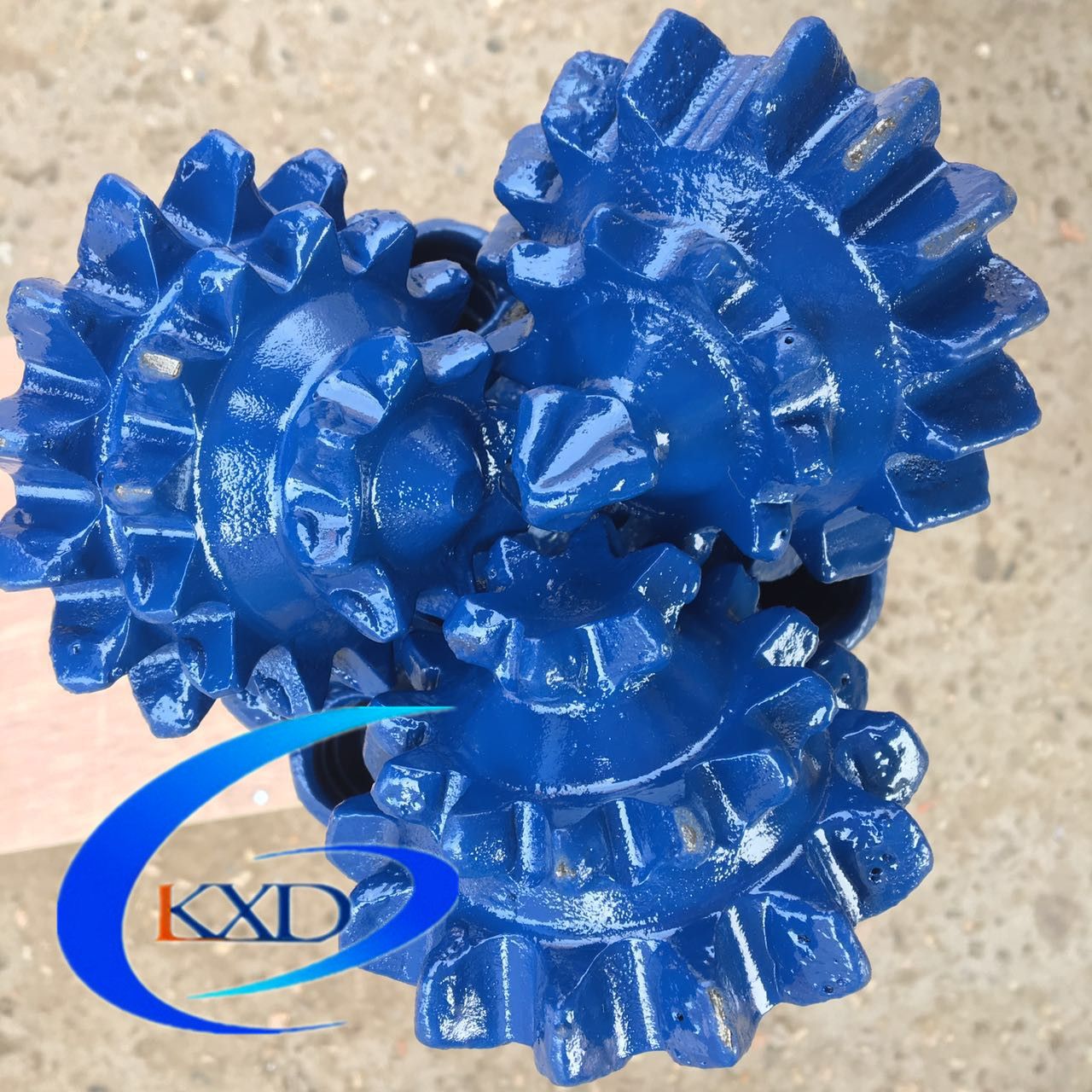

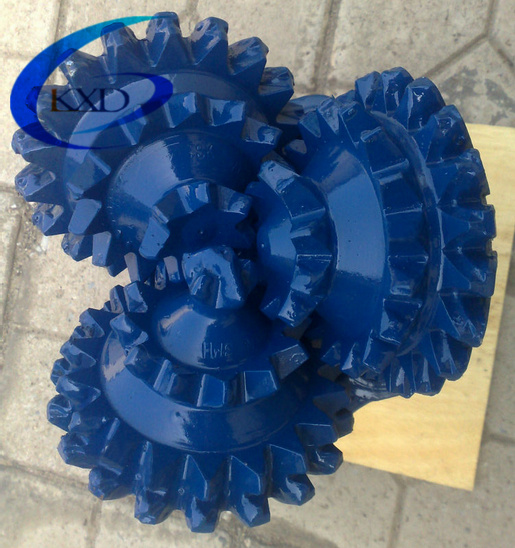

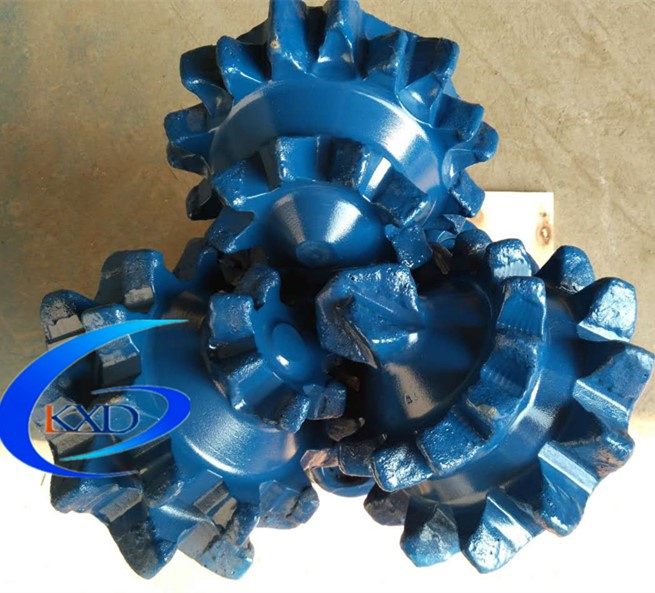

9.5 inch Stell Tooth tricone drill bit for oilfiled drilling
1.Introduction about us:
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional manufacturer of drilling equipments and tools which is located in Hejian City, the centre of the triangle of Beijing, Tianjin and Shijiazhuang, enjoying convenient transportation.
Our products Including below three series with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener and trenchless bit;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tapetc.
Our staff are professional and experienced. By the hard efforts and united cooperation, we haveestablished a wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old customers to order.
2.Product Description:
Steel tooth tungsten carbide rock drill bits
Steel tooth rock bits or named as milled tooth rock bits, can be called as MT rock bits which are manufactured with superior quality steel and advanced technologies, designed for use with compressed air or fluid circulation systems. Steel tooth bit surface apply welding new wear-resisting material in keeping Mining Bit high mechanical drilling rate at the same time, improve the bit cutting tooth life. It is widely used in soft to medium formation for water well drilling.
Steel tooth tricone drill bits have very high drilling rates in soft formations. Lockheed can hard face the milled teeth so that they sharpen themselves while drilling. Milled tooth tricone bits are designed for very soft to medium hardness formations.
Steel tooth tungsten carbide rock drill bits(OIL FIELD, MINING & WATERWELL)| FORMATION | USED IN | COMMON IADC |
| SOFT | Clays, coal, salts, shales, soft
limestone, discontinuous sands etc.. | 114-117 |
| MEDIUM | Sedimentary rocks, limestone,
sandstone, slate etc. | 121-137 |
| HARD | Varieties of silica, basalt, dolomite,
compact sands, limestone etc. | 213-217 |
| VERY HARD | Marble, quartzite, granite, gneiss,
pyrite, etc | 337 |
Milled tooth tungsten carbide rock drill bits can be retipped & built up with hard tungsten
Both open bearing and sealed bearing Mill Tooth Tricone Roller cone bit can come with or without gauge protection & skirttail protection.
Sealed Bearing steel tooth tungsten carbide rock drill bits with or without gauge protection
These are the best preforming and longest lasting style of tricone on the market.
Guage protection increases the life of the drill bit.
Open Bearing steel tooth tungsten carbide rock drill bits can come with or without gauge protection
These are less expensive then sealed bearing but they typically do not last as long. | Model | Steel tooth tungsten carbide rock drill bits , TCI tungsten carbide rock drill bits |
| IADC Code | 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
| 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 |
| Bearing Type | H---Friction bearing; G---Roller bearing; F--- Floating Bearing |
| Sealing Type | HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing) air cooled bearing type |
| Size | From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit |
| Material | alloy steel, tungsten carbide insert |
| Extra Feature | 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection |
| Applicable Formation | Very soft, soft , medium soft ,hard, medium hard, very hard formation |
| Application | Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work |
| Package | Seaworthy packing wooden case or as your requirement |
| Payment Term | T/T, L/C at sight |
| Lead Time | 3-7 work days |
| Delivery Way | By sea or by air |
All sizes and IADC codes of drill bits are available.
Special requirements of different models can be customized.
3.Packaging and shipping:
Shipping: By sea or by air for exporting goods.
packaging: wooden boxs
4.Our services
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
5.FAQ
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
6.Contact with us
Pls do not forget to add below information in your inquiry which will help us to give you the exact quotation at the first time:
1) the size of the tricone bit you need
2) the IADC code of the bit, like 537G
3) the drilling information of the layer
4) quantity
Welcome visit our page, any need pls feel free to contact me.
I'm Debbie, always at your service!
Mob: +8613283205233
Established in 1998, Cangzhou Lockheed Petroleum Machinery Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments
And tools, which is one of the leading corporations of drilling tools and workover
Fishing tool manufacturing industry. Including three series with full model types, as
Follows:
Drilling Bit series: Rock roller bit, tricone bit, PDC drill bit, single bit, cone bit and hole opener;
Drilling Equipment Parts series: Downhole motor, manual tong, elevator, slips,
Stabilizer;
Workover Fishing Tool series: Releasing spear, junk basket, overshot, reversing
Sub, die collar, fishing tap etc.
Cangzhou Lockheed Petroleum Machinery Co., Ltd. is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway
No. 106, 166km away from Beijing, 110km away from Tianjin and 35km away from
Baiyangdian, the Pearl of Huabei Area. More convenient transport, faster delivery,
And more trustful enterprise is your best choice. Come on, join us.
Our goal: Strive for Perfection and Win by Quality.
