Home Toolbuy Products 9.5kw Gasoline Generator with Electric Start

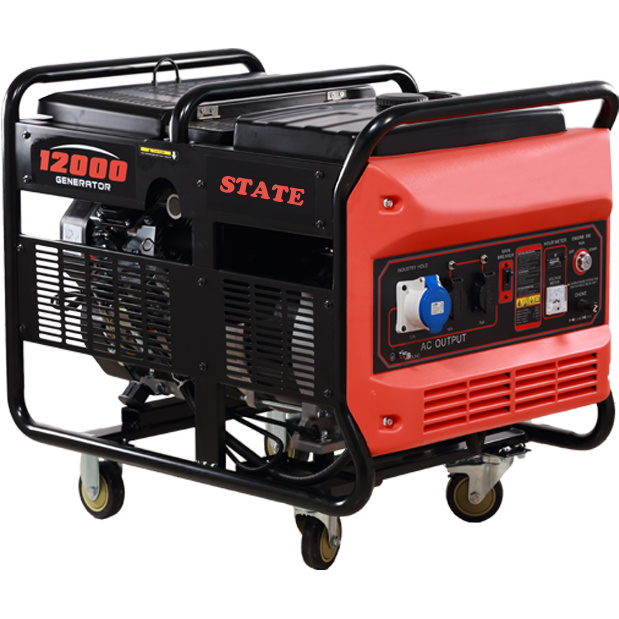

9.5kw Gasoline Generator with Electric Start

9.5kw Gasoline Generator with Electric Start
Price: US $ 2285/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ST-GG9.5KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Powered By: State
Cooper Coil: 100%
Single Phase: Yes
DC Output: 12V
Power Factor: 1.0
Gasoline: Yes
Compression Ratio: 7:1
Rated Speed (Rpm): 3000/3600
Lubrication Oil: SAE15W40 (Above Cc Grade)
Engine Type: Single-Cylinder, 4-Stroke
Output Type: AC Single Phase

Product Description



Specifications:
                     Model                      LC12000
                     Engine model                      LC2V78FD-1
                     Engine type                      Air-cooled,4-stroke,ohv90L,V-twin cylinders
                     Power output                      13.4kW/3600rpm
                     Bore×Stroke                      78mm×71mm
                     Displacement                      678cc
                     Oil capacity                      1.6L
                     Ignition system                      Transistorized magneto
                     Starting system                      Electric start
                     DC Voltage/current                      12V/8.3A
                      Rated frequency                      50 Hz/ 60 Hz
                     Rated voltage                      220 V/230 V/240 V
                     Rated output                      9.5kW
                     Max power                      10.5kW
                     Fuel tank capcity                      25L
                     Continuing                      7h
                     Dimension                      868×635×676
                     Net weight                      160kg
Features:
Powerful commercial V-type engine of State with lower vibration, lower emission, more durable, more stable, more reliable and larger power.
Precise ignition control, saving significantly oil consumption with intelligent RPM control according to load, both economically and efficiently;
Short-circuit protection is more considerate, safe, reliable and efficient;
Human-based design concept and integrated operation panel, clear and easy to operate.
Well-designed commercial high-power State generator is suitable for 110-415V voltage range, with single/three phase and minimizes the maintenance cost.
Equipped with safety protection system and super large tank to ensure a long-time operation and continuous operation at rated power for 7 hours.
Machine oil protection system: it will give an alarm to shut down when oil level is low, preventing the engine from being operated under low oil level and giving more protection to engine.
Omnidirectional moving wheels can realize the drag, pull and turn at a stretch more easily.
Options:
1. Various appearance colors are available for user option;
2. It is suitable for European, American and Australian style civil and industrial sockets;
3. Optional frequency: 50HZ/60HZ.
4. Optional voltage: 110/120/220/230/240V.
5. Optional single or three phase 380/400/415V.
6. Optional built-in or external storage battery.
7. Optional multiple voltage indications (light indicator, pointer gauge, LED gauge)
8. Multiple timing gauge options.



State Machine Co., Ltd, founded in 2005, is a subsidiary of State Group, one of the Top 500 Company in China.
Covering an area of 800, 00 m2, we have almost 1, 150 sets of advanced equipment with a high quality technology and research team of 35 excellent technicians. After many years of development, we now have production capacity of 600, 000 lawnmowers annually and with 1500 employees, of which more than 490 have attained junior and above degree qualifications.

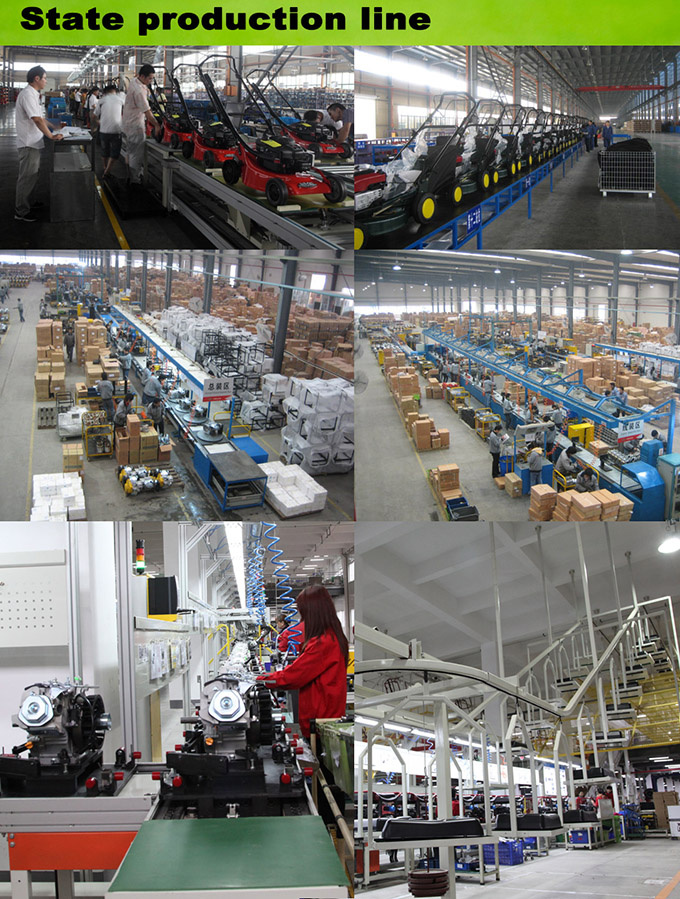

Garden Product lines:  ---- 35,000 pcs per month
Line A: Lawn mower line---cycle time 20s
Line B: Lawn mower line---cycle time 20s
Line C: Ride on mower line ---cycle time 60s
Line D: Chain saw line---cycle time 20s
Line E: Brush cutter line---cycle time 20s

Engine line- 100,000 pcs per month
Line A:  Horizontal/Vertical engine line---cycle time 20s
Line B:  Horizontal engine only lines---cycle time: 20s
Line C:  Engine pilot production line---cycle time 40s
Line D:  Vertical engine only lines---cycle time: 20s (Planning)
Line E:  V-twin engine/diesel engine line---cycle time 60s


Advantage:

1. Professional : 10 years manufacturing experience of gasoline/petrol engine Power equipments.
2. OEM/ODM: Acceptable.
3. Super Service : Well-known enterprise cooperation experiences,  Professional and best Service Team.
4. Good Quality :We have strict quality control system & team. High reputation in the market.
5. Fast Delivery Time & Cheap Freight: We have big discount from our own Agent
6. The professional team of product development.



After-sales Service:

1: 24 months warranty policy
2: We will send Free Of Charge spare parts replace the defective or broken parts in the next order
3: Choose the cheapest and safest shipping company to save the cost
4: Track the order until you get the goods
5: Protection of your sales area, ideas of design and all your private information



Why Choose State?

(1)10 years Power equipment Manufacturing Experiences
(2) Well-known enterprise cooperation experiences
(3) Quick and Safe Delivery
(4) Professional and best Service Team
(5) Professional team of product development
(6) Provide OEM and ODM Services
(7) High reputation in More Than 80 Countries
(8) Full range Outdoor power equipment products for choice
(9) Competitive Price , Attractive Design ,Best performance, High Good Quality


State Machine Co., Ltd, founded in 2005, is a subsidiary of State Group, one of the Top 500 Company in China.

State Company is a leading professional manufacturer and exporter of garden machines, Outdoor Power Equipment in China. We are located in Fujian Province, China. Not only a manufacturer, State is also a professional R&D organization working in Garden Equipment and Outdoor Power Equipment. We continually develop products according customer needs. With more than 700 items, including LAWN MOWER, RIDING MOWER, BRUSHCUTTER, CHAIN SAW and GENERATOR SETS. We are very proficient in our range of products.

Covering an area of 800, 00 m2, we have almost 1, 150 sets of advanced equipment with a high quality technology and research team of 35 excellent technicians. After many years of development, we now have production capacity of 600, 000 lawnmowers annually and with 1500 employees, of which more than 490 have attained junior and above degree qualifications.

Based on our principle "Complete Service to our clients on the basis of market demand", we are always striving to provide our customers with top quality products and excellent service.

State sales covers 50 countries and regions globally, including U. S. A., Australia, Europe, Middle East and Southeast Asia etc.

State cooperates with leading garden equipment companies in the international market.

Our brand names are: "STATE", "BULL" but we also produce according to your requirements.

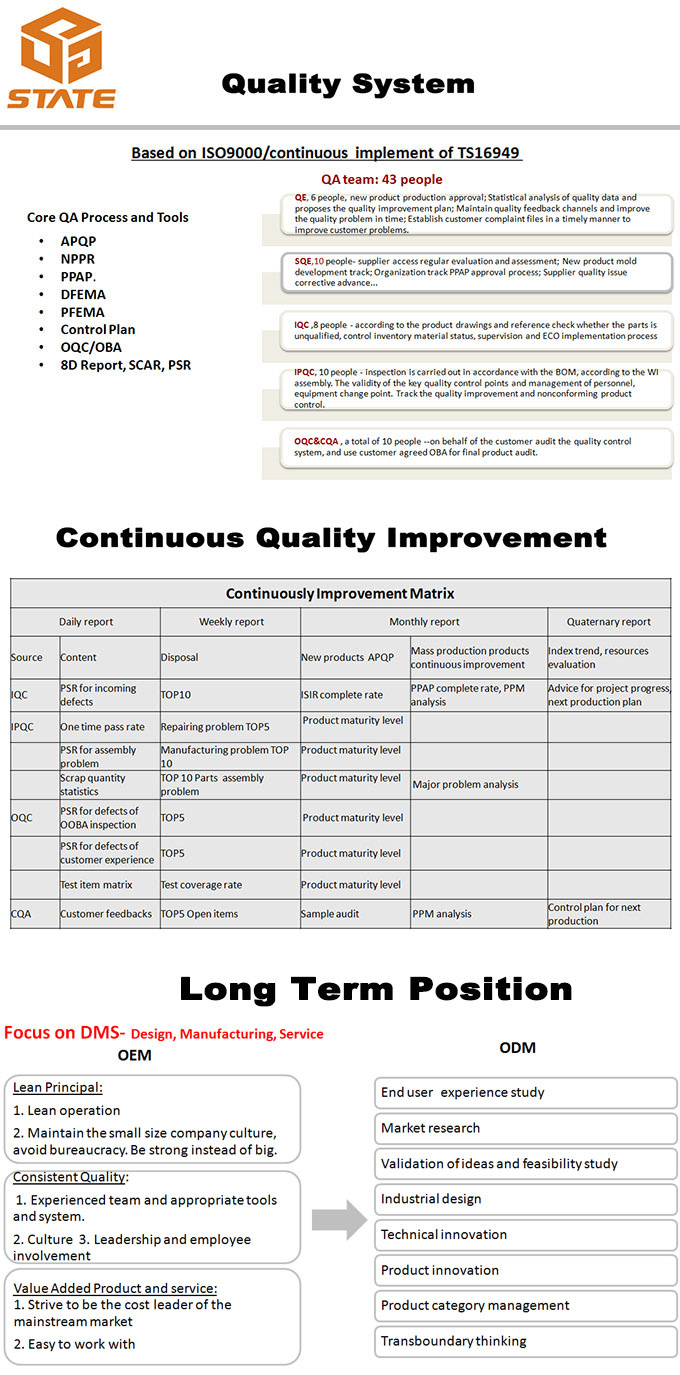

In July 2006, State implemented ISO9001: 2000 Quality Management System, and its lawn mowers series gained the CE Certificate by EU.

In October 2006, the GS Certificate in Germany therefore becoming the first company with those certificates in the same trade in China. Meanwhile, 11 patent rights covering lawn mower series researched and developed by State won the Certificate of New and Practical Patent awarded by The State Bureau of Knowledge and Property Right.

State Company also exports the best domestic chain saw (sole agent), and this is widely accepted and approved by our international customers.

State Company prides itself as having the best R and D team as well as technicians in this industry.

We look forward to being of service to you with your future requirements.
