9 Inch Quick Release Workbench Vise
| Price: |
US $ 14.8-15/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KM230L |
| Name: |
9 Inch Quick Release Workbench Vise |
| Model No.: |
Km230L |
| Color: |
Blue or as Request |
| Width Of Jaw: |
230 mm |
| Max. Opening: |
330 mm |
| Throat Depth: |
103 mm |
| Quantity/CTN: |
1 PCS |
| Packing Size: |
57X25X22 Cm |
| N.W.: |
16.5 Kg |
| G.W.: |
18.5 Kg |
| Material: |
Metal |
| Usage: |
Heavy Duty Clamp |
| Standard: |
Standard |
| Structure: |
Cutting Crimping |
| Brand: |
Hongzun |
Product Description
Product name: 9 inch Quick Release Workbench Vise
Product specification:
| Art NO. | Specification(inch) | Width of jaw(mm) | Max opening(mm) | Throat depth(mm) | Q' ty/Ctn(pcs) | G.w./N.w.(kgs) | Packing Size(cm) |
| KM178 | 7" | 178 | 200 | 77 | 1 | 10/9 | 42x20x18 |
| KM230 | 9" | 230 | 255 | 103 | 1 | 18/16 | 49x25x22 |
| KM230L | 9" | 230 | 330 | 103 | 1 | 18.5/16.5 | 57x25x22 |
| KM265 | 10-1/2" | 265 | 390 | 103 | 1 | 20/18 | 63x28x22 |
| KM330 | 13" | 330 | 360 | 100 | 1 | 21/20 | 58x34x22 |
Product feature:
1.Made from high strength steel
2.Buttress Thread and End Stop
We use a buttress tread for the main screw. This thread style provides smoother operation and better clamping force. The end stop on the vise prevents the vise from being opened too far.
3.Rapid Action Nut
The rapid action feature on this vise allows you to quickly open and close the vise. Simply pull up on the handle and hold, this will cause the vise nut to disengage. Adjust the jaws to the appropriate opening and let go of the handle. A simple turn of the main handle will engage the screw and tighten the vise on the product.
4. Pre-Drilled Holes
This vise comes with several pre-drilled holes for quick sturdy mounting to your workbench. The vise also features holes that are pre-drilled into the jaws of the vise to allow for the mounting of wood facings.
Product packing:
* Export Carton or as request.
Product shipment:
* Port of loading: Qingdao, China.
* Delivery time: 45 days after payment.

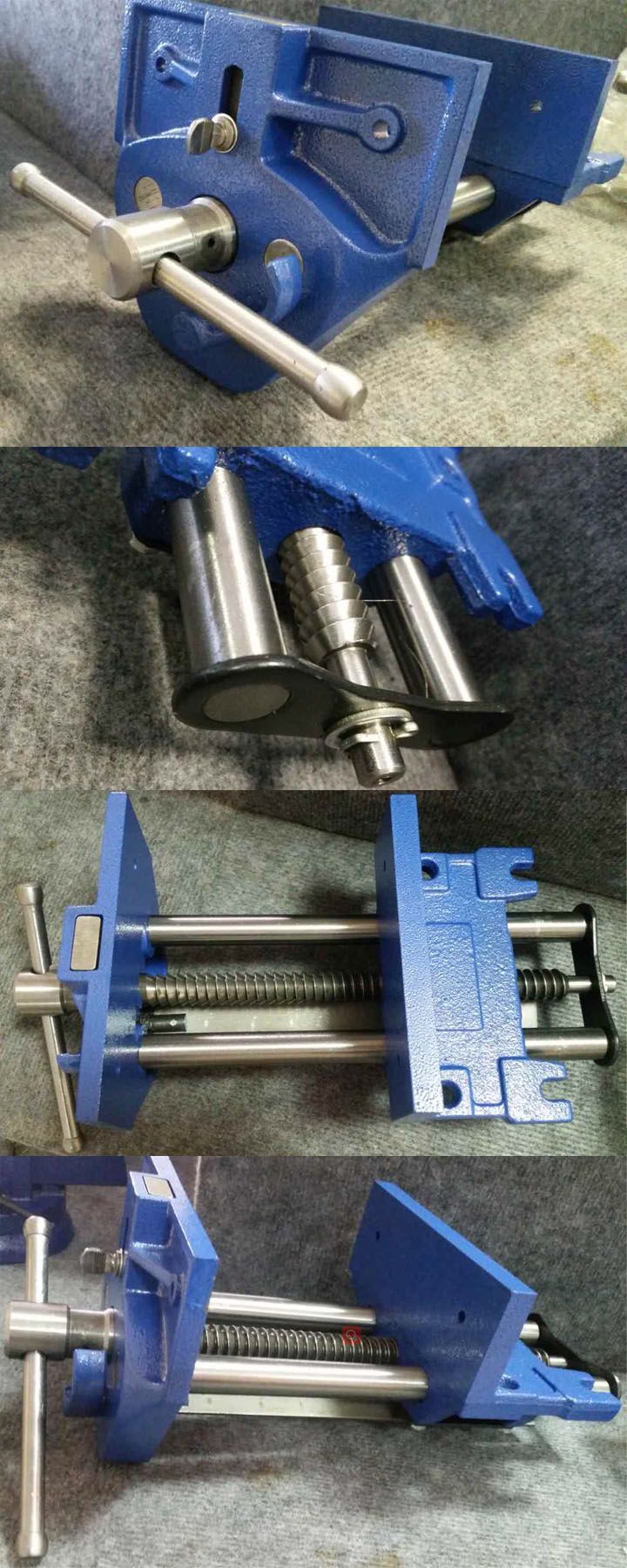

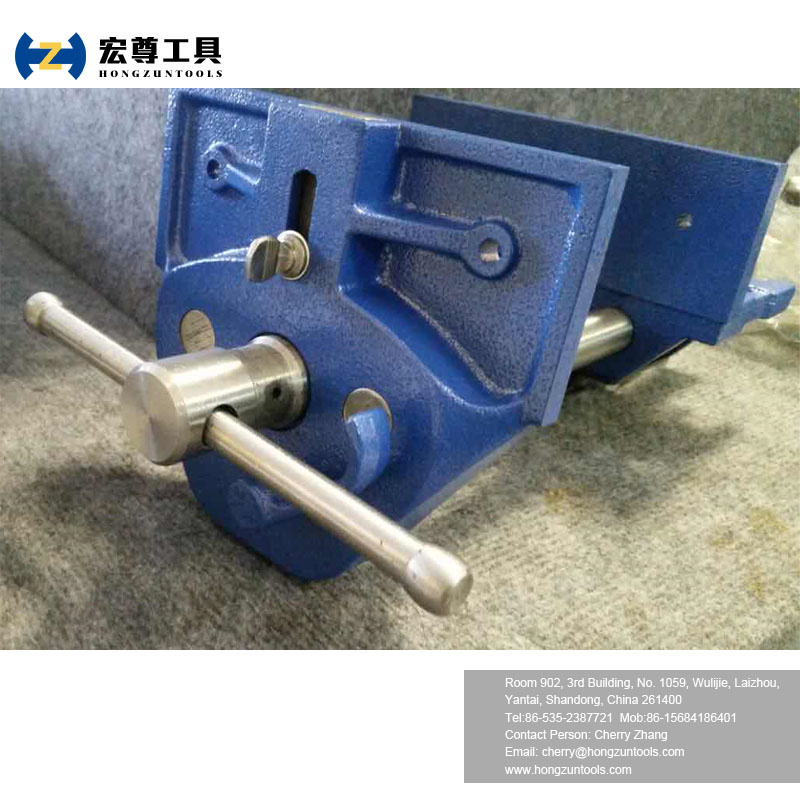

Product pictures:

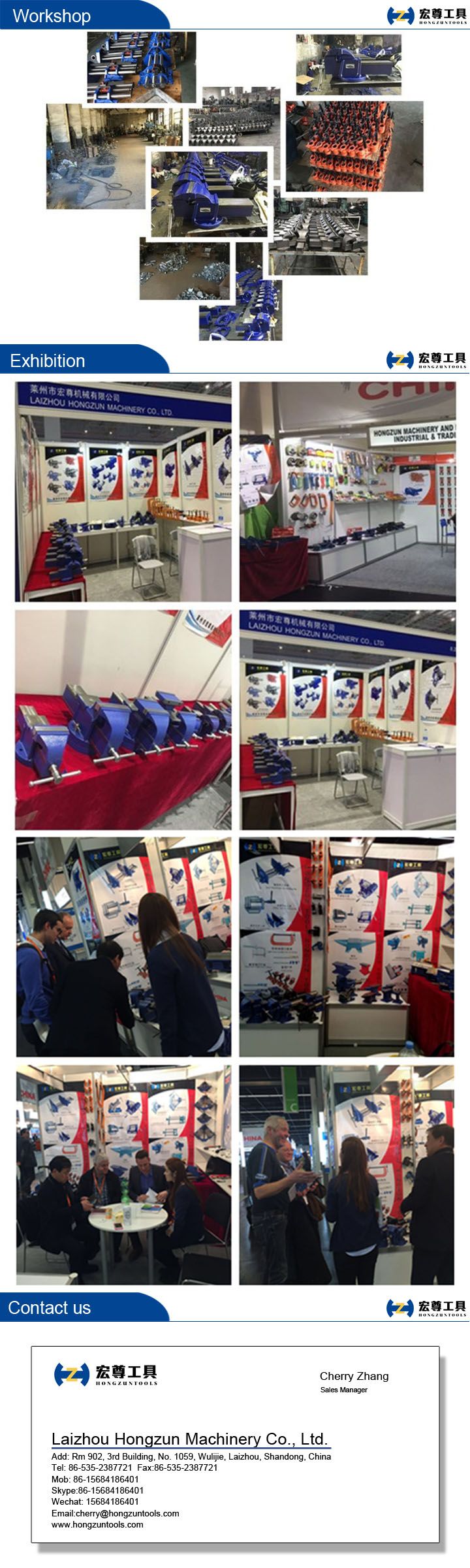

Laizhou Hongzun Machinery Co.,Ltd. is a professional manufacturer of bench vise, machine vise, woodworking clamp, fastener, hand tools, hardware tools and woodworking machine etc since 2002.
The annual output of bench vise amounts to 30,000 sets.
We are located in Laizhou Shandong province, and it only takes 2 hours to Qingdao airport.
Welcome to our factory.
Laizhou Hongzun Machinery Co., Ltd. Lies to beautiful Laizhou in Shandong province. It only takes two hours to Qingdao airport. We have been engaged in the hardware industry more than 10 years.
Our company is professional manufacturer of tools, hand tools, hardware, hardware tools, clamp, heavy duty clamp, bench vise, bench vice, table vise, machine vise, workbench vises, drill press vise, wood vise, pipe vise, clamp-on vises, shop vise, table clamp, pipe clamp, heavy duty clamp, craftsman vice, construction tools, garden tools, holder, woodworking clamp, woodworking machine and metalworking machine.
An annual output of various bench vise 30, 000 sets, woodwording machine ande metalworking machine more than 10, 000 sets.
The products enjoy a hige reputation in China and have exported to America, Europe, Middle East and Southeast Asia and many other countries and regions and are highly praised by the users.
We always give first priorly to product quality. We are willing to meet our customer demands by providing them with quality product and excellent service.
Welcome to our factory.
