| Prod Model: |
T27 |
| Grinding Wheel For Metal: |
180X6X22.23 |
| Material: |
Alumina |
| Abrasive: |
Normal Abrasive |
| Shapes: |
With Handle |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Tool Grinding |
Product Description

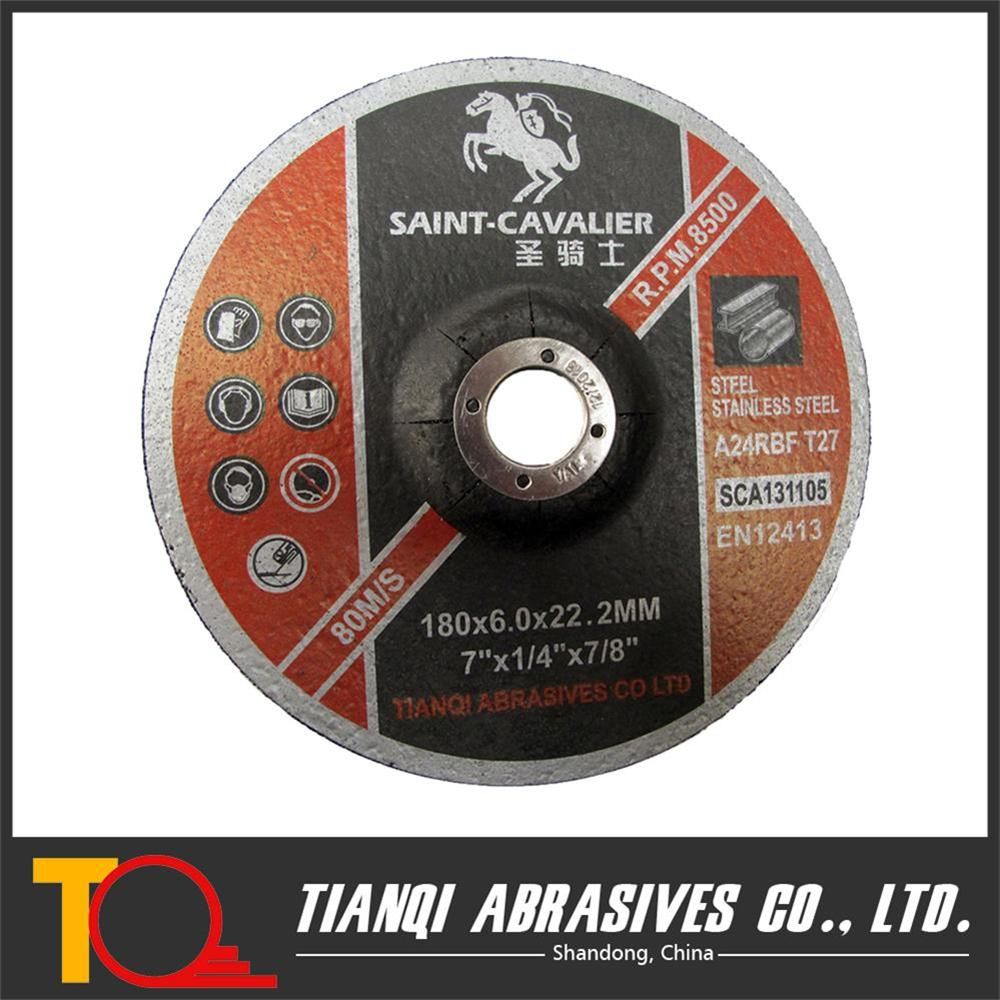

Depressed Center Grinding Wheel for Metal
A-Aluminum oxide grain, Zirconia materia, Special material
Internally reinforced and Externally reinforced for increased safty on side load pressure
Main application-Ferrous metals ( structural steel, iron, welds, etc)
| CODE No. | Size (Mm) | Specification | Type | M/S | R.P.M |
| | 100 x 6.0 x 16.0 | A 24 R BF | T-27 | 80 | 15,300 |
| | 115 x 6.0 x 22.2 | A 24 R BF | T-27 | 80 | 13,300 |
| | 125 x 6.0 x 22.2 | A 24 R BF | T-27 | 80 | 12,200 |
| | 150 x 6.0 x 22.2 | A 24 R BF | T-27 | 80 | 10,200 |
| | 180 x 6.0 x 22.2 | A 24 R BF | T-27 | 80 | 8,500 |
| | 230 x 6.0 x 22.2 | A 24 R BF | T-27 | 80 | 6,600 |
Depressed Center Grinding Wheel for Stainless Steel
Abrasive Material: White Aluminum Oxide
Type: Depressed Center Grinding Disc ( T27 )
Application: For Stainless steel , lsteel
CODE No. |
Size (Mm) |
Specification |
Type |
M/S |
R.P.M |
|
100 x 6.0 x 16.0 |
WA 24 R BF |
T-27 |
80 |
15,300 |
|
115 x 6.0 x 22.2 |
WA 24 R BF |
T-27 |
80 |
13,300 |
|
125 x 6.0 x 22.2 |
WA 24 R BF |
T-27 |
80 |
12,250 |
|
150 x 6.0 x 22.2 |
WA 24 R BF |
T-27 |
80 |
10,200 |
|
180 x 6.0 x 22.2 |
WA 24 R BF |
T-27 |
80 |
8,500 |
|
230 x 6.0 x 22.2 |
WA 24 R BF |
T-27 |
80 |
6,650 |
Depressed Center Grinding Wheel for Stone and Foundry
Abrasive Material: Silicon carbide
Type: Depressed Center Grinding Disc ( T27 )
Application: For grinding stone, masonry, concrete, FOUNDRY and non-ferrous metals.
CODE No. |
Size (Mm) |
Specification |
Type |
M/S |
R.P.M |
|
100 x 6.0 x 16.0 |
C 24 R BF |
T-27 |
80 |
15,300 |
|
115 x 6.0 x 22.2 |
C 24 R BF |
T-27 |
80 |
13,300 |
|
125 x 6.0 x 22.2 |
C 24 R BF |
T-27 |
80 |
12,250 |
|
180 x 6.0 x 22.2 |
C 24 R BF |
T-27 |
80 |
8,500 |
|
230 x 6.0 x 22.2 |
C 24 R BF |
T-27 |
80 |
6,650 |
Depressed Center ZA Grinding Wheel
Abrasive Material:Zirconia Aluminum Oxide
Type: Depressed Center Grinding Disc ( T27 )
Application: For ferrous metals, stainless steel, casting.
With high performance, long life
CODE No. |
Size (Mm) |
Specification |
Type |
M/S |
R.P.M |
|
115 x 7.0 x 22.2 |
ZA 24 T BF |
T-27 |
80 |
13,300 |
|
180 x 7.0 x 22.2 |
ZA 24 T BF |
T-27 |
80 |
8,500 |
|
230 x 7.0 x 22.2 |
ZA 24 T BF |
T-27 |
80 |
6,650 |
Grinding Disc for Steel
Material: Aluminum Oxide
FEATURES
-High performance, good removal rates and long life. Great solidity for heavy-duty applications. High stability for grinding. Depressed Center.
EN 12413*80m/s.
A24RBF
For alloy steels and non-alloy, mainly on surface grinding, welding lines, edge and carbon steel in general.
| Code | Diameter x Thickness x Hole | Speed | P/box |
| SC1006016A | 100x6x16mm. | 4x1/4x5/8 inches | 15,000 | 25 |
| SC1156022A | 115x6x22.2mm. | 4-1/2x1/4x7/8 inches | 13,000 | 25 |
| SC1256022A | 125x6x22.2mm. | 5x1/4x7/8 inches | 12,200 | 25 |
| SC1506022A | 150x6x22.2mm. | 6x1/4x7/8 inches | 10,100 | 25 |
| SC1806022A | 180x6x22.2mm. | 7x1/4x7/8 inches | 8,500 | 25 |
| SC2306022A | 230x6x22.2mm. | 9x1/4x7/8 inches | 6,500 | 25 |
Grinding Disc for Stainless Steel
Material: Premium Aluminum Oxide
FEATURES
-Soft disc with high grinding power. Fast and cool cut. Material is not colored during operation.
EN 12413*80m/s.
WA24RBF
For stainless steel, alloy materials, naval steel in general grinding works, and on welding lines and surface grinding.
| Code | Diameter x Thickness x Hole | Speed | P/box |
| SC1006016IN | 100x6x16mm. | 4x1/4x5/8 inches | 15,000 | 25 |
| SC1156022IN | 115x6x22.2mm. | 4-1/2x1/4x7/8 inches | 13,000 | 25 |
| SC1256022IN | 125x6x22.2mm. | 5x1/4x7/8 inches | 12,200 | 25 |
| SC1506022IN | 150x6x22.2mm. | 6x1/4x7/8 inches | 10,100 | 25 |
| SC1806022IN | 180x6x22.2mm. | 7x1/4x7/8 inches | 8,500 | 25 |
| SC2306022IN | 230x6x22.2mm. | 9x1/4x7/8 inches | 6,500 | 25 |
| SOFT HARDNESS-STAINLESS STEEL |
Founded in Zibo city Shandong province in year 1999, TIANQI ABRASIVES CO Ltd has been one leading manufacturer of professional extra thin cutting disc, cut-off wheels and grinding wheels in China.
With the ISO9001 certificate, German MPa certificate, EN12413 standard and more than 15 years experience, TIANQI become the global supplier of cutting disc and grinding discs.
To use the high quality material, make with auto pressing equipment, producing with years experience and high tech., control with complete and strict quality system, these have permitted TIANQI Abrasives to offer the high and steady quality and to get good reputation from all over the world.
Now TIANQI owns more than 35 producing equipments and 110 workers to make and curve and testing the discs, in our factory. Every day, we could make more than 100, 000 pieces disc to the world markets. Tianqi progressed year by year together with our business partner based on advanced technique, ongoing research and years of experience.
Performance and safety is our goals. Tianqi focuses on producing high quality so good performance products. The reinforced cutting wheel and grinding disc have gained the international approving, and become one of the main suppliers of Europe and American markets.
TIANQI was founded for producing professional Resin bonded cut-off wheel and grinding wheel, and now the brand " Saint-Cavalier" And " Briter" Already become the preferred choice in working for metal, structural steel, iron, weld, foundry, stainless steel, aluminum, concrete, masonry, brick, block, stone, and other industries.
At present, TIANQI abrasives offer the abrasive disc to more than 20 countries all over the world, the main markets are European and American markets. Our factory is near Qingdao port and Jinan airport, welcome to our company for a visit and guide!
