| Prod Model: |
All sizes |
| Working Fields: |
Tools, Molds, Bearing, Compressor, Ceramics and Ma |
| Semi Finish Grinding: |
Grit 140/170---230/270 |
| Type: |
1A1, 1V1, 1A1r, 4A2, 6A2, 9A3, 11V9, 12V9, 14A1 |
| Polishing: |
Grit W40 to Fine Powder |
| Bond: |
Resin,Vitrified,Metal, Electroformed Bond |
| Concentration: |
50,75,100,125, etc... |
| Delivery Time: |
7-10 Days |
| The Ranges: |
Diamond & CBN Wheels, Diamond & CBN Cutting Blades |
| General Coarse Grinding: |
Grit 80/100---120/140 |
| Fine Grinding: |
Grit 270/325---325/400 |
Product Description
Description:
1- Type and Code
2- Wheel Grit Users according to their requirement of workpiece roughness, kinetic energy and velocity of processing machine tool and the material properties of workpiece to select the grit size. General coarse grinding choose 80/100 --- 120/140; Semi finish grinding choose 140/170 --- 230/270; Fine grinding choose 270/325 ---325/400; Polishing choose W40 to fine powder. Table of Grain size and roughness| Range of roughness (Ra) Unit:μm |
| Grain size | Resin bond (B) | Metal bond (M) |
| 80/100 ~100/120 | --- | 3.2---1.6 |
| 100/120~170/200 | 0.8---0.4 | 1.6---0.8 |
| 170/200~230/270 | 0.4---0.2 | 0.8---0.4 |
| 325/400~M12/22 | 0.2---0.1 | |
| M10/20~M3/6 | 0.1---0.05 | |
| M3/6~M0/1 | 0.05---0.025 | |

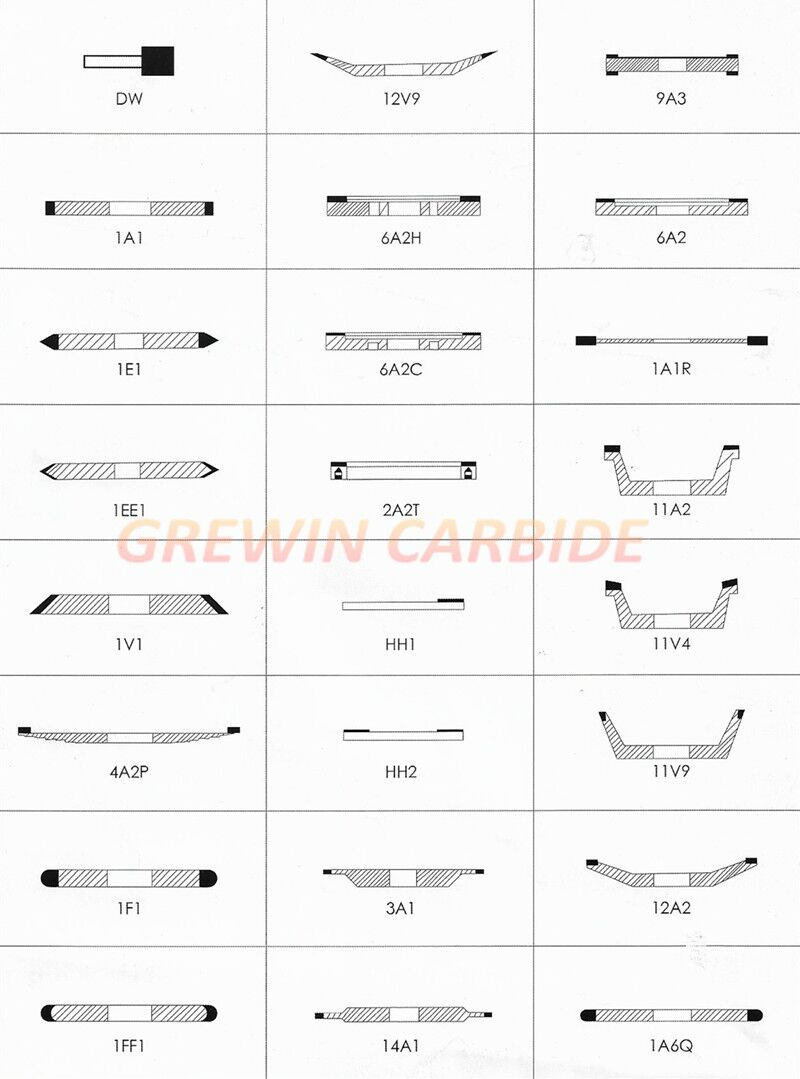

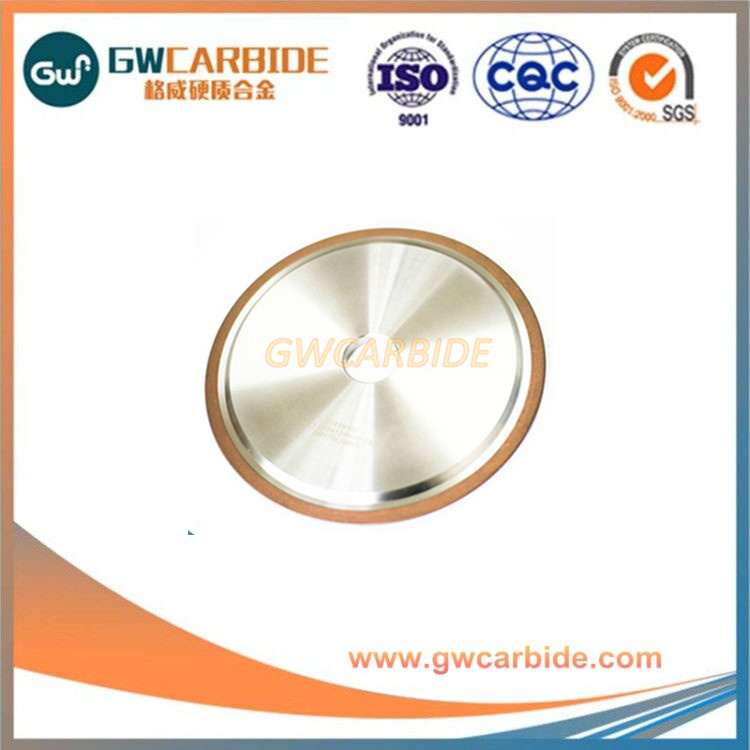

3- Conventional Grinding Wheel Variety * Shape code: 1A1- Parallel grinding wheel: suitable for all types of cylinder grinding, surface and end face grinding.
- Centerless grinding wheel: suitable for processing the outer circle of bar and thread. Divided into rough grinding, precision grinding and polishing.
* Shape code: 2A2- Cup & ring type grinding wheel: applicable to the processing of various materials of the end surface grinding, can be processed two end face at the same time.
* Shape code: 12C2- Abrasive disc: It is suitable for various materials' grinding and chamfer.
* Shape code: 6A2- Cup-shaped grinding wheel: Suitable for all types of surface and end grinding.
* Shape code: 4B1, 1V1- Single bevel wheel: suitable for precision grinding and notching.
* Shape code: 1F1, 1FF6- Arc grinding wheel: suitable for various types of molding grinding.
* Shape code: 11V9- Bowl-shaped grinding wheel: Suitable for end, flat and edge grinding of cutter.
* Shape code: 12A2, 12V9, 12V2- Dish-shaped grinding wheel: Suitable for the cutting tool's end face, surface and the cutter edge grinding.
4- How to buy our grinding wheel
According to Customers their own processing products and the requirements of the different machines, choose different shape of grinding wheel; According to the requirements of the processing efficiency, choose different bonded grinding wheel; And according to the different roughness requirements, choose a different abrasive particle size.
While ordering the grinding wheel, please tell us the grinding wheel drawings, processing materials, processing accuracy requirements, processing roughness requirements, as well as the use of grinding wheel so that we can design and manufacture more suitable for your need of our grinding wheel products.
