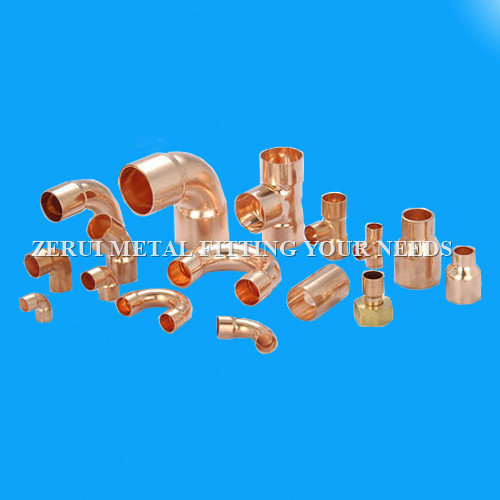

ACR Copper Pipe Fittings for Refrigeration
| Price: |
US $ 0.1-6.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
ZR-165 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cu: |
99.90% Minimum |
| P: |
0.015-0.040% |
| Material: |
Copper |
| Connection: |
Welding |
Product Description
ACR Copper Pipe Fittings for Refrigeration1.
Production Specifications
Specifications:Alloy: C12200, Cu-DHP
Size range: OD size from 1/4" to 4-1/8" (from 6mm to 108mm)
Type: CxC, FTGx C
Marking: our brand name + size

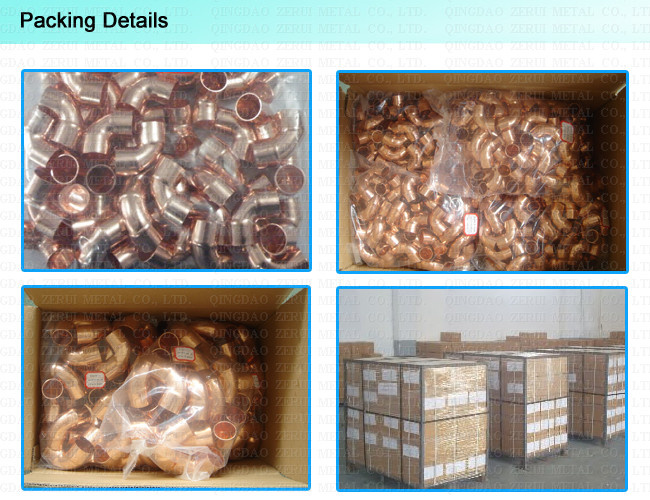

Packing: Sealed by plastic bag, packing in strong sea worthy carton and palletized
Standard: ASME B16.22, EN 1254-1
Application: for plumbing, refrigeration and medical gas
Delivery time: 4-5 weeks Copper Fittings Dimensions| Nominal Size | Male End (inch) | Female End (inch) | Wall Thickness
(inch) |
| Outside Diameter | Length | Inside Diameter | Depth |
| Min. | Max. | Min. | Min. | Max. | Min. | Min. |
| 1/4" | 0.373 | 0.376 | 0.38 | 0.377 | 0.381 | 0.31 | 0.023 |
| 3/8" | 0.497 | 0.501 | 0.44 | 0.502 | 0.506 | 0.38 | 0.026 |
| 1/2" | 0.622 | 0.626 | 0.56 | 0.627 | 0.631 | 0.50 | 0.029 |
| 5/8" | 0.747 | 0.751 | 0.69 | 0.752 | 0.756 | 0.62 | 0.031 |
| 3/4" | 0.872 | 0.876 | 0.81 | 0.877 | 0.881 | 0.75 | 0.033 |
| 1" | 1.122 | 1.127 | 0.97 | 1.128 | 1.132 | 0.91 | 0.040 |
| 1-1/4" | 1.372 | 1.377 | 1.03 | 1.378 | 1.382 | 0.97 | 0.044 |
| 1-1/2" | 1.621 | 1.627 | 1.16 | 1.628 | 1.633 | 1.09 | 0.051 |
| 2" | 2.121 | 2.127 | 1.41 | 2.128 | 2.133 | 1.34 | 0.059 |
| 2-1/2" | 2.621 | 2.627 | 1.53 | 2.628 | 2.633 | 1.47 | 0.067 |
| 3" | 3.121 | 3.127 | 1.72 | 3.128 | 3.133 | 1.66 | 0.075 |
| 3-1/2" | 3.621 | 3.627 | 1.97 | 3.628 | 3.633 | 1.91 | 0.086 |
| 4" | 4.121 | 4.127 | 2.22 | 4.128 | 4.133 | 2.16 | 0.096 |
Copper Fittings Internal Working Pressure| Nominal Size | Internal Working Pressure (psi) |
| -20-100°F | 150°F | 200°F | 250°F | 300°F | 350°F | 400°F |
| 1/4" | 912 | 725 | 729 | 729 | 714 | 608 | 456 |
| 3/8" | 779 | 662 | 623 | 623 | 610 | 519 | 389 |
| 1/2" | 722 | 613 | 577 | 577 | 565 | 481 | 361 |
| 5/8" | 631 | 537 | 505 | 505 | 495 | 421 | 316 |
| 3/4" | 582 | 495 | 466 | 466 | 456 | 388 | 291 |
| 1" | 494 | 420 | 395 | 395 | 387 | 330 | 247 |
| 1-1/4" | 439 | 373 | 351 | 351 | 344 | 293 | 219 |
| 1-1/2" | 408 | 347 | 327 | 327 | 320 | 272 | 204 |
| 2" | 364 | 309 | 291 | 291 | 285 | 242 | 182 |
| 2-1/2" | 336 | 285 | 269 | 269 | 263 | 224 | 168 |
| 3" | 317 | 270 | 254 | 254 | 248 | 211 | 159 |
| 3-1/2" | 304 | 258 | 243 | 243 | 238 | 202 | 152 |
| 4" | 293 | 249 | 235 | 235 | 230 | 196 | 147 |
2.
3.
4.
5.
6.
Qingdao ZeRui Metal Co., Ltd. is one of the high-tech manufacturers specializing in producing all kinds of air-conditioning and refrigeration copper tubes, environmental friendly copper water tubes and copper fittings. Our main products are: Insulated copper tubes, copper pancake coils, LWC copper coils, copper water tubes, air-conditioning straight tubes and prelagged copper tubes. Our annual production has got to 10000 metric tons. Our products are widely used in air-conditioning and refrigeration, water and gas, heating, electrical and other fields. All our products are produced strictly as per ASTM standard, EN standard, JIS standard, AS standard and GB/T standard. Our products are selling well in more than 20 Countries, some of them has met warm reception in USA, Canada, Chile, Peru, Albania, Lebanon, UAE, etc.
We have 12 years of production and management experience on producing copper tubes. With modernized production lines, first-class testing facilities, we have got ISO 9001: 2008 certificate, CE certificate, RoHS certificate. We as always adhere to our operation philosophy "survival for quality, develop for integrity, pursue the innovation and customer satisfaction". We keep focusing on expand our scale, strengthen our brand to realizing our strategic goal of being the leader in HVACR copper tube fields in the world. We shall supply the best satisfied copper tube products, the most attentive and excellent service to our customers around the world.
We warmly welcome customers to visit our factory and cooperate with us. We believe we can cooperate further and development well!
