| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | R10P |
|---|---|
| Certificate: | Ce, RoHS,SGS |
| Maximum Spl: | 118dB(Continuous) 124dB (Peak) |
| Driver Number: | Lf: 1X10 Inch; Hf: 1X1.75 Inch |
| Frequency Response: | 55Hz-18kHz(+-3dB) 50Hz-20kHz(-10dB) |
| Nominal Coverage(-6dB): | 80 Degree(H) 50degree(V) |
| Amplifier Module: | Double Channels 700W |
| Input Connectors: | Male XLR and Female XLR(Neutrik) |
| Output Electric Circuit: | D Type Circuit |
| Coolant System: | Fans From Back Form Front, Forced Cooling |
| Weight: | 24kg |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | SGS, ISO9001 |
| THD: | <0.005% |
| Monitor: | None |

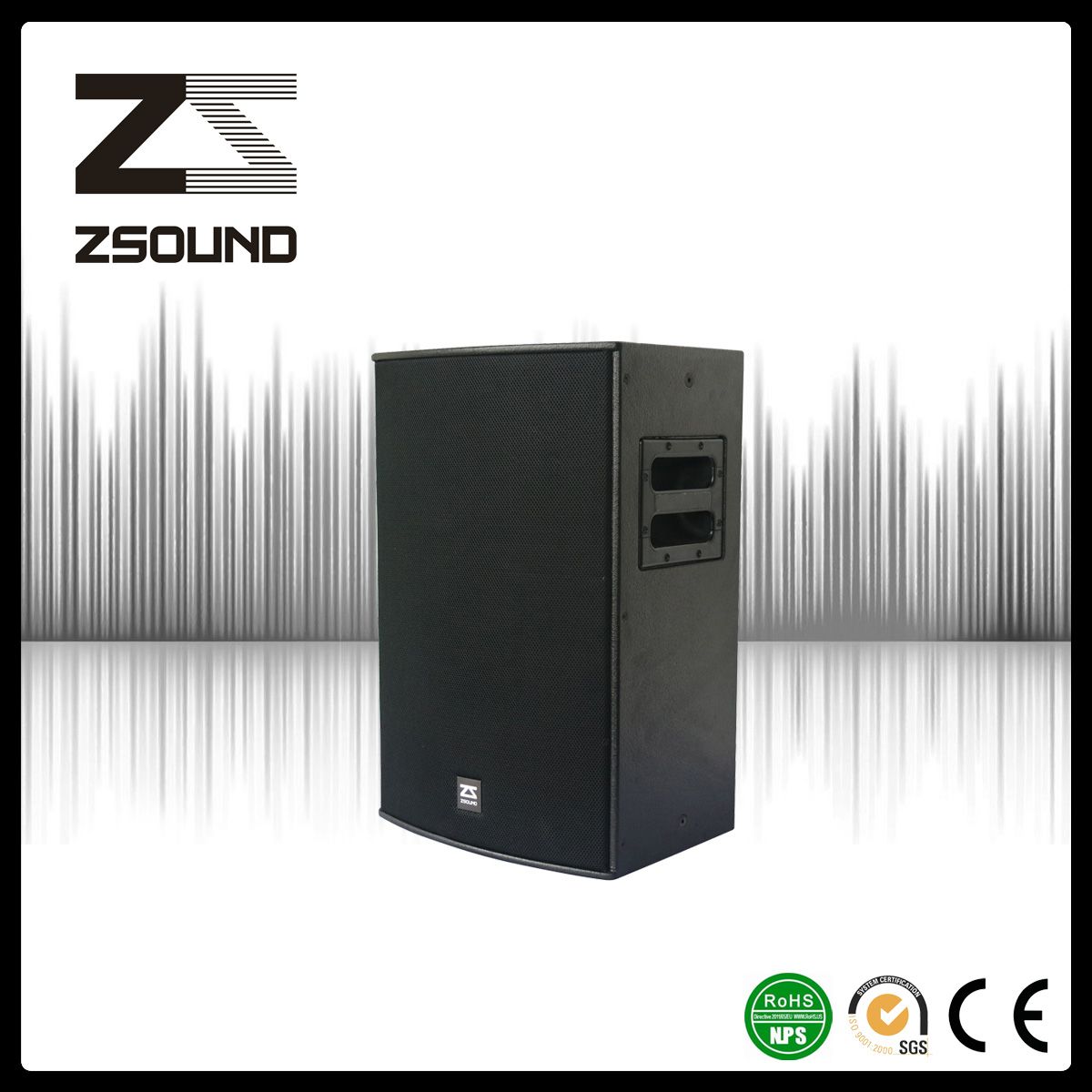

ZSound R10P Pro Active Monitor Loudspeaker with Amplified Power
R Series is two full range selfpower speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80 degree×50 degree. And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input. Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall and small hall show.
Feature:
Two way selfpower full range speaker
Elastic bass;
Long throw rubber edge LF driver;
Rotatable 80 degree x 50 degree directivity horn;
Specification:
| Frequency range(include powered module) | 55 Hz ~ 18KHz (+-3 dB ) 50 Hz ~ 20KHz (-10dB ) |
| Normal power (AES) | 400W |
| Driver | LF 1×10" (75mm voice coil) woofer HF 1×1.75" (1"throat) exist compression drive(44mm voice coil) |
| Nominal Coverage | 80 degree × 50 degree |
| MAXIMUM SPL | 118dB SPL,124 dB SPL peak |
| Voltage requirement | 100V-120V/200-240V~ 50-60Hz |
| Amplifier module | Double channels 700W |
| Total harmonic distortion (1KHz, full frequency 4Ω) | ≤1% |
| SNR | 102.5 dB |
| Audio in gain (1KHz 8Ω) | 23 dB |
| Mic in gain (1KHz 8Ω) | 56 dB |
| Input connectors (per.ch) | male XLR & female XLR (Neutrik) |
| Input impedance | 20K ohm balanced/10K ohm unbalanced |
| Output circuit style | D class |
| Cooling system | Fan from back from front, Forced cooling |
| PHYSICAL DATA | |
| Dimension(H×W×D) | 560×360×410(mm) |
| Weight (include powered module) | 24(kg) |
| Rigging | 17×M8 top +35mm bottom×1 |
| Material of enclosure | 15mm,18mm plywood |
| Surface | Black water paint |
| Grille | Black epoxy mesh grille with acoustically |
Applications:
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

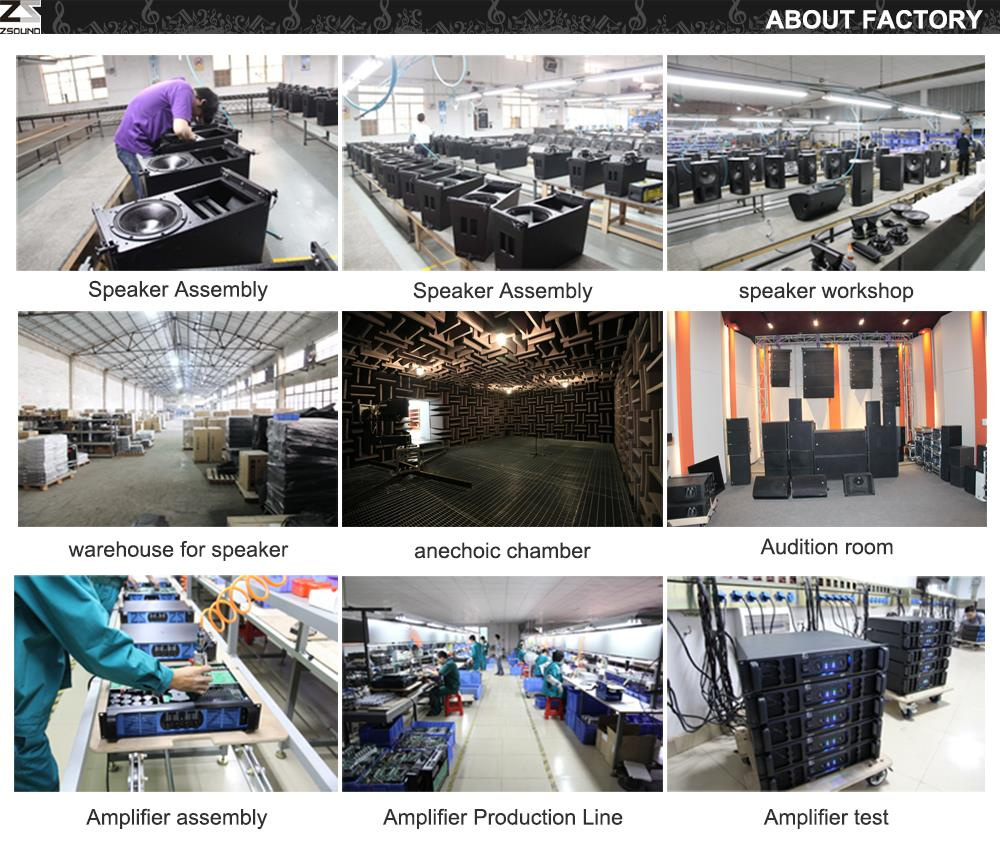

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
