| Prod Model: |
XL-620 |
| Rated Power: |
60W/4ohm |
| Frequency Response: |
55Hz-18kHz |
| Max Spl: |
78dB |
| Rated Input Level: |
Microphone 15 Mv |
| Product Size: |
140*84*700 |
| N.G: |
4.5 Kg |
| Driver: |
4 Inch Bass + 1 Treble |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Karaoke |
| Adjusting Method: |
Touch-Control |
| Sound Channel: |
2.0 |
| Play Frequency: |
Full Range Speaker |
| Structure: |
Bookshelf Speaker |
| SNR: |
81-90dB |
| Display Screen: |
No |

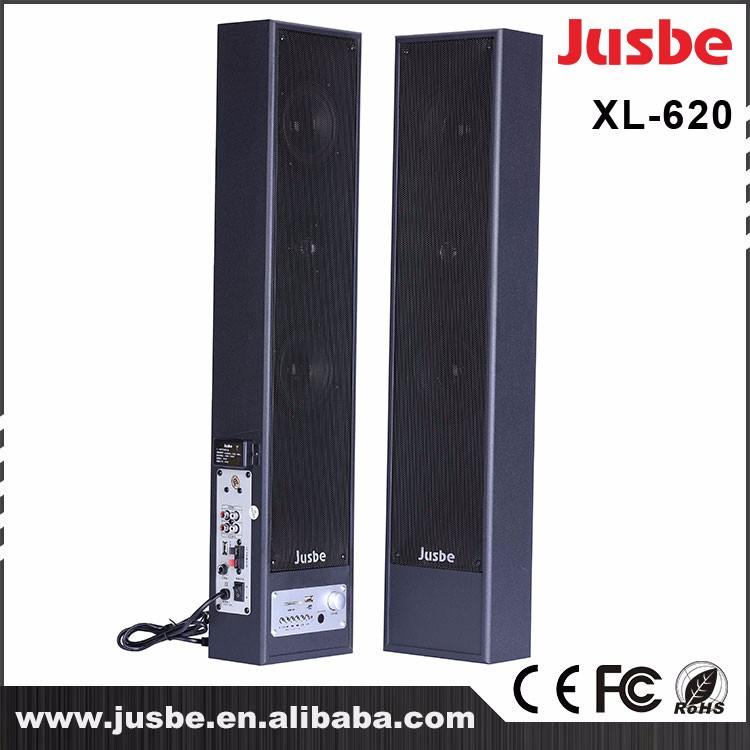

Product Description
Features:★ designed for the electronic whiteboard and design, with easy installation, accurate expression of human voice characteristics;
★ a microphone input (environmental microphone jack comes with DC +6 V power supply);
★ all the way stereo RCA input, all the way stereo RCA line output,
★ MP3 playback, support for high-speed USB2.0, SD / MMC / XD / MS card and other media
★ can switch AM / FM digital tuner;
★ with IR / infrared remote control, can control the volume size / up and down / mute, automatically search for available radio stations;
★ all the way for USB microphone interface, using USB interface to support 2.4G microphone connection, ready to expand 2.4G microphone to use;
★ standard wall mounting accessories, lifting simple and convenient;
The main technical parameters:
Rated power: 60W;
Rated impedance: 4Ω;
Frequency response: 68Hz-18kHz;
Drive: 4 inch bass × 2, treble × 1;
Rated input level: microphone 15mV (unbalanced);

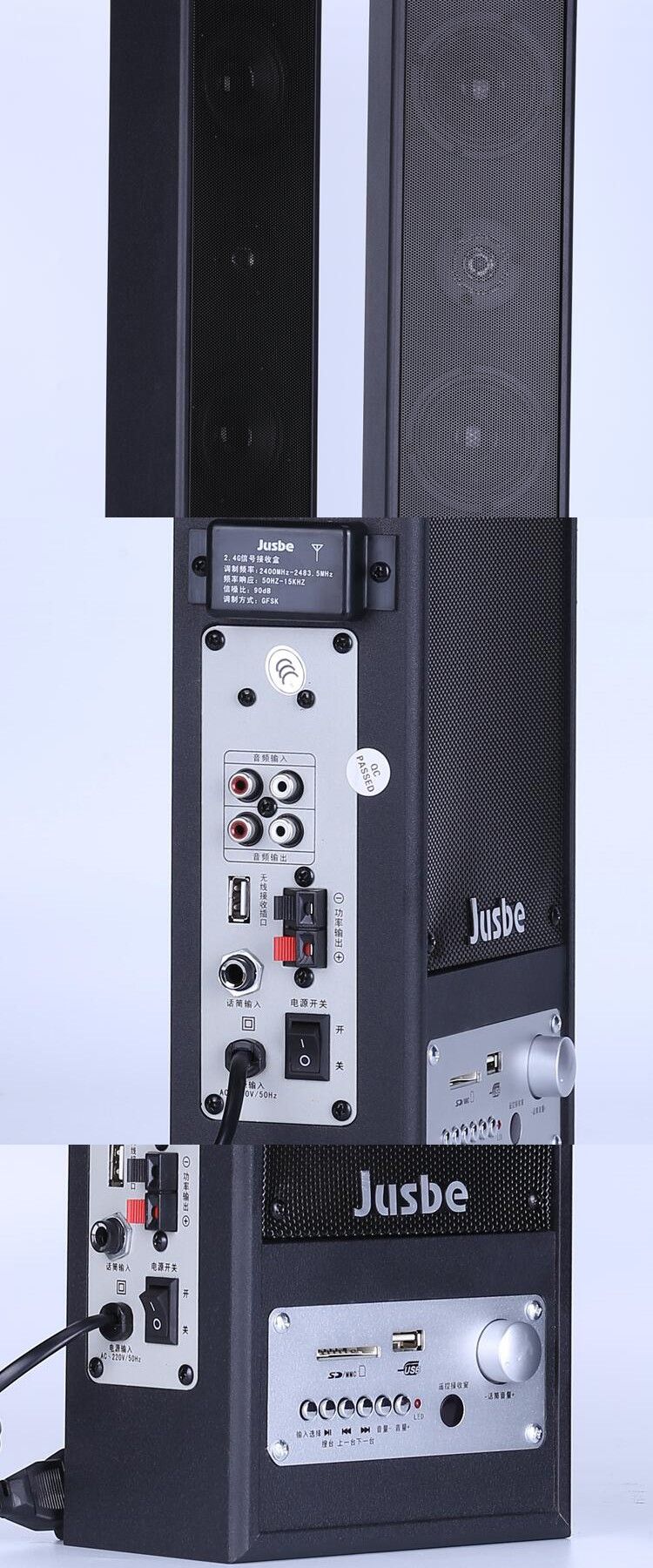

Input: 1 microphone input interface, 1 set of stereo input;
Sensitivity: <500MV;
Signal to noise ratio: 85dB;
Maximum sound pressure level: 78dB;
Resolution: ≥ 40dB;
Box type: inverted phase;
Box and exterior: high density MDF (black)
Box: steel mesh;
Installation: Standard wall mount;
Packaging & Shipping★Product Size: 140 × 84 × 700 (width * thick * high, unit: mm);
★Net Weight: 7.5kg / pair.
★Gross Weight: 8 KG
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Product Name | Hot selling 30w school classroom speaker professional active speaker wall mount |
| Model No. | XL-620 | XL-660 |
| Raterd Power | 60W | 30W |
| Rated input level | microphone 15mV( nonequilibrium ) | microphone 15mV( nonequilibrium ) |
| Rated Impedance | 4Ω |
| Frequency Response | 68Hz-18KHz |
| Driver Unit | 4-inch woofer *2; tweeter *1 | 4-inch woofer *1; tweeter *1 |
| Input | one microphone input; 1 stereo RCA input | one microphone input;1 stereo RCA input |
| Sensitivity | <500MV |
| Max SPL | 78dB |
| SNR | 85dB |
| Stereo Isolation | ≥40dB |
| Exterior | Steel mesh |
| Body style | Inverse-phase type |
| Body Material | High Density Fiberboard |
| Installation | Standard wall rack |
| Color | Black | White |
| Product Size(mm/pc) | 140*84*700 |
| Net Weight | 7.5KG/pair | 6.5KG/pair |
| Optional function | Blue tooth/2.4G |
|
