| Prod Model: |
LA108 |
| Frequency Response: |
80Hz-18kHz(±3dB) 70Hz-20kHz(-10dB) |
| Nominal Coverage: |
100°(H) 10°(V) |
| Sensitivity(@1W/1m): |
97dB |
| Power Rating (AES): |
250W |
| Nominal Impedance: |
16ohm |
| Maximum Spl: |
121dB(Continuous)127(Peak) |
| Lf: |
1*8" Woofer |
| Hf: |
1*1.75" Compression Driver |
| Net Weight: |
20kg |
| Finish: |
Black Water Paint |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.03% |
| Monitor: |
N/a |
Product Description

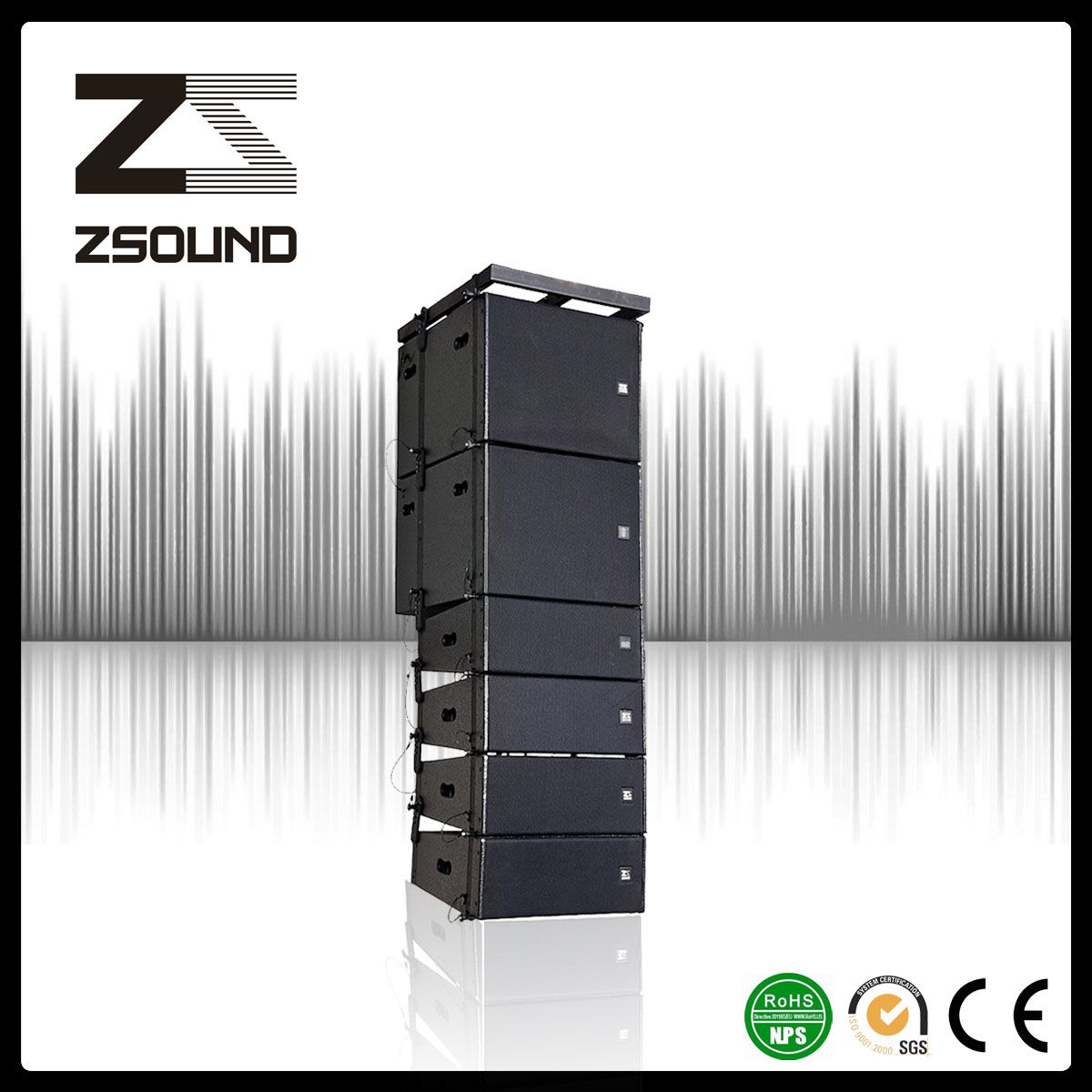

Active 8 inch home theater professional speaker boxLA108 line array is a mini two way system, which provides 70Hz-18KHz frequency response, with flat frequency and phase response. One 44mm compression driver matches one 8" low-frequency driver to generate ultrahigh headroom, effectively decrease the weight of the enclosure, and obviously improve the ratio of SPL and Volume.Feature:
Mini bi-amp system
Ultrahigh headroom
High SPL-to-Volume ratio
Applications:
Touring performance
Stadium
Theater
FOH for Mid-scale sound reinforcement system
| TECHNICAL SPECIFICATION |
| Frequency Response: | 80Hz-18KHz(±3dB) 70Hz-20KHz(-10dB) |
| Nominal Coverage: | 100°(H) 10°(V) |
| Sensitivity(@1w/1m): | 97dB |
| Power Rating (AES): | 250W |
| Nominal impedance: | 16Ohm |
| Maximium SPL: | 121dB(continuous)127(peak) |
| Drivers: | LF 1*8" woofer HF 1*1.75" compression driver |
| |
| PHYSICAL DATA |
| Dimension(H*W*D): | 226*563*458mm |
| Weight: | 20kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker cables: | 2+2- |
| Materials: | 18mm 24mm and 30mm brich multi-plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated foam |
| RIGGING | 0,1 ,2,3,4,5,7.5 ,10degree adjustable |
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
