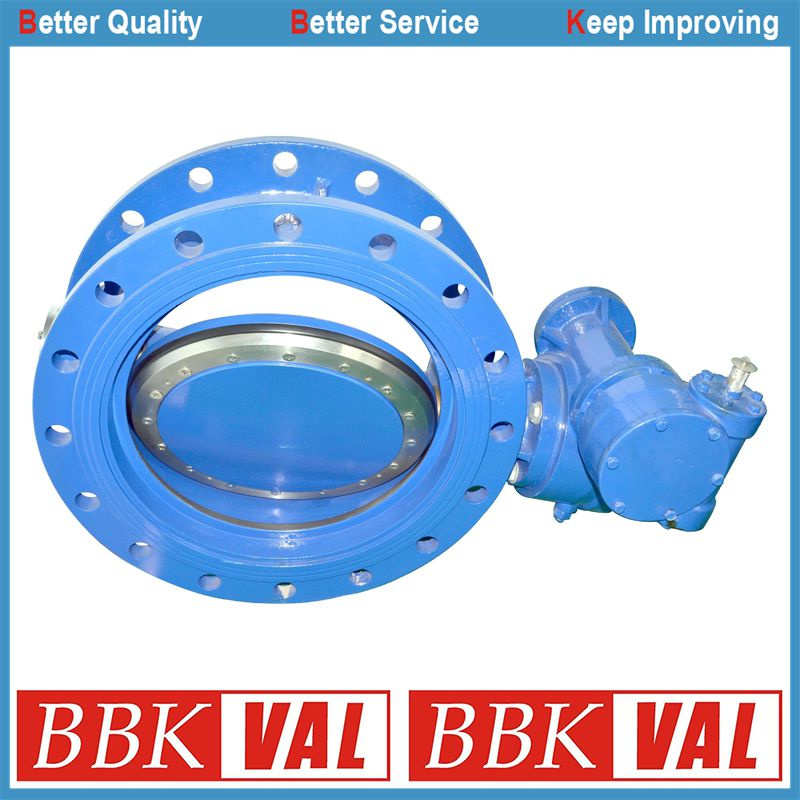

Actuated Double Eccentric Double Flange Butterfly Valve
| Price: |
US $ 10-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BKBEV-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn100-Dn4200 |
| Certificates: |
ISO9001, Ce, Wras |
| Pack: |
Plastic Bag Inside and Plywood Case Outside |
| Production: |
5000PCS/Month |
| Trade Mark: |
Bbkval or OEM or ODM |
| Connection Form: |
Flange |
| Structure: |
Double-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Water Solution |
Product Description
Double Flange Butterfly Valve with Vulcanized Seat
Materials Range: Body:DI/WCB/SS304/SS316
Disc:DI/SS304/SS316/C954
Stem:SS410/SS420/SS416/SS431
Body Seat:SS304/SS316
Seat:EPDM/NBR
Type Available: Flanged type.
Sizes Available: DN50mm to DN3000mm
Pressure Range: PN (MPa): 1.0, 1.6, 2.0, 2.5
Materials Standard: Others on request
Basic Design: BS5155/EN593
Face to Face Dimension: DIN3202 F4, EN558-1 Series 13 &14
Inspection & Testing: API 598,
Flanged End Dimension: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,BS 10 Table D, BS 10 Table E
Top flange: ISO 5211
Suitable Mediums: Fresh water, sea water, gas, oils, acids, alkalis, etc
Suitable Temperature: -26-82C Features:
1. High reliability of strength and rigidity.
2. Adopt double eccentric construction, small friction of seat and torque during opening or closing..
3. The disc is truss framed with plates, lower flow resistance..
4. Good seal function, 0 leakage.
5. The rubber sealing ring could be replaced on pipeline without removing the valve.(DN>=700)
6. The axle bearings are self-lubricated type, oil is not needed, frication drag is small during operation. |
BBK Valve is focus on industrial valves since 2002, specilized in design and manufacture of different valves fittings for water and waste water treatment projects.
BBK Valve, has it's own production factory and specilized sales/after sales office, just to offer stable products quality and specilized sales and after sales services to our valued customers.
BBK Valve, with total 13000 Sqm, and construction around 5000 Sqm. Has the Capability of manufacturing 10, 000PCS of different products, from size DN40-DN3000.
BBK Valve, is ISO9001 certified, CE PED Certified, and WRAS approved for our: Resilient Seated Gate Valves, All Kinds of Butterfly Valves, Dual Disc Check Valves, and YStrainers, from size DN50-600.
With the many years of stable quality, excellent sales services and competitive prices, we now have cooperate with many clients from Russia, Ukrain, United Kingdom, Italy, Spain, Romania, Mideast, South Amreican market.
BBK Valve is trying everyday to be the most reliable, responsible and competitive supplier in its industry.
We believe, with best services, reliable quality, competitive prices, instead of just a supplier, we will be your business partner from China.
