| Price: | US $ 3000-20000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SY knife |
|---|---|
| Color: | as Customer's Requirement |
| Model: | By4X8/160(1)H |
| After-Sales Service: | Engineers Available to Service Machinery Overseas |
| Work Forms: | Automatic |
| Certification: | ISO |

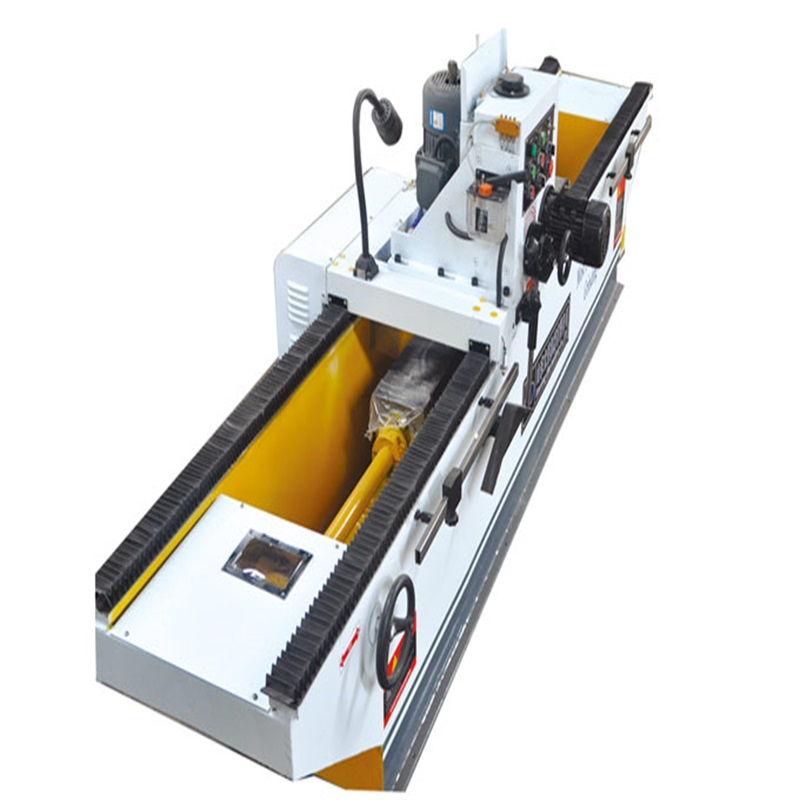

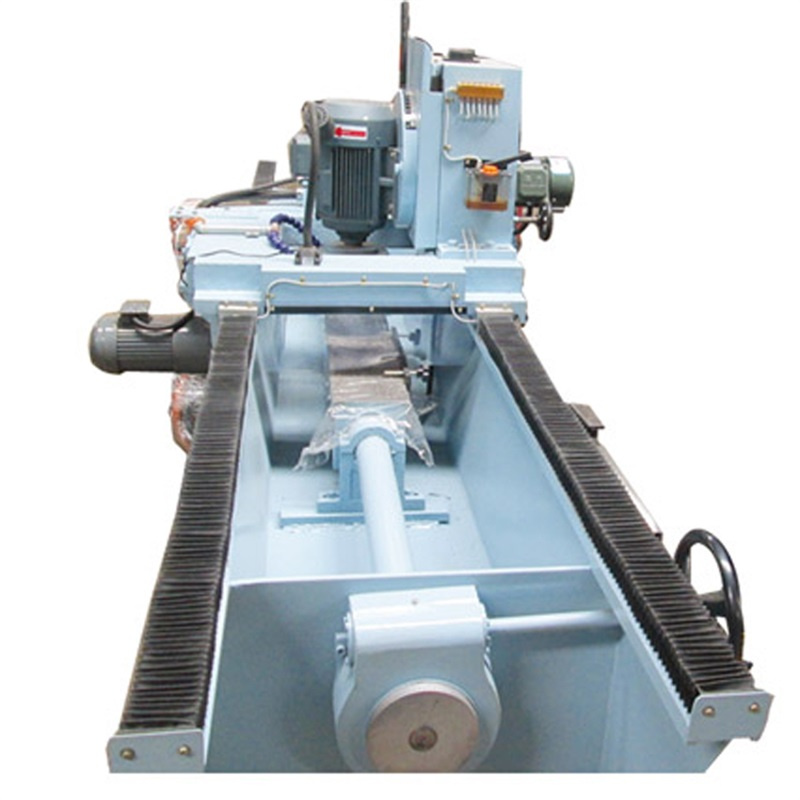

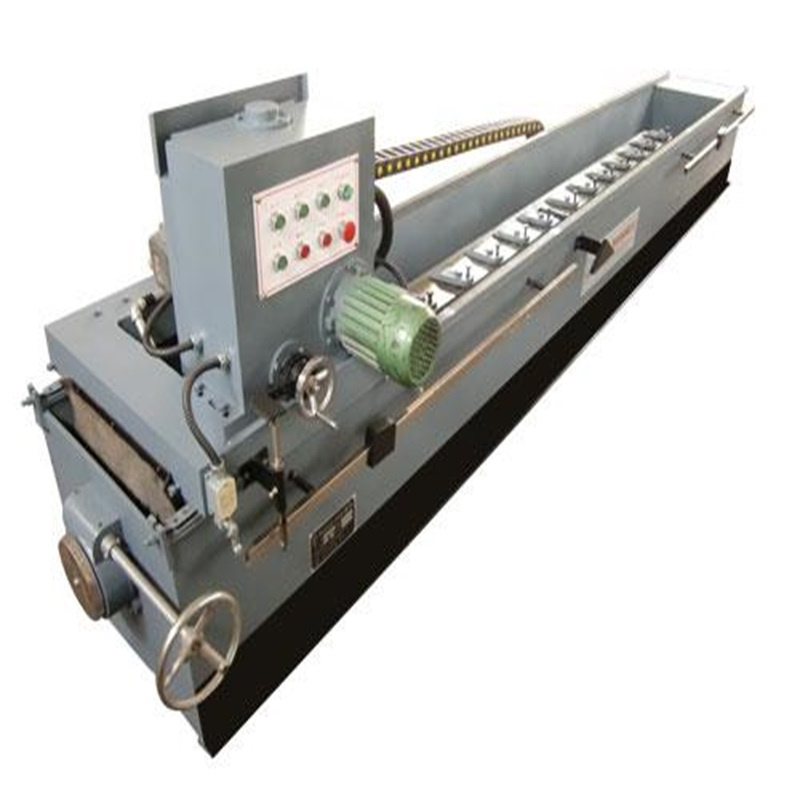

1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife, cutting paper knife ,Shearing Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500-7000mm.
3. This machine's body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the internal stress. The body has high strength and good rigidity. No shrinking in centre of body. the thickness of the steel is 10 or 12mm.
4. The grinding head use the dedicated motor. It can adjusted the gap of axial direction, transmission steady, long life and high accuracy. The vertical movement of the grinding head use the ball screw, to ensure the accuracy.
5. The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
6. The rail use linear guide and ensure the steady horizontal movement of grinding head . the linear guide use TAIWAN HIWIN.
7. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
8. Job accuracy of machine is 0.01mm
1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
3. The machine chooses rack driving, so the grinding head traveling is smoother.
4. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
5. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
6. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.
| SPECIFICATIONS FOR KNIFE RING FLAKER BX4612/5 | |||
| Diameter of knife ring | 1200MM | Qty of knives | 50 pcs |
| Knife length | 463MM | Rotation speed of knife-ring | 50 r/m |
| Rotation speed of impeller | 1420 r/m | Flakes thickness | 0.4-0.8 mm |
| Main motor power | 250 kW | Productivity: | 5000 - 8000 kg/h |
| Weight | 9000kg | Overall dimension | 3615x2595x3000 mm |
