Prod Model: |
Customized |
Standard: |
ISO |
Material: |
Stainless Steel |
Connection: |
Female |
Product Description
Adjustable Metal Hardware American Type Stainless Steel Pipe Hose Clamp
Product: | china manufacturer zinc plated heavy duty steel pipe hose clamp |
Descritpion: | spec. as below |
Usage: | used in daily life, home decoration, and machine ect. |
Payment: | 30% deposit in advance, balance paid before delivery |
Advantage: | 1. competitive price |
2. business Honest. Honest |
3. 20 years' history in the line |
4. we have our own test equipment. save your test cost. |
Amercian type hose clamp offer:
Band's width: 8mm, thickness: 0.6mm and 12.7mm, thickness 0.6 and 0.7mm.
Carbon steel and stainless steel: SS201,SS301,SS304,SS316
Product Description
9mm/12mm Band German Style 304 Stainless Hose Clamp
Hose Clamp are some of the toughest, safest clamps available. They are available in various types of material to suit nearly any type of hose attachment for various applications.
Product name: Germany type hose clamp
Material: Carbon Steel, Stainless steel201,Stainless steel 304
Band width:9mm/12mm
Technic:punch SIZE (inch) | Size (mm) | Band's width | Qty/Ctn | G.W. | Dimension |
mm | pcs | Kgs | cm |
3/8" | 6-10mm | 8 | 2500 | 14 | 39*21*15 |
1/2" | 6-13mm | 2500 | 14.5 | 39*22*16 |
5/8" | 6-16mm | 2500 | 15 | 39*23*17 |
3/4" | 11-20mm | 2500 | 15.5 | 39*24*18 |
7/8" | 13-23mm | 2500 | 16 | 39*25*18 |
1" | 16-25mm | 2000 | 14.5 | 40x26x18 |
1-1/16" | 14-27mm | 2000 | 15 | 40x26x20 |
1-1/4" | 18-32mm | 2000 | 16 | 40x26x24 |
3/4" | 11-20mm | 12.7 | 1000 | 17 | 50x30x16 |
7/8" | 13-23mm | 1000 | 18 | 50x30x16 |
1-1/16" | 14-27mm | 1000 | 19 | 50x30x18 |
1-1/4" | 18-32mm | 1000 | 20 | 50x32x21 |
1-1/2" | 21-38mm | 1000 | 21 | 50x30x21 |
1-3/4" | 21-44mm | 1000 | 22 | 50*30*26 |
2" | 27-51mm | 1000 | 23 | 50*30*28 |
2-1/4" | 33-57mm | 1000 | 24 | 50*30*30 |
2-1/2" | 40-63mm | 1000 | 25 | 50*30*32 |
2-3/4" | 46-70mm | 1000 | 26 | 50*30*34 |
3" | 52-76mm | 500 | 14 | 50x30x24 |
3-1/4" | 59-82mm | 500 | 14.5 | 50x30x37 |
3-1/2" | 65-89mm | 500 | 15 | 50x30x30 |
3-3/4" | 72-95mm | 500 | 15.5 | 50x30x44 |
4" | 78-101mm | 500 | 16 | 50x30x40 |
4-1/4" | 84-108mm | 500 | 16.5 | 50x30x50 |
4-1/2" | 91-114mm | 250 | 9.5 | 50x30x26 |
4-3/4" | 95-120mm | 250 | 10 | 50x30x30 |
5" | 105-127mm | 250 | 10.5 | 50x30x34 |
5-1/4" | 110-134mm | 250 | 11 | 50x30x37 |
5-1/2" | 118-140mm | 250 | 11.5 | 50x30x40 |
5-3/4" | 125-146mm | 250 | 12 | 50x30x43 |
6" | 130-152mm | 250 | 12.5 | 50x30x46 |
6 1/4" | 133-159mm | 250 | 13 | 50x30x48 |
6-1/2" | 143-165mm | 250 | 13.5 | 50x30x50 |
6 3/4" | 146-171mm | 250 | 14 | 50x30x54 |
7" | 155-178mm | 250 | 14.5 | 50x30x56 |

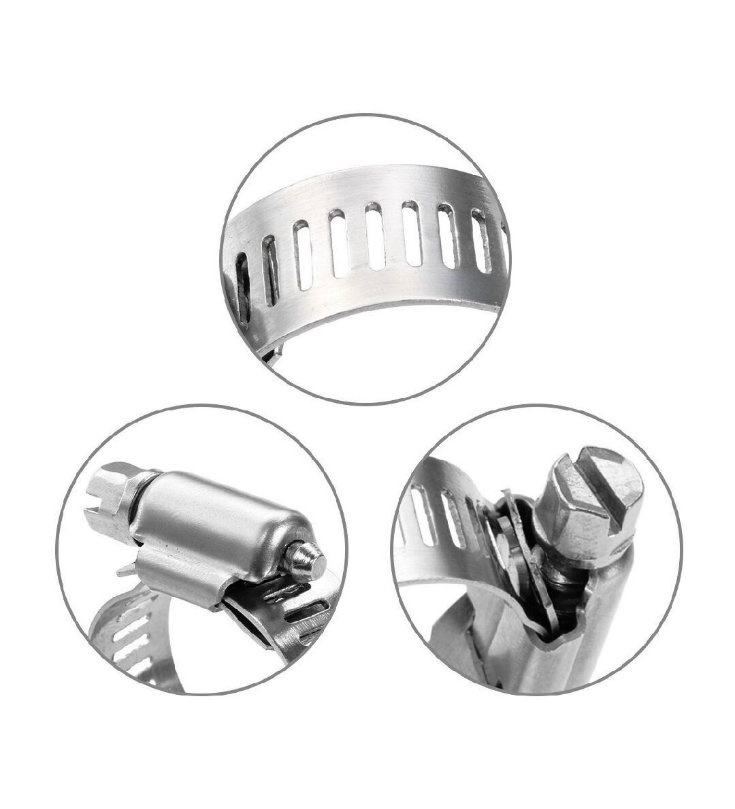

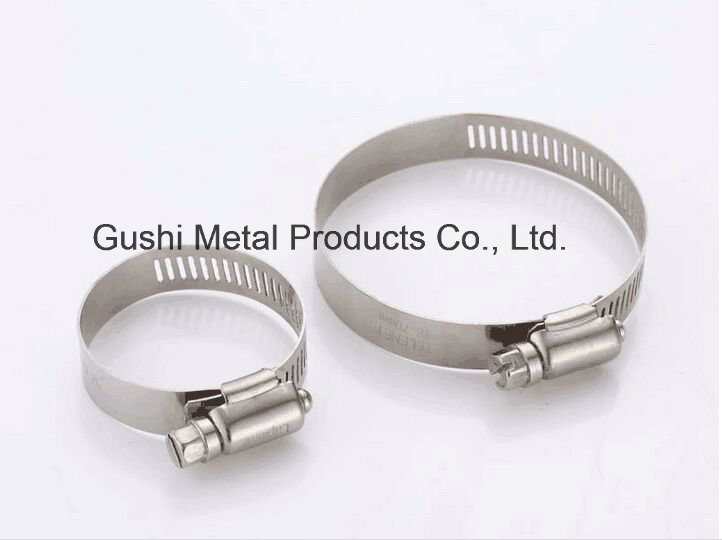

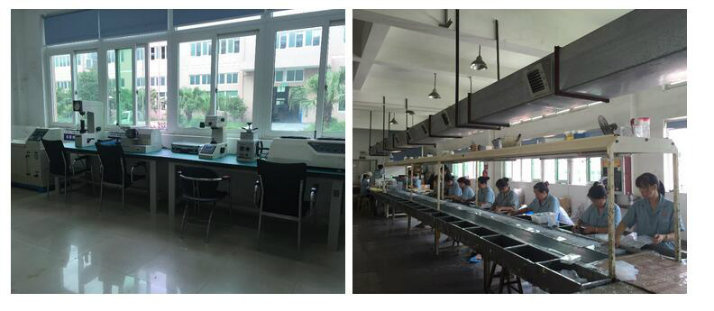

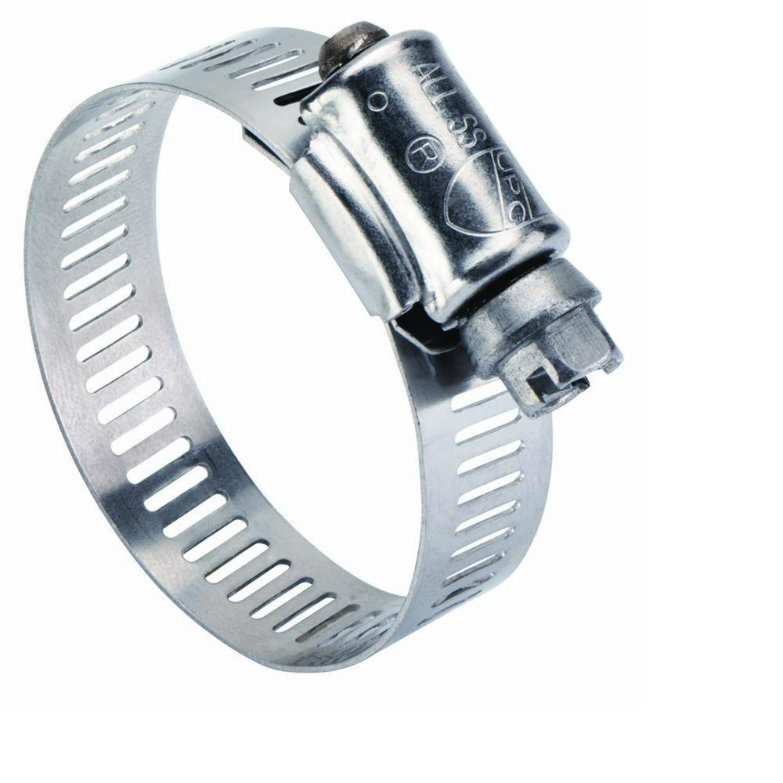

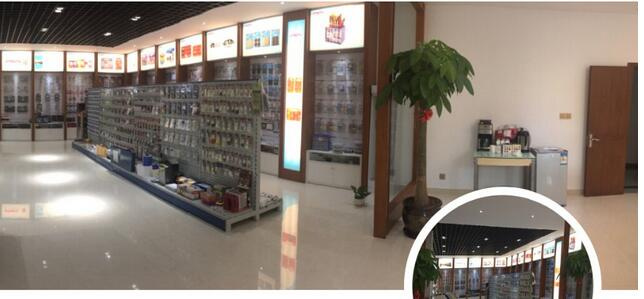

HOSE CLAMP PICTURE OUR WORKSHOP AND OUR SHOW ROOM.
PACKING AS YOUR REQUEST:Contact way :
Hope we can do business. and to be your friends also.
Ningbo GUSHI METAL Prodcuts Co., Ltd is a manufacture and trading company. We have technology and exparence from last 10 years produce the band.
Although technology and invoation has changed the world during the last 100 years. What hasnot changed is the need to put two componets toghther. Gushi stainless steel band clamps and fastening products are now being used in more harsh duty applications around the world. These customer from the world all is our funs. Because they trust so they use. Not all band are created Equally. But we can do.
We Hope Use our Expertise help more and more company solve the challenges and creat more possibility of the further.
Band it is on space Construction Industry and also use many point. Such as Corrosive Environments Hose Applications Marine Industry, Municipal - Traffic, Oil & Gas Industry, Pole & Sign Mounting, Telecommunications Industry Unique Applications
Welcome join us.
