Advertising Outdoor P8 Full Color LED Video Wall for Building Wall
| Price: |
US $ 485-588/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Outdoor-p8 |
| Keywords: |
LED Advertising Screen |
| LED Type: |
SMD3535 |
| Brightness: |
>6200 CD/M2 |
| Viewing Angle: |
140°/140° |
| Best Viewing Distance: |
>=8m |
| Life Span Time: |
100,000 Hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Market Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
FCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625 |
Product Description
Advertising outdoor p8 Full color led video wall for Building wall Product Features
1.Independent cabinet design, to ensure strict IP65 waterproof rating.
2. High uniformity masks can fit modules perfectly, without shadows.
3. Installation is simple for our customers in accordance with the needs of design and installation.
4. Alsonled adopt unique turbine electric cooling system, which ensures the whole box's ventilation and thermal diffusion, without affecting the waterproofing.
5.Support text edit: powerful text edit function, a text editor that supported a variety of languages, especially for that supported a variety of languages, especially for support.
Specification: | Item | Parameter |
| Pixel Pitch | 8mm(H*V) |
| Color | 15625 dots/m2 |
| LED Shape | SMD3535 |
| LED Configuration | 1R1G1B |
| Module Size | 256x128mm |
| Module Resolution | 32 (W)×16 (H)pixels |
| Driving Mode | 1/4 Scan |
| Cabinet Material | Steel or Aluminum |
| Brightness | ≥6200cd/m2 |
| Contrast | 2000:1 |
| View Angle | 120°(horz.), 120° (vert.) |
| Protection Level | 800 W/sq.m |
| Average Power Consumption | 500 W/sq.m |
| Viewing distance | 8-72m |
| Gray Scale | 12-16bits for red,green,blue |
| Colors | 16.7 M |
| Input voltage (AC) | 110V ~ 240V |
| Frame Frequency | 50Hz-75Hz |
| Refresh Rate | ≥1200Hz |
| Brightness Adjustment | 0-100% |
| Operating Temperature | ( -30ºC~+50ºC ) |
| Operating Humidity | 10-90% RH |
| Life Span | 100,000Hours |
| MTBF | ≥10,000Hours |
| Protection Rating | IP65 waterpoof |
| Optional Connectivity | 3/4 G, Wifi control,TCP/IP(LAN) |
| Control Method | Asynchronous or Synchronous |
| Controller Type | LED Editor software |

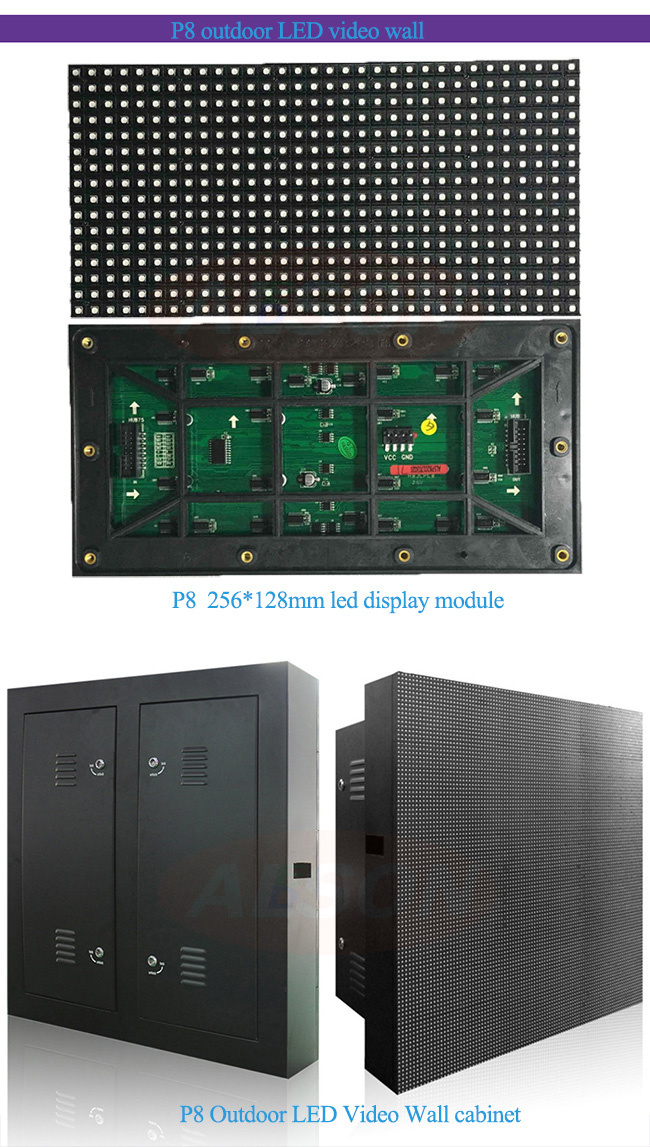

P8 LED Video Wall:

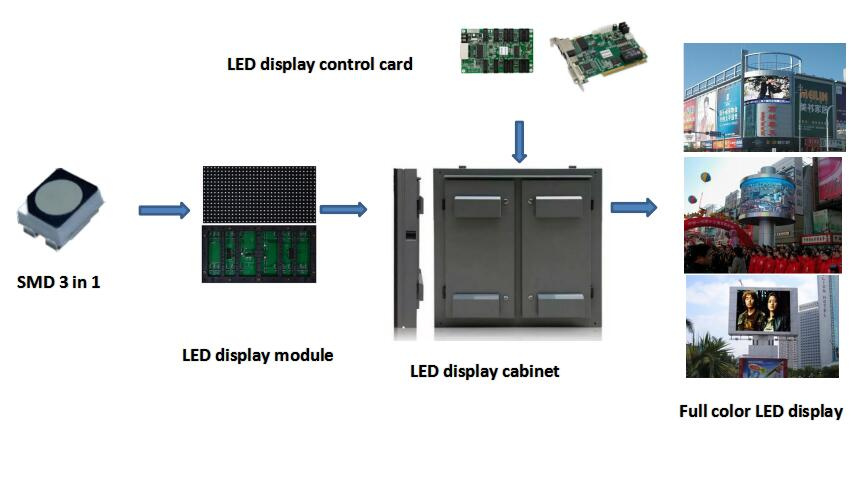

LED structure:
LED screen case:
Product advantages:1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.2) Quality advantage: From material to finished product, from design to produce, we control all steps3) Service advantage: Better service at same situation, better cooperation at same service Package and shipping;

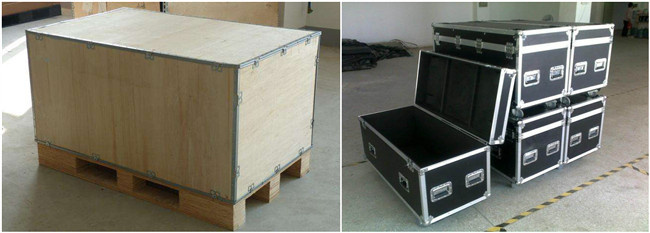

- Anti-shaking wooden case
- Carton box
- Flight case
The transportation can be support by air ,by sea ,or by express and so on.
Company Information:
ShenZhen Alsonled Photoelectric CO., Ltd provide a wide range of standard LED display products as well as customized solutions. We trust in"High Quality + Reasonable Price + Responsible After Service = Successful & Win"; Our products have below advantages.Quality Advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability;Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;Price Advantage:We have very competitive price at the market, also have the same even better quality. Service:1).Your inquiry related to our products or prices will be replied in 24hrs.2).Well-trained and experienced staffs to answer all your inquires in fluent English .3).Your customized screen we can help you to design and put into product.4).Protection of your sales area, ideas of design and all your private information Trade terms: | Item | Content |
| Price | The price is based on EXW Shenzhen |
| Payment: | T/T , usually 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity |
| Delivery time | Production lead time less 20 sqm: 8-15days, more than 50 sqm:20-30days |
| Free sample or not | Sample can be deliveried within 3days |
| Shippment | Shipping port: Shenzhen, Mainland China |
| MOQ | LED Screen 1 sqm / LED module1pcs |
| Guarantee time | 2 - 4 years quality guarantee
|
Certification:
