| Prod Model: |
C41-16 C41-20 C41-25 C41-40 C41-75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Beat Weight: |
16-150kg |
| Forging Forming Method: |
Free Forging |
Product Description
Specifications
1. It is used for forging and shaping work pieces
2. It is easy to operate through controlling the travel of top swage.
Features

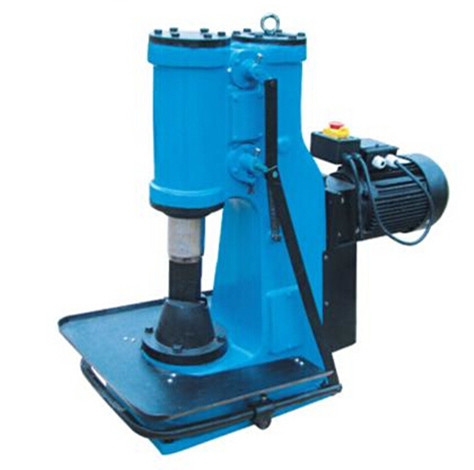

1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 75KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. It is also used for forging in bolster dies.
| Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-75KG | C41-150KG |
| Beat weight(kg) | 16 | 20 | 25 | 40 | 75 | 150 |
| Beat capacity(kgf-m) | 180 | 220 | 270 | 530 | 900 | 1650 |
| Height of working(mm) | 180 | 200 | 240 | 245 | 300 | 370 |
| Beat times/minute | 258 | 270 | 250 | 245 | 210 | 180 |
| Length of rectangular(mm) | 20x20 | 30X30 | 40X40 | 52X52 | 65x65 | 130x130 |
| Length of circular(mm) | ¢20 | ¢35 | ¢45 | ¢68 | ¢85 | ¢145 |
| Power (kW) | 1.5 | 2.2 | 2.2 | 4.5 | 7 | 15 |
| Speed of motor (rpm) | 1440 | 1440 | 1440 | 1440 | 1440 | 1470 |
| Weight of anvil block(kg) | - | 200 | 250 | 400 | 850 | 1800 |
| Packing Size(cm) | 58.5x39x95 | 67X37X105 | 80X41X121 | 108X60X139 | 160x95x195 | 208x124x235 |
| N.W./G.W.(kg) | 240/265 | 500/560 | 760/860 | 1350/1450 | 2800/2900 | 5060/5260 |
