| Prod Model: |
NUTR25X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Original: |
Changzhou City Jiangsu Provinice |
| Producing Capacity: |
5 Million Per Month |
| After Sales Service: |
Two Years |
| Strandard: |
ISO9001-2000GB |
| Lubirication: |
Grease |
| Noise Level: |
Z1 |
| Seal Type: |
Open |
| Clearance: |
C2 |
| Developing Ability: |
Customer's Drawing or Sample Accepted |
| Vibration: |
V1 |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Micro(',≤26mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
Product Description
Needle roller bearing of all kinds are our main product and our advantage.WE SUPPLY YOU THE OTHER MODELS AS FOLLOWS.

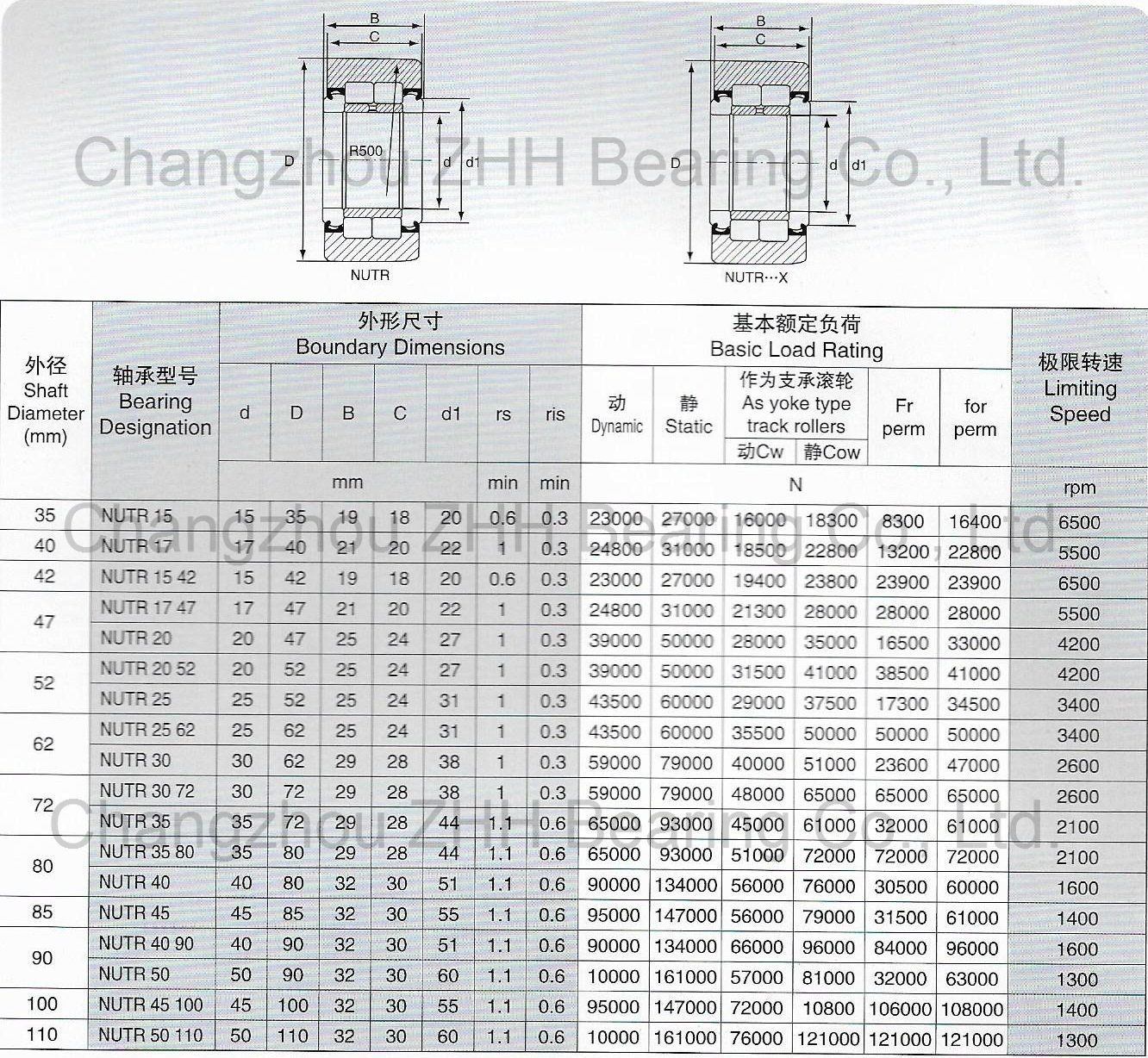

NUTR15(X) NUTR1542(X) NUTR17(X) NUTR1747(X) NUTR20(X) NUTR2052(X) NUTR25(X) NUTR2562(X) NUTR30(X) NUTR3072(X) NUTR35(X) NUTR3580(X) NUTR40(X) NUTR4090(X) NUTR45(X) NUTR45100(X) NUTR50(X) NUTR50110
ZHH This needle roller bearing is suitable for suitable for parts of which the radial size is limited. The surface of shaft journal fitted with it is acted directly as rolling surface. It is requested that the surface hardness of shaft journal be no less than HRC60 and the surface roughness Ra value, no more than 0.63μm. This type of bearing does not limited in axial displacement for shaft or shell, high limit speed
Nutr4080 Roller Bearing with High Precision of Good Price (NUTR2562)
Needle roller bearing of all kinds are our main product and our advantage.WE SUPPLY YOU THE OTHER MODELS AS FOLLOWS.
NUTR15(X) NUTR1542(X) NUTR17(X) NUTR1747(X) NUTR20(X) NUTR2052(X) NUTR25(X) NUTR2562(X) NUTR30(X) NUTR3072(X) NUTR35(X) NUTR3580(X) NUTR40(X) NUTR4090(X) NUTR45(X) NUTR45100(X) NUTR50(X) NUTR50110(X)| NUTR Series |
| Item | Weight(g) | d(mm) | D(mm) | B(mm) |
| NUTR15 | 99 | 15 | 35 | 19 |
| NUTR1542 | 158 | 15 | 42 | 19 |
| NUTR17 | 147 | 17 | 40 | 21 |
| NUTR1747 | 220 | 17 | 47 | 21 |
| NUTR20 | 245 | 20 | 47 | 25 |
| NUTR2052 | 321 | 20 | 52 | 25 |
| NUTR25 | 281 | 25 | 52 | 25 |
| NUTR2562 | 450 | 25 | 62 | 25 |
| NUTR30 | 465 | 30 | 62 | 29 |
| NUTR3072 | 697 | 30 | 72 | 29 |
| NUTR35 | 630 | 35 | 72 | 29 |
| NUTR3580 | 836 | 35 | 80 | 29 |
| NUTR40 | 816 | 40 | 80 | 32 |
| NUTR4090 | 1129 | 40 | 90 | 32 |
| NUTR45 | 883 | 45 | 85 | 32 |
| NUTR45100 | 1396 | 45 | 100 | 32 |
| NUTR50 | 950 | 50 | 90 | 32 |
| NUTR50110 | 1690 | 50 | 110 | 32 |
| NATR Series |
| Item | Weight(g) | d(mm) | D(mm) | B(mm) |
| NATR5 | 14 | 5 | 16 | 12 |
| NATR6 | 20 | 6 | 19 | 12 |
| NATR8 | 41 | 8 | 24 | 15 |
| NATR10 | 64 | 10 | 30 | 15 |
| NATR12 | 71 | 12 | 32 | 15 |
| NATR15 | 101 | 15 | 35 | 19 |
| NATR17 | 144 | 17 | 40 | 21 |
| NATR20 | 246 | 20 | 47 | 25 |
| NATR25 | 275 | 25 | 52 | 25 |
| NATR30 | 470 | 30 | 62 | 29 |
| NATR..PP Series |
| Item | Weight(g) | d(mm) | D(mm) | B(mm) |
| NATR5 PP | 14 | 5 | 16 | 12 |
| NATR6 PP | 19 | 6 | 19 | 12 |
| NATR8 PP | 38 | 8 | 24 | 15 |
| NATR10 PP | 64 | 10 | 30 | 15 |
| NATR12 PP | 66 | 12 | 32 | 15 |
| NATR15 PP | 95 | 15 | 35 | 19 |
| NATR17 PP | 139 | 17 | 40 | 21 |
| NATR20 PP | 236 | 20 | 47 | 25 |
| NATR25 PP | 271 | 25 | 52 | 25 |
| NATR30 PP | 444 | 30 | 62 | 29 |
| NATR35 PP | 547 | 35 | 72 | 29 |
| NATR40 PP | 795 | 40 | 80 | 32 |
| NATR50 PP | 867 | 50 | 90 | 32 |
The YOKE type track roller bearing NUTR2052 are manufactured according to the Unified Parameters of rolling bearings. This series can be supplied both with a retaining cap which can therefore be relubricated and a sealed types.
These YOKE type track roller bearing NUTR2052 are greased with grade "3" lithium base grease. For special using, such as at high temperatures, please consult us.
The uses is recommended in all applications where heavy and sudden loads are foreseen.
| Precision | P0,p6,p5 |
| Tolerance grade | GB/T307.1-205 |
| Greese/Oil | As you requirement, such as SRL ,PS2, Alvania R12 and so on |
| Quality standard | ISO 9001:2008 standard |
| features | long life with high quality |
| low noise with strict controlling of bearing quality |
| high load by the advanced high-technical design |
| competitive price |
| OEM service to meet your requirements |
| international standard .first- class in china |
| manufacture process | We have complete process for the production and quality assurance to make sure our products can meet your requirement.
1.Assembly
2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
9.Product packaging |
| sample | available |
| MOQ | ONE |
| Delivery Date | As soon as possible for your requirement |
| Payment Term | A: 30% T/T in Advance, 70% T/T Against Copy Of B/L |
| | 30% T/T in adwance, 70% T/T before delivery |
| | B: 100% L/C At Sight |
| | C: 100% Western Union or Paypal in advance.(specially for air shipment or small amount) |
| Brand | ZHH or OEM,etc. |
| Packaging Details: | 1.Neutral packing(neutral plastic bag+neutral tan box+neutral carton+Plywood pallets 2.Color box packing(plastic bag+color box+carton)+Plywood pallets 3.As the clients' requirement |
| shipping | 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, )
3) More than 200 KGS, we will send by sea. ( Cheapest )
|
| port of shippment by sea | shanghai ningbo qingdao |
WHY CHOOSE US 1 . QUALITY CONTROL : More than 10 years of industry experience,and the factory equipment is from JAPAN AND GERMAN,100% test the quality before delivery. 2 . SUPPORT : 24-hour response in english on line and provide technical support. 3 . RICH STOCK : Huge stock goods ensure you Very Short Delivery Time(Generally 1- 3 days after payment for stocks. 4 . GOOD AFTER SALES SERIVICE : (One year quality warranty, money can be deducted or refund if any quality problem). 5 . PROFESSIONAL : Well-trained & experienced staff are to answer all your inquiries in English of course. 6 . CONFIDENTIAL : Your business relationship with us will be confidential to any third party. 7 . GOOD MATERAILS : We only use the best steel on the market. 8 . POWERFUL PARTNER : Our Bearings are mated with many well-known enterpriss, such as Japan Mabuchimotor, Germany BBS, America Leeson globally and domestic. Our Bearings are exported to more than 120 countries and regions including US, Italy, Germany, Egypt an the Middle East. 9 . TESTING : 100% test of the quality and packing will be done before delivery.10. OVERSEAS EXHIBITIONS : We have more than five chances to attend exhibitions overseas , which means that we have the ability of providing professional suggestions and best service for our clients; OUR PROMISES Product quality standards are guaranteed. Our products have got ISO 9001 & CE international quality management system. They all produced with best advanced technology.We are proactive and we offer only products complying with top standards of quality and warranty.

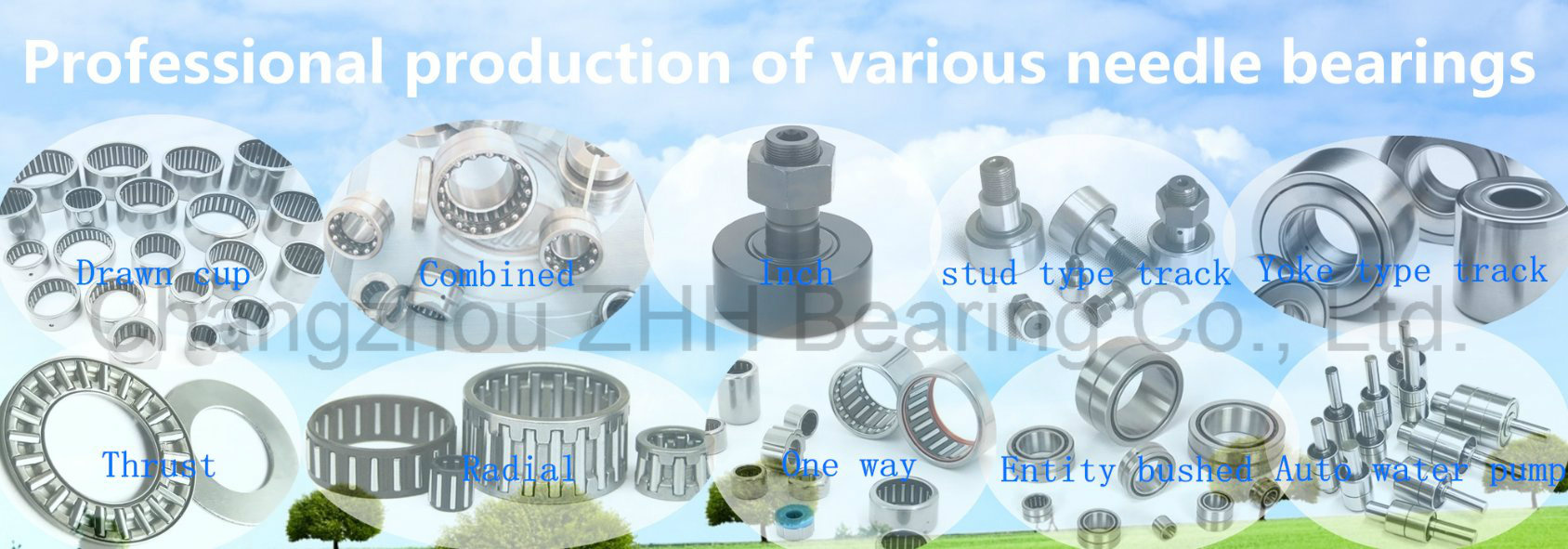

Changzhou ZHH Bearing C0., Ltd. Is a big manufacturer specialized in Producing Various NEEDLE BEARING, Such as
1. Needle roller bearing
2. Entity bushed needle roller bearing
3. Stud type track roller bearing
4. Drawn cup needle roller bearing
5. Radial needle roller bearing
6. Thrust needle bearing
7. Combined needle roller bearing
8. Needle roller clutch bearing
More than 3000 standard models of needle bearing with over 1000 designations of metric and inch series are regularly manufactured and widely used for motorcycles, electric and air powered tooling, printers, light and textile industries, machines, Construction machines, Cars Trucks, and office equipment in domestic and worldwide markets. In addition, special designed bearings are also provided in accordance upon customers' requirement for various applications. We have exported our products to Korea, Iran, Turkey, , Romania, Russia, Italy, , the USA, Canada, India. Brazil., Indonesia, the Philippines, Thailand, Duba In Mexico, etc.
